AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )2DS,4DS

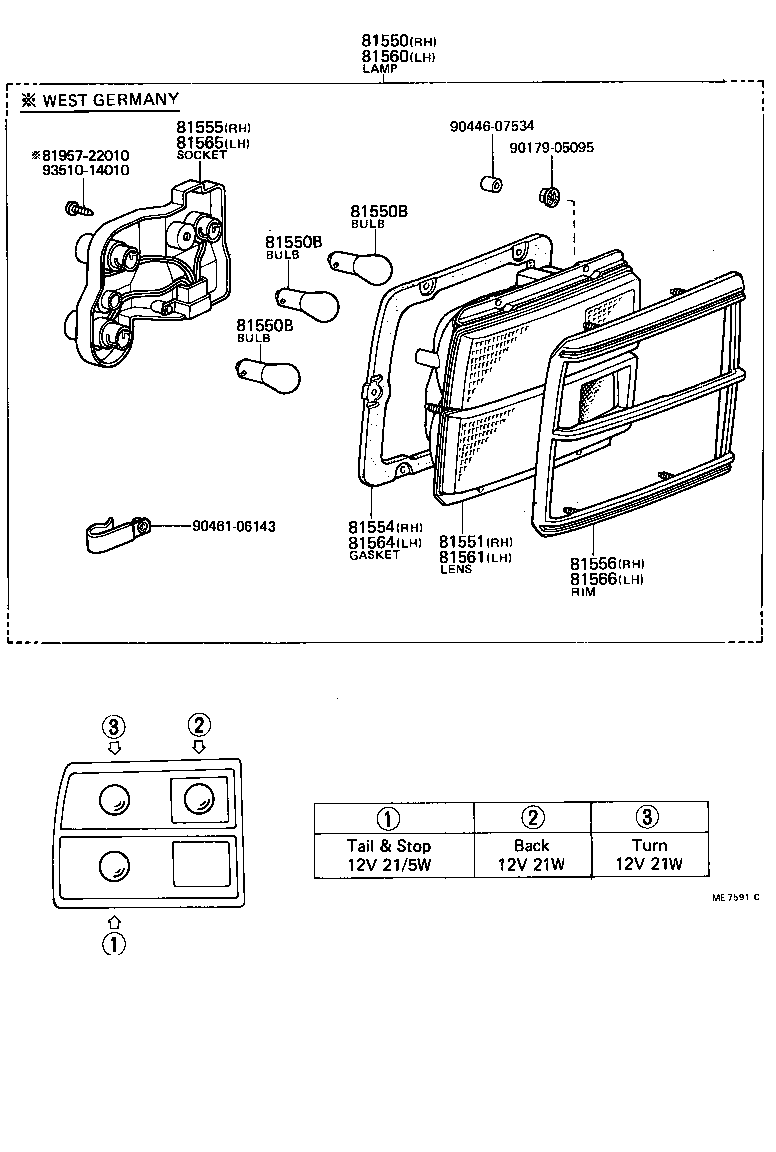

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81550B 81551 81554 81555 81556 81560 81561 81564 81565 81566 8195722010 9017905095 9044607534 9046106143 9351014010
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-80023

AL11..2DS,4DS

 1
81550-80045

AL11..(2DS,4DS)..EUR

WEST GERMANY SPEC

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

AL11

12V 21W,12V 21W

 4
99132-21210

AL11

12V 21/5W,12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

AL11

12V 21W,12V 21W

 4
99132-21210

AL11

12V 21/5W,12V 21/5W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

AL11

12V 21W,12V 21W

 4
99132-21210

AL11

12V 21/5W,12V 21/5W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-16130

AL11..2DS,4DS

AMBER-RED-CLEAR

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81552-16090

AL11..2DS,4DS

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-16130

AL11..(2DS,4DS)..EUR

WEST GERMANY SPEC

 1
81555-16130

AL11..2DS,4DS

 1
81555-16090

AL11..2DS,4DS

 1
81556 - RIM, REAR COMBINATION LAMP, RH
81556-16100

AL11..2DS,4DS

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-80025

AL11..2DS,4DS

 1
81560-80047

AL11..(2DS,4DS)..EUR

WEST GERMANY PEC

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-16130

AL11..2DS,4DS

AMBER-RED-CLEAR

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81562-16090

AL11..2DS,4DS

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-16090

AL11..2DS,4DS

 1
81565-16130

AL11..2DS,4DS

 1
81565-16130

AL11..(2DS,4DS)..EUR

WEST GERMANY SPEC

 1
81566 - RIM, REAR COMBINATION LAMP, LH
81566-16100

AL11..2DS,4DS

 1
Common parts
81957-22010
90179-05095
90446-07534
90461-06143
93510-14010
