AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )LHD

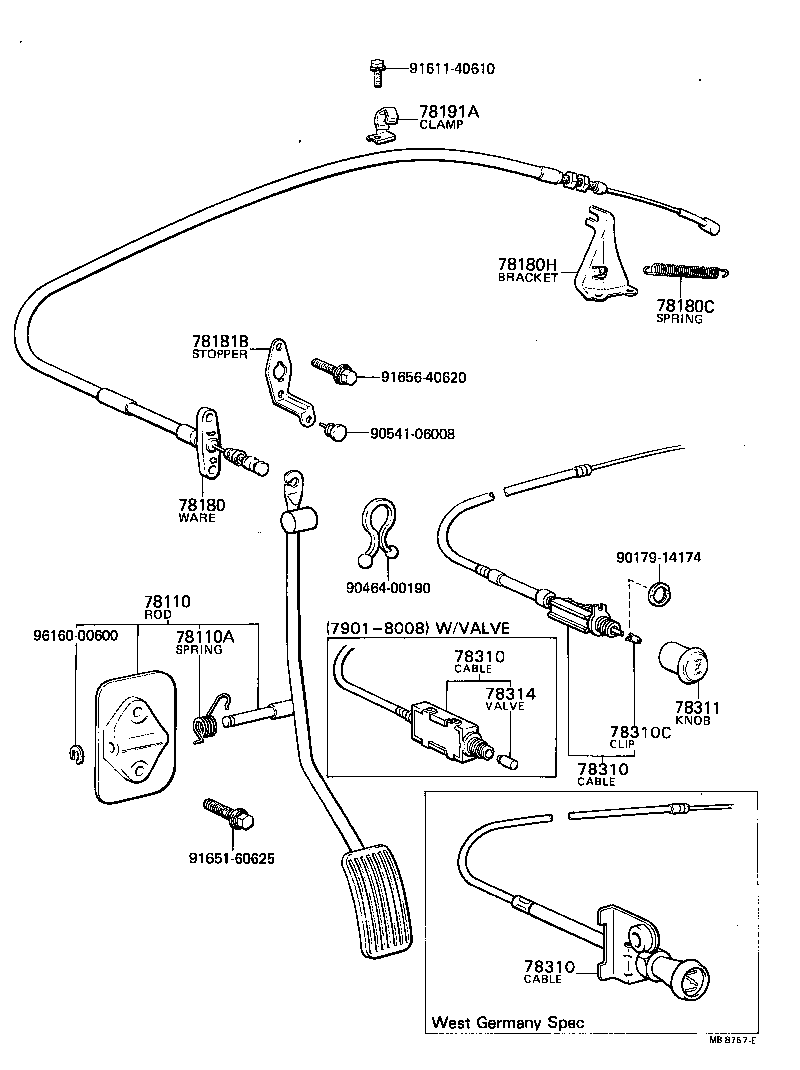

Click highlighted areas on diagram

diagram 78110 78110A 78180 78180C 78180H 78181B 78191A 78310 78310 78310 78310C 78311 78314 9017914174 9046400190 9054106008 9161140610 9165160625 9165640620 9616000600
Part # Description Qty Price
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-16020

AL11..LHD

 1
78120-16021

AL11..LHD

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-18014

AL11..LHD

 1
78180 - WIRE ASSY, ACCELERATOR
78180-16030

AL11..LHD

 1
78180C - SPRING, TENSION (FOR ACCELERATOR WIRE)
90507-12004

AL11

 1
90507-12004

AL11..LHD

 1
78180H - BRACKET, ACCELERATOR CONTROL CABLE
78184-16020

AL11..LHD

 1
78181B - STOPPER, ACCELERATOR IDLE ADJUSTING
78181-16010

AL11

 1
78191A - CLAMP (FOR ACCELERATOR WIRE SET)
78183-16010

AL11..LHD

 1
78310 - CABLE ASSY, CHOKE
84506-16010

AL11..LHD

 1
78310-16020

AL11..EUR

WEST GERMANY SPEC

 1
84506-16012

AL11..LHD

 1
84506-16011

AL11..LHD

 1
78310-16030

AL11..EUR

WEST GERMANY SPEC

 1
78310 - CABLE ASSY, CHOKE
84506-16010

AL11..LHD

 1
78310-16020

AL11..EUR

WEST GERMANY SPEC

 1
84506-16012

AL11..LHD

 1
84506-16011

AL11..LHD

 1
78310-16030

AL11..EUR

WEST GERMANY SPEC

 1
78310 - CABLE ASSY, CHOKE
84506-16010

AL11..LHD

 1
78310-16020

AL11..EUR

WEST GERMANY SPEC

 1
84506-16012

AL11..LHD

 1
84506-16011

AL11..LHD

 1
78310-16030

AL11..EUR

WEST GERMANY SPEC

 1
78310C - CLIP (FOR CHOKE CABLE)
78312-12010

AL11

 1
78311 - KNOB, CHOKE CONTROL CABLE
78311-12030

AL11..LHD

 1
78311-12031

AL11..LHD

 1
84811-16010

AL11..LHD

 1
78314 - BULB, CHOKE WARNING
90981-11009

AL11..LHD

 1
Common parts
90179-14174
90464-00190
90541-06008
91611-40610
91651-60625
91656-40620
96160-00600
