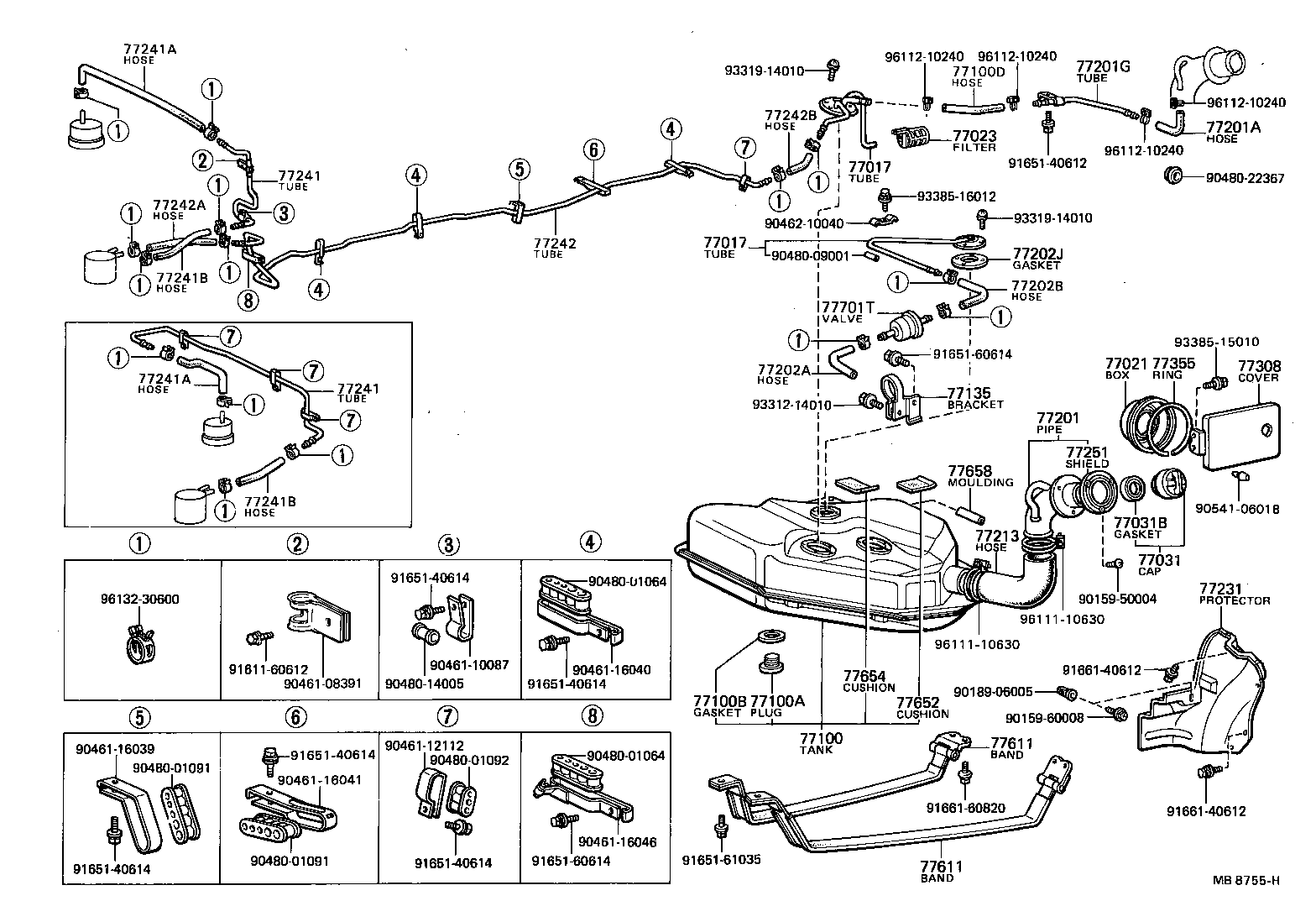

AL11L-ZDMRSW (1979)
Toyota Tercel
(7901- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77018-16010 |
AL11 EMISSION TUBE |
1 | ||
| 77017-16020 |
AL11 MAIN OR SUCTION TUBE |
1 | ||
| 77017-16021 |
AL11 MAIN OR SUCTION TUBE |
1 | ||
| 77018-16011 |
AL11 EMISSION TUBE |
1 | ||
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77018-16010 |
AL11 EMISSION TUBE |
1 | ||
| 77017-16020 |
AL11 MAIN OR SUCTION TUBE |
1 | ||
| 77017-16021 |
AL11 MAIN OR SUCTION TUBE |
1 | ||
| 77018-16011 |
AL11 EMISSION TUBE |
1 | ||
| 77021 - BOX ASSY, FUEL TANK INLET | ||||
| 77292-16011 |
AL11 |
1 | ||
| 77292-16010 |
AL11 |
1 | ||
| 77292-16012 |
AL11 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-12050 |
AL11 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-14070 |
AL11 |
1 | ||
| 77310-12090 |
AL11 |
1 | ||
| 77310-12100 |
AL11 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
AL11 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-19215 |
AL11 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
AL11 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-24047 |
AL11 |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22002 |
AL11 L=200 |
1 | ||
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-22020 |
AL11 |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-16010 |
AL11 |
1 | ||
| 77201-16011 |
AL11 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-22010 |
AL11 L=175 |
1 | ||
| 77201G - TUBE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 77013-16010 |
AL11 |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 95332-06011 |
AL11 *H,L=110 |
1 | ||
| 95332-06020 |
AL11 *H,L=110 |
1 | ||
| 77202B - HOSE, FUEL, NO.2 (FOR BREATHER TUBE) | ||||
| 95332-06018 |
AL11 *H,L=180 |
1 | ||
| 95332-06020 |
AL11 *H,L=180 |
1 | ||
| 77202J - GASKET (FOR BREATHER TUBE) | ||||
| 77179-14020 |
AL11 |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-16010 |
AL11 |
1 | ||
| 77213-16020 |
AL11 |
1 | ||
| 77231 - PROTECTOR, INLET TUBE | ||||
| 77277-16010 |
AL11 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77252-16020 |
AL11..LHD |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77252-16020 |
AL11..LHD |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06028 |
AL11..LHD *H,L=280 |
1 | ||
| 95332-06030 |
AL11..LHD *H,L=280 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06028 |
AL11..LHD *H,L=280 |
1 | ||
| 95332-06030 |
AL11..LHD *H,L=280 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06030 |
AL11..LHD *H,L=260 |
1 | ||
| 95331-06026 |
AL11..LHD *H,L=260 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-06030 |
AL11..LHD *H,L=260 |
1 | ||
| 95331-06026 |
AL11..LHD *H,L=260 |
1 | ||
| 77242 - TUBE, FUEL MAIN, NO.2 | ||||
| 77251-16010 |
AL11 |
1 | ||
| 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) | ||||
| 95332-06030 |
AL11 *H,L=220 |
1 | ||
| 95332-06022 |
AL11 *H,L=220 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 95332-06020 |
AL11 *H,L=110 |
1 | ||
| 95332-06011 |
AL11 *H,L=110 |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77291-22010 |
AL11 |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-16040 |
AL11..2DS,4DS |
1 | ||
| 77355 - RING, INLET BOX | ||||
| 77391-16010 |
AL11 |
1 | ||
| 77391-16011 |
AL11 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77602-16010 |
AL11 LH |
1 | ||
| 77601-16010 |
AL11 RH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77602-16010 |
AL11 LH |
1 | ||
| 77601-16010 |
AL11 RH |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-16010 |
AL11 |
4 | ||
| 77651-16010 |
AL11 |
3 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-16010 |
AL11 60X130 |
2 | ||
| 77652-16020 |
AL11 120X135 |
1 | ||
| 77658 - MOULDING, FUEL TANK EDGE | ||||
| 77658-16010 |
AL11 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
AL11 |
1 | ||
| Common parts | ||||
| 90159-50004 | ||||
| 90159-60008 | ||||
| 90189-06005 | ||||
| 90461-08391 | ||||
| 90461-10087 | ||||
| 90461-12112 | ||||
| 90461-16039 | ||||
| 90461-16040 | ||||
| 90461-16041 | ||||
| 90461-16046 | ||||
| 90462-10040 | ||||
| 90480-01064 | ||||
| 90480-01091 | ||||
| 90480-01092 | ||||
| 90480-09001 | ||||
| 90480-14005 | ||||
| 90480-22367 | ||||
| 90541-06018 | ||||
| 91611-60612 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-60614 | ||||
| 91651-61035 | ||||
| 91661-40612 | ||||
| 91661-60820 | ||||
| 93312-14010 | ||||
| 93319-14010 | ||||
| 93385-15010 | ||||
| 93385-16012 | ||||
| 96111-10630 | ||||
| 96112-10240 | ||||
| 96132-30600 | ||||
