AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901-8008)

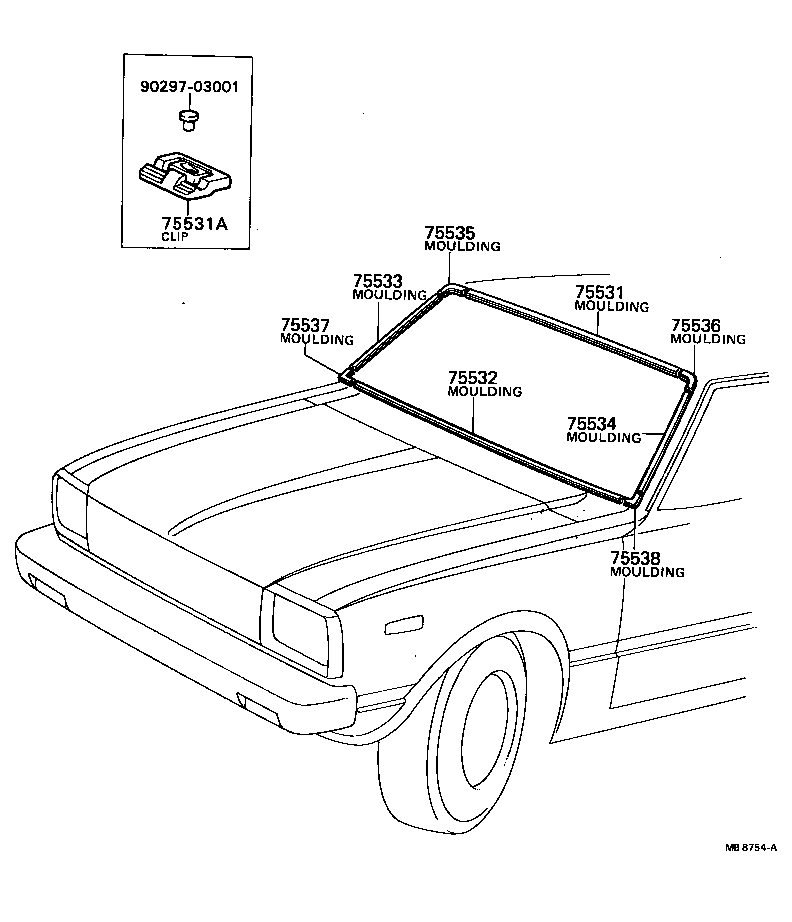

Click highlighted areas on diagram

diagram 75531 75531A 75532 75533 75534 75535 75536 75537 75538 9029703001
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-16010

AL11

 1
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75545-16010

AL11

 28
75532 - MOULDING, WINDSHIELD, LOWER
75535-16010

AL11

 1
75535-16011

AL11

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-16010

AL11

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-16010

AL11

 1
75535 - MOULDING, WINDSHIELD CORNER, UPPER RH
75541-16011

AL11

 1
75536 - MOULDING, WINDSHIELD CORNER, UPPER LH
75541-16011

AL11

 1
75537 - MOULDING, WINDSHIELD CORNER, LOWER RH
75543-16010

AL11

 1
75538 - MOULDING, WINDSHIELD CORNER, LOWER LH
75544-16010

AL11

 1
Common parts
90297-03001

(8008- )

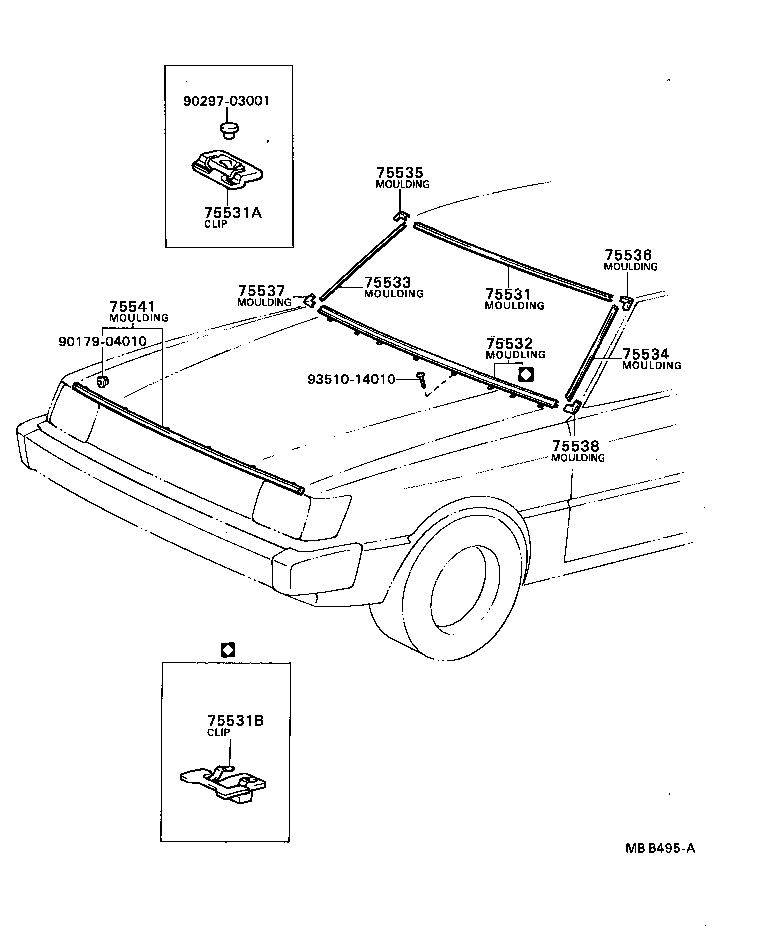

Click highlighted areas on diagram

diagram 75531 75531A 75531B 75532 75533 75534 75535 75536 75537 75538 75541 9017904010 9029703001 9351014010
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-16010

AL11

 1
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75545-16010

AL11

 28
75531B - CLIP, WINDSHIELD MOULDING SET, NO.2
75546-16010

AL11

 1
75532 - MOULDING, WINDSHIELD, LOWER
75535-16010

AL11

 1
75535-16011

AL11

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-16010

AL11

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-16010

AL11

 1
75535 - MOULDING, WINDSHIELD CORNER, UPPER RH
75541-16011

AL11

 1
75536 - MOULDING, WINDSHIELD CORNER, UPPER LH
75541-16011

AL11

 1
75537 - MOULDING, WINDSHIELD CORNER, LOWER RH
75543-16010

AL11

 1
75538 - MOULDING, WINDSHIELD CORNER, LOWER LH
75544-16010

AL11

 1
75541 - MOULDING, HOOD, FRONT
75770-19215

AL11

 1
Common parts
90179-04010
90297-03001
93510-14010
