AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901-8008)

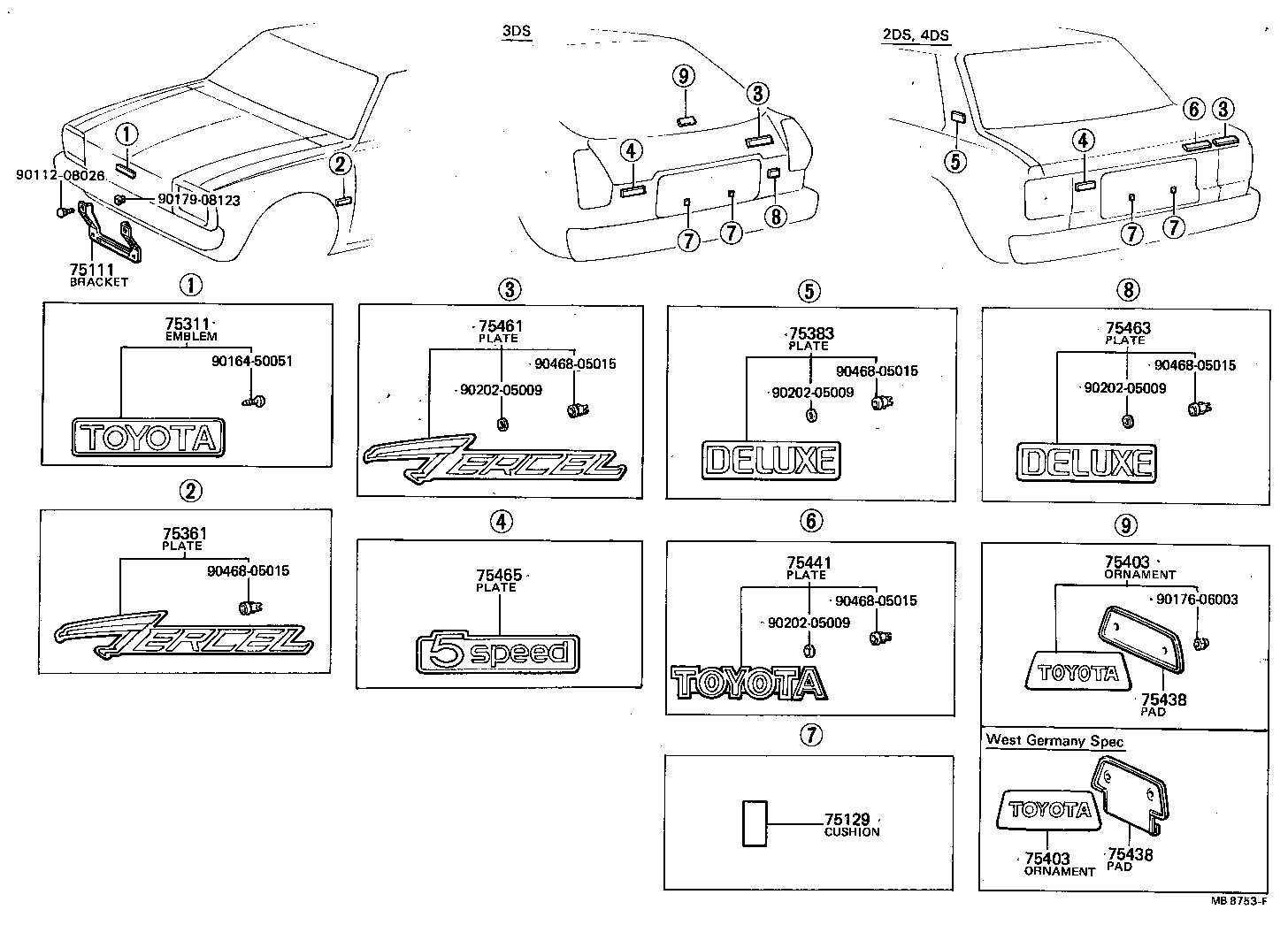

Click highlighted areas on diagram

diagram 75111 75129 75311 75361 75383 75403 75403 75438 75438 75441 75461 75463 75465 9011208026 9016450051 9017606003 9017908123 9020205009 9020205009 9020205009 9020205009 9046805015 9046805015 9046805015 9046805015 9046805015
Part # Description Qty Price
75111 - BRACKET, FRONT LICENSE PLATE
75111-16010

AL11..(2DS,4DS)..EUR

WEST GERMANY SPEC

 1
75129 - CUSHION, REAR LICENSE PLATE
75129-22010

AL11

 2
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-19686

AL11

 1
75311-19685

AL11

 1
75361 - PLATE, FRONT FENDER NAME, NO.1 (MODEL MARK)
75361-16030

AL11

TERCEL

 2
75441 - PLATE, REAR NAME, NO.1
75442-16020

AL11..2DS,4DS

TOYOTA

 1
75442-16021

AL11..2DS,4DS

TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-16021

AL11

TERCEL

 1
75441-16030

AL11

TERCEL

 1
75465 - PLATE, REAR NAME, NO.5 (MECHANISM)
75441-30040

AL11..5F

5SPEED

 1
Common parts
90112-08026
90164-50051
90176-06003
90179-08123
90202-05009
90468-05015

(8008- )

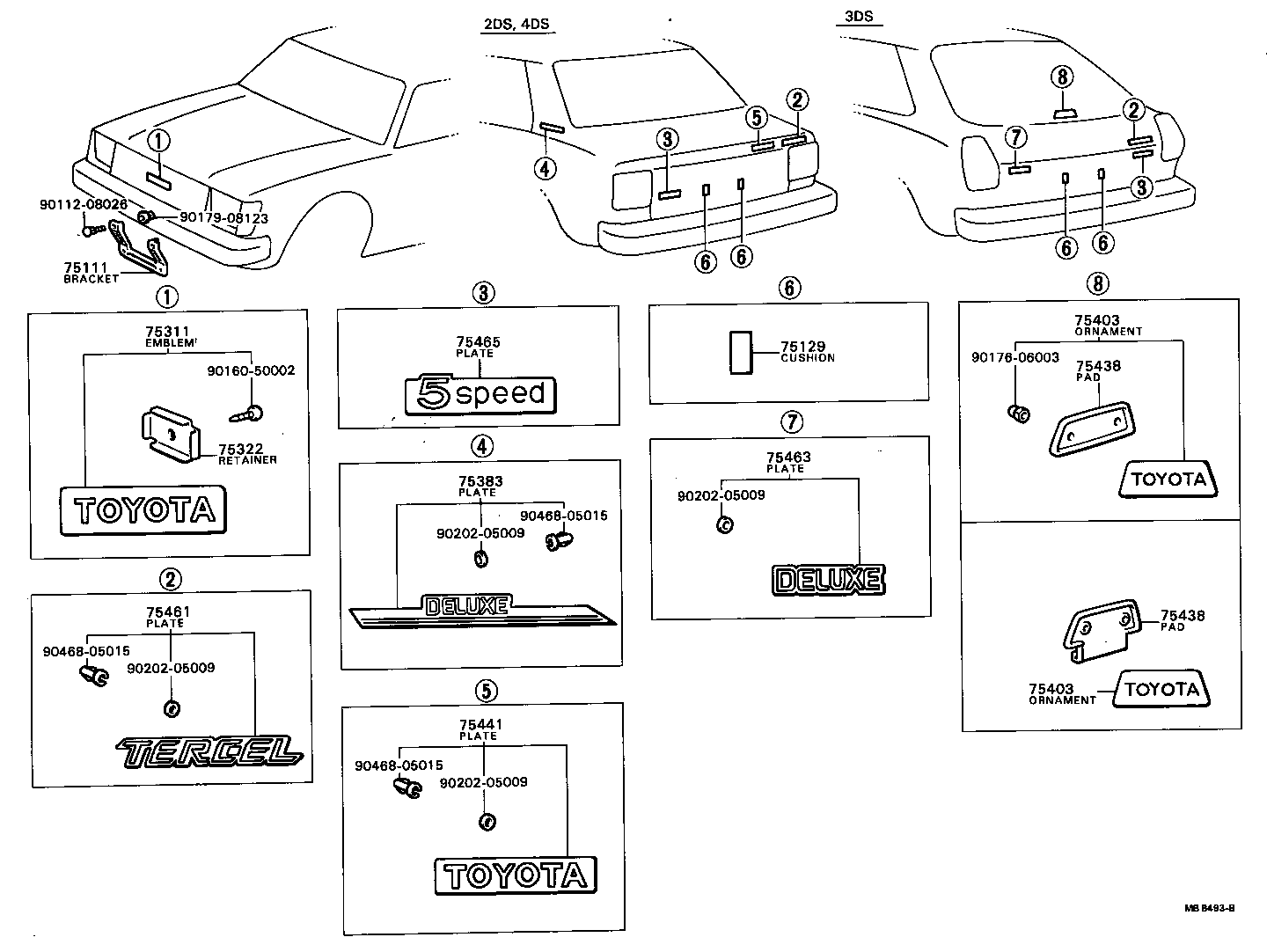

Click highlighted areas on diagram

diagram 75111 75129 75311 75322 75383 75403 75403 75438 75438 75441 75461 75463 75465 9011208026 9016050002 9017606003 9017908123 9020205009 9020205009 9020205009 9020205009 9046805015 9046805015 9046805015
Part # Description Qty Price
75111 - BRACKET, FRONT LICENSE PLATE
75111-16010

AL11..(2DS,4DS)..EUR

WEST GERMANY SPEC

 1
75129 - CUSHION, REAR LICENSE PLATE
75129-22010

AL11

 2
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-19686

AL11

 1
75311-19685

AL11

 1
75322 - RETAINER, RADIATOR GRILLE NAME PLATE
75324-16021

AL11

 1
75441 - PLATE, REAR NAME, NO.1
75442-16020

AL11..2DS,4DS

TOYOTA

 1
75442-16021

AL11..2DS,4DS

TOYOTA

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-16021

AL11

TERCEL

 1
75441-16030

AL11

TERCEL

 1
75465 - PLATE, REAR NAME, NO.5 (MECHANISM)
75441-30040

AL11..5F

5SPEED

 1
Common parts
90112-08026
90160-50002
90176-06003
90179-08123
90202-05009
90468-05015
