AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )

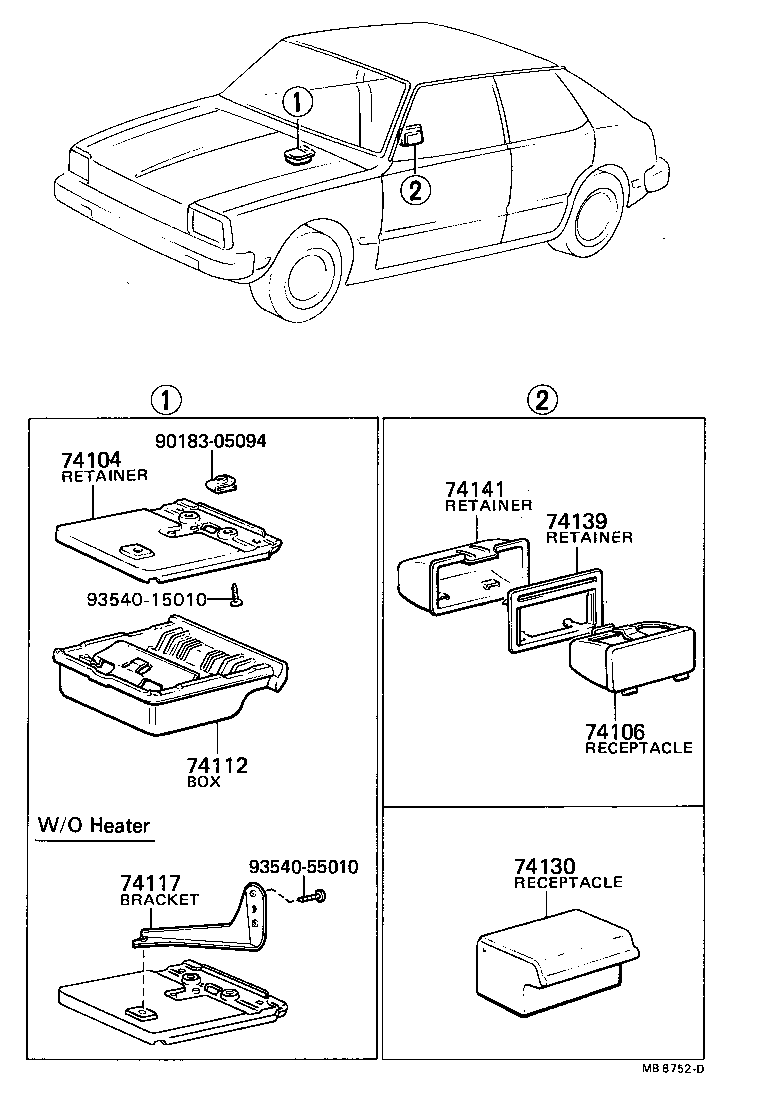

Click highlighted areas on diagram

diagram 74104 74106 74112 74117 74130 74139 74141 9018305094 9354015010 9354055010
Part # Description Qty Price
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-16010

AL11

 1
74106 - RECEPTACLE SUB-ASSY, ASH, NO.2
74105-1001001

AL11..(2DS,3DS)..STD

BLACK,BLACK,TRIM2#

 1
74105-1001006

AL11..(2DS,3DS)..STD

LIGHT BROWN,BROWN,TRIM4#

 1
74105-1001004

AL11..(2DS,3DS)..STD

BLUE,BLUE,TRIM8#

 1
74105-1001016

AL11..(2DS,3DS)..STD

LIGHT BROWN,BROWN,TRIM4#

 1
74112 - BOX, ASH RECEPTACLE, NO.1
74102-1601006

AL11

LIGHT BROWN,BROWN,TRIM4#

 1
74102-1601004

AL11

BLUE,BLUE,TRIM8#

 1
74102-1601001

AL11

BLACK,BLACK,TRIM2#

 1
74102-1601016

AL11

LIGHT BROWN,BROWN,TRIM4#

 1
74139 - RETAINER, REAR ASH RECEPTACLE, OUTER
74135-10030

AL11..(2DS,3DS)..STD

 1
74141 - RETAINER, REAR ASH RECEPTACLE, INNER
74137-10030

AL11..(2DS,3DS)..STD

 1
Common parts
90183-05094
93540-15010
93540-55010
