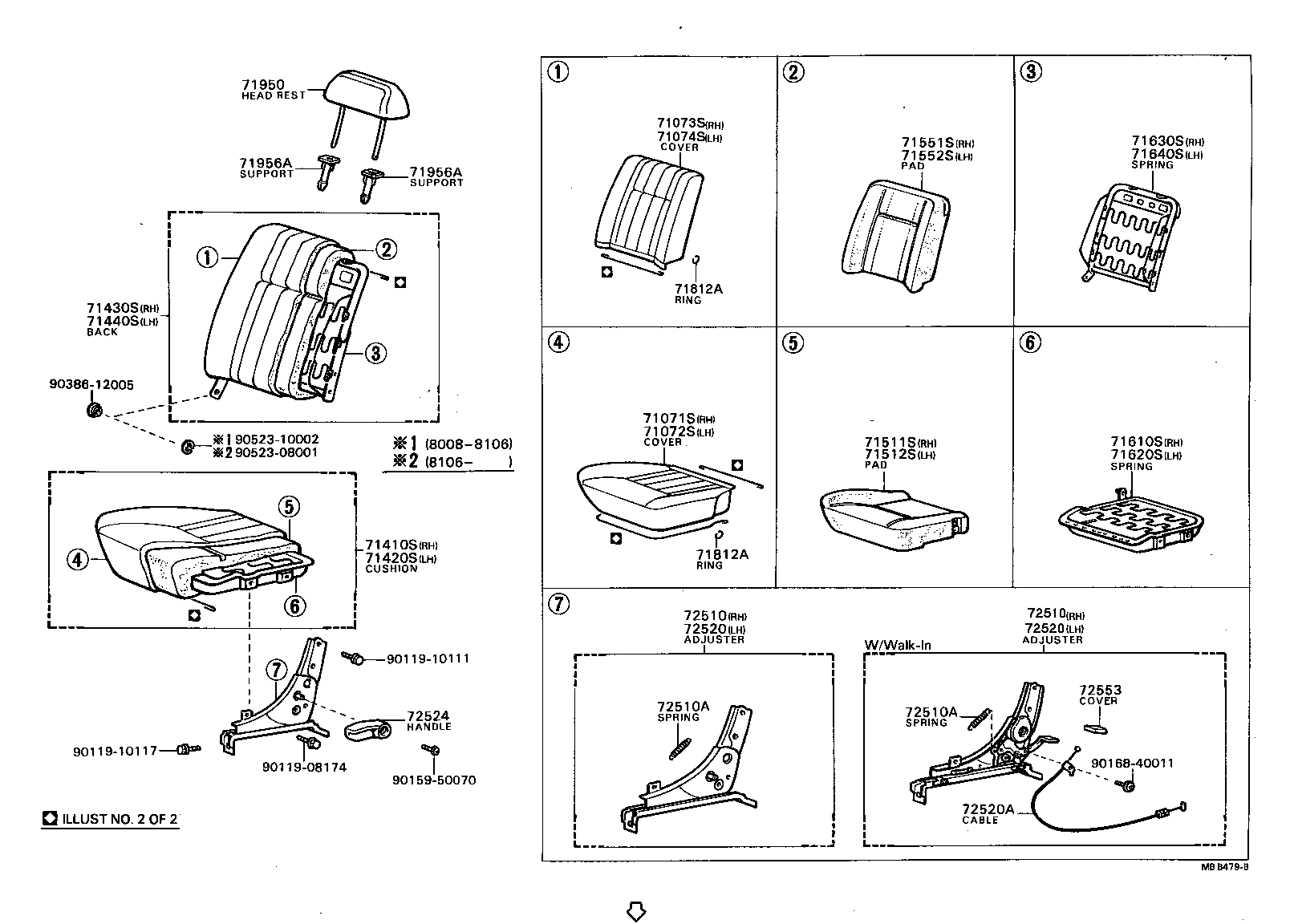

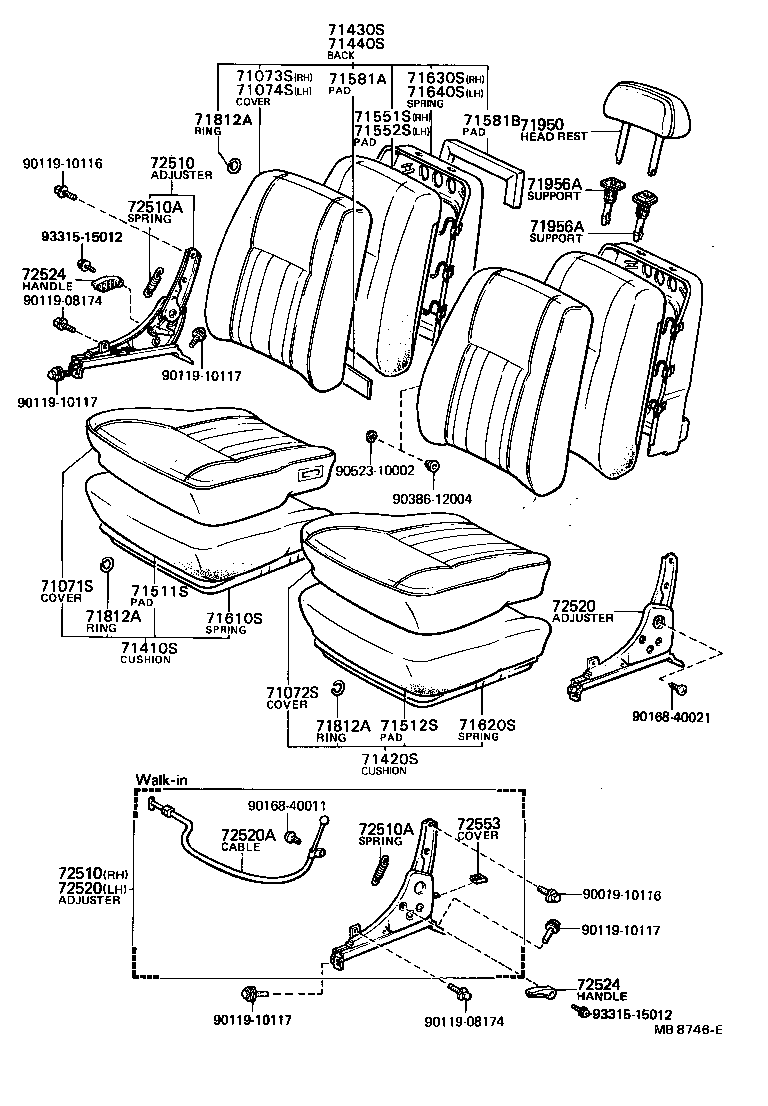

AL11L-ZDMRSW (1979)
Toyota Tercel
(7901-8008)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1609001 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-1622001 |
AL11..2DS..5F..STD;AL11..3DS..4F..STD..EUR;AL11..(3DS,4DS)..5F..DLX FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-1622004 |
AL11..2DS..5F..STD;AL11..3DS..4F..STD..EUR;AL11..(3DS,4DS)..5F..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1609006 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1610004 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1610006 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1610001 |
AL11 FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-1609004 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1609204 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1610203 |
AL11 FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71071-1609206 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1609201 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-1610206 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1610204 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1609004 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-1622001 |
AL11..2DS..5F..STD;AL11..3DS..4F..STD..EUR;AL11..(3DS,4DS)..5F..DLX FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71072-1622004 |
AL11..2DS..5F..STD;AL11..3DS..4F..STD..EUR;AL11..(3DS,4DS)..5F..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-1609204 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-1610001 |
AL11 FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71072-1610004 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-1609201 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71072-1610204 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-1610203 |
AL11 FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71072-1609001 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71072-1610006 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71072-1609006 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71072-1609206 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71072-1610206 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1623004 |
AL11..2DS..5F..STD;AL11..3DS..4F..STD..EUR;AL11..(3DS,4DS)..5F..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1609004 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1606006 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1606004 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1623001 |
AL11..2DS..5F..STD;AL11..3DS..4F..STD..EUR;AL11..(3DS,4DS)..5F..DLX FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1609006 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1609101 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1606001 |
AL11 FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1622004 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1609106 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1622006 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1622003 |
AL11 FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71073-1609104 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1609001 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1623001 |
AL11..2DS..5F..STD;AL11..3DS..4F..STD..EUR;AL11..(3DS,4DS)..5F..DLX FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1609001 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1606001 |
AL11 FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1623004 |
AL11..2DS..5F..STD;AL11..3DS..4F..STD..EUR;AL11..(3DS,4DS)..5F..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1609004 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1606004 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1609106 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1609006 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1622006 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1622003 |
AL11 FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71073-1606006 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1622004 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1609104 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1609101 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1609001 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1609006 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1609004 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1609201 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1610006 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1610001 |
AL11 FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1610206 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1609204 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1610203 |
AL11 FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71410-1609206 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1610004 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1610204 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1609006 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71420-1609001 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71420-1609004 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1609201 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71420-1610006 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71420-1609204 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1610204 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1609206 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71420-1610203 |
AL11 FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71420-1610004 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1610001 |
AL11 FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71420-1610206 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1602001 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-1610006 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1602004 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1610004 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1602101 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-1602006 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1602104 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1624004 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1624006 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1602106 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1624003 |
AL11 FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71430-1610001 |
AL11 FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1609001 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-1610001 |
AL11 FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-1609004 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1610006 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1609106 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1609101 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-1609104 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1625003 |
AL11 FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71440-1610004 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1625006 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1625004 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1609006 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71401-10180 |
AL11 |
1 | ||
| 71501-10090 |
AL11 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71501-10090 |
AL11 |
1 | ||
| 71401-10180 |
AL11 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71403-16040 |
AL11 |
1 | ||
| 71403-10050 |
AL11 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71403-10050 |
AL11 |
1 | ||
| 71403-16040 |
AL11 |
1 | ||
| 71581A - PAD, FRONT SEAT BACK CORNER, A | ||||
| 71581-16010 |
AL11 |
2 | ||
| 71581B - PAD, FRONT SEAT BACK CORNER, B | ||||
| 71582-16020 |
AL11 |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-16010 |
AL11 |
1 | ||
| 71610-12130 |
AL11 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-16010 |
AL11 |
1 | ||
| 71620-12130 |
AL11 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-10051 |
AL11 |
1 | ||
| 71630-10070 |
AL11 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-10040 |
AL11 |
1 | ||
| 71640-10051 |
AL11 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AL11 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AL11 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AL11 |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1601104 |
AL11 BLUE,BLUE,TRIM8# |
2 | ||
| 71910-1007006 |
AL11 LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71910-1007004 |
AL11 BLUE,BLUE,TRIM8# |
2 | ||
| 71910-1007001 |
AL11 BLACK,BLACK,TRIM2# |
2 | ||
| 71910-1601106 |
AL11 LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71910-1601101 |
AL11 BLACK,BLACK,TRIM2# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006005 |
AL11 W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001026 |
AL11 W/O(LOCK),LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71930-1006026 |
AL11 W(LOCK),W/LOCK,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71931-1001025 |
AL11 W/O(LOCK),BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001001 |
AL11 W/O(LOCK),BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1006001 |
AL11 W(LOCK),W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001005 |
AL11 W/O(LOCK),BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
AL11 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001004 |
AL11 W/O(LOCK),BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006025 |
AL11 W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006005 |
AL11 W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001026 |
AL11 W/O(LOCK),LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71930-1006026 |
AL11 W(LOCK),W/LOCK,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71931-1001025 |
AL11 W/O(LOCK),BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001001 |
AL11 W/O(LOCK),BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1006001 |
AL11 W(LOCK),W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001005 |
AL11 W/O(LOCK),BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
AL11 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001004 |
AL11 W/O(LOCK),BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006025 |
AL11 W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72010-1603001 |
AL11..(2DS,3DS)..STD BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1604006 |
AL11..(2DS,3DS)..LHD W/WALK-IN,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72010-1605001 |
AL11..(2DS,3DS)..STD BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1605004 |
AL11..(2DS,3DS)..STD BLUE,BLUE,TRIM8# |
1 | ||
| 72010-1603006 |
AL11..(2DS,3DS)..STD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72010-1603004 |
AL11..(2DS,3DS)..STD BLUE,BLUE,TRIM8# |
1 | ||
| 72010-1606001 |
AL11..(2DS,3DS)..LHD W/WALK-IN,BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1606004 |
AL11..(2DS,3DS)..LHD W/WALK-IN,BLUE,BLUE,TRIM8# |
1 | ||
| 72010-1605006 |
AL11..(2DS,3DS)..STD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72010-1604004 |
AL11..(2DS,3DS)..LHD W/WALK-IN,BLUE,BLUE,TRIM8# |
1 | ||
| 72010-1604001 |
AL11..(2DS,3DS)..LHD W/WALK-IN,BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1605106 |
AL11..(2DS,3DS)..STD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72010-1606104 |
AL11..(2DS,3DS)..LHD W/WALK-IN,BLUE,BLUE,TRIM8# |
1 | ||
| 72010-1606101 |
AL11..(2DS,3DS)..LHD W/WALK-IN,BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1606006 |
AL11..(2DS,3DS)..LHD W/WALK-IN,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72010-1606106 |
AL11..(2DS,3DS)..LHD W/WALK-IN,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72010-1605104 |
AL11..(2DS,3DS)..STD BLUE,BLUE,TRIM8# |
1 | ||
| 72010-1605101 |
AL11..(2DS,3DS)..STD BLACK,BLACK,TRIM2# |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72010-1603001 |
AL11..(2DS,3DS)..STD BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1604006 |
AL11..(2DS,3DS)..LHD W/WALK-IN,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72010-1605001 |
AL11..(2DS,3DS)..STD BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1605004 |
AL11..(2DS,3DS)..STD BLUE,BLUE,TRIM8# |
1 | ||
| 72010-1603006 |
AL11..(2DS,3DS)..STD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72010-1603004 |
AL11..(2DS,3DS)..STD BLUE,BLUE,TRIM8# |
1 | ||
| 72010-1606001 |
AL11..(2DS,3DS)..LHD W/WALK-IN,BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1606004 |
AL11..(2DS,3DS)..LHD W/WALK-IN,BLUE,BLUE,TRIM8# |
1 | ||
| 72010-1605006 |
AL11..(2DS,3DS)..STD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72010-1604004 |
AL11..(2DS,3DS)..LHD W/WALK-IN,BLUE,BLUE,TRIM8# |
1 | ||
| 72010-1604001 |
AL11..(2DS,3DS)..LHD W/WALK-IN,BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1605106 |
AL11..(2DS,3DS)..STD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72010-1606104 |
AL11..(2DS,3DS)..LHD W/WALK-IN,BLUE,BLUE,TRIM8# |
1 | ||
| 72010-1606101 |
AL11..(2DS,3DS)..LHD W/WALK-IN,BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1606006 |
AL11..(2DS,3DS)..LHD W/WALK-IN,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72010-1606106 |
AL11..(2DS,3DS)..LHD W/WALK-IN,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72010-1605104 |
AL11..(2DS,3DS)..STD BLUE,BLUE,TRIM8# |
1 | ||
| 72010-1605101 |
AL11..(2DS,3DS)..STD BLACK,BLACK,TRIM2# |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
AL11 |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
AL11 |
2 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72020-1603001 |
AL11 BLACK,BLACK,TRIM2# |
1 | ||
| 72020-1605001 |
AL11 BLACK,BLACK,TRIM2# |
1 | ||
| 72020-1603006 |
AL11 LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72020-1605006 |
AL11 LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72020-1605101 |
AL11 BLACK,BLACK,TRIM2# |
1 | ||
| 72020-1605104 |
AL11 BLUE,BLUE,TRIM8# |
1 | ||
| 72020-1605106 |
AL11 LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72020-1603004 |
AL11 BLUE,BLUE,TRIM8# |
1 | ||
| 72020-1605004 |
AL11 BLUE,BLUE,TRIM8# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72020-1603001 |
AL11 BLACK,BLACK,TRIM2# |
1 | ||
| 72020-1605001 |
AL11 BLACK,BLACK,TRIM2# |
1 | ||
| 72020-1603006 |
AL11 LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72020-1605006 |
AL11 LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72020-1605101 |
AL11 BLACK,BLACK,TRIM2# |
1 | ||
| 72020-1605104 |
AL11 BLUE,BLUE,TRIM8# |
1 | ||
| 72020-1605106 |
AL11 LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72020-1603004 |
AL11 BLUE,BLUE,TRIM8# |
1 | ||
| 72020-1605004 |
AL11 BLUE,BLUE,TRIM8# |
1 | ||
| 72520A - CABLE, ADJUSTER TO SEAT TRACK | ||||
| 72210-16010 |
AL11..(2DS,3DS)..LHD |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1206006 |
AL11 LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 72525-1208004 |
AL11 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-1208006 |
AL11 RH,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72525-1208001 |
AL11 RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-1202004 |
AL11 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1202001 |
AL11 LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1206001 |
AL11 BLACK,BLACK,TRIM2# |
2 | ||
| 72525-1206004 |
AL11 BLUE,BLUE,TRIM8# |
2 | ||
| 72526-1202006 |
AL11 LH,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1206006 |
AL11 LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 72525-1208004 |
AL11 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-1208006 |
AL11 RH,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72525-1208001 |
AL11 RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-1202004 |
AL11 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1202001 |
AL11 LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1206001 |
AL11 BLACK,BLACK,TRIM2# |
2 | ||
| 72525-1206004 |
AL11 BLUE,BLUE,TRIM8# |
2 | ||
| 72526-1202006 |
AL11 LH,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-12030 |
AL11..2DS,3DS SHIROKI |
1 | ||
| 72553-12020 |
AL11..2DS,3DS ARAKAWA |
1 | ||
| Common parts | ||||
| 90019-10116 | ||||
| 90119-08174 | ||||
| 90119-10116 | ||||
| 90119-10117 | ||||
| 90168-40011 | ||||
| 90168-40021 | ||||
| 90386-12004 | ||||
| 90523-10002 | ||||
| 93315-15012 | ||||
(8008- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1609001 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-1622001 |
AL11..2DS..5F..STD;AL11..3DS..4F..STD..EUR;AL11..(3DS,4DS)..5F..DLX FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-1622004 |
AL11..2DS..5F..STD;AL11..3DS..4F..STD..EUR;AL11..(3DS,4DS)..5F..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1609006 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1610004 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1610006 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1610001 |
AL11 FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-1609004 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1609204 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1610203 |
AL11 FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71071-1609206 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1609201 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71071-1610206 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1610204 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1609004 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-1622001 |
AL11..2DS..5F..STD;AL11..3DS..4F..STD..EUR;AL11..(3DS,4DS)..5F..DLX FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71072-1622004 |
AL11..2DS..5F..STD;AL11..3DS..4F..STD..EUR;AL11..(3DS,4DS)..5F..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-1609204 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-1610001 |
AL11 FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71072-1610004 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-1609201 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71072-1610204 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-1610203 |
AL11 FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71072-1609001 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71072-1610006 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71072-1609006 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71072-1609206 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71072-1610206 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1623004 |
AL11..2DS..5F..STD;AL11..3DS..4F..STD..EUR;AL11..(3DS,4DS)..5F..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1609004 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1606006 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1606004 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1623001 |
AL11..2DS..5F..STD;AL11..3DS..4F..STD..EUR;AL11..(3DS,4DS)..5F..DLX FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1609006 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1609101 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1606001 |
AL11 FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1622004 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1609106 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1622006 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1622003 |
AL11 FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71073-1609104 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1609001 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1623001 |
AL11..2DS..5F..STD;AL11..3DS..4F..STD..EUR;AL11..(3DS,4DS)..5F..DLX FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1609001 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1606001 |
AL11 FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1623004 |
AL11..2DS..5F..STD;AL11..3DS..4F..STD..EUR;AL11..(3DS,4DS)..5F..DLX FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1609004 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1606004 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1609106 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1609006 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1622006 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1622003 |
AL11 FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71073-1606006 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1622004 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1609104 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1609101 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1609001 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1609006 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1609004 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1609201 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1610006 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1610001 |
AL11 FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1610206 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1609204 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1610203 |
AL11 FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71410-1609206 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1610004 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1610204 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1609006 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71420-1609001 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71420-1609004 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1609201 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71420-1610006 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71420-1609204 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1610204 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1609206 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71420-1610203 |
AL11 FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71420-1610004 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1610001 |
AL11 FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71420-1610206 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1602001 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-1610006 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1602004 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1610004 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1602101 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71430-1602006 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1602104 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1624004 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1624006 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1602106 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1624003 |
AL11 FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71430-1610001 |
AL11 FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1609001 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-1610001 |
AL11 FB,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-1609004 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1610006 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1609106 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1609101 |
AL11..STD PF,BLACK,BLACK,TRIM2# |
1 | ||
| 71440-1609104 |
AL11..STD PF,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1625003 |
AL11 FB,GRAY,GRAY,TRIM2# |
1 | ||
| 71440-1610004 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1625006 |
AL11 FB,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1625004 |
AL11 FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1609006 |
AL11..STD PF,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71401-10180 |
AL11 |
1 | ||
| 71501-10090 |
AL11 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71501-10090 |
AL11 |
1 | ||
| 71401-10180 |
AL11 |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71403-16040 |
AL11 |
1 | ||
| 71403-10050 |
AL11 |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71403-10050 |
AL11 |
1 | ||
| 71403-16040 |
AL11 |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-16010 |
AL11 |
1 | ||
| 71610-12130 |
AL11 |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-16010 |
AL11 |
1 | ||
| 71620-12130 |
AL11 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-10051 |
AL11 |
1 | ||
| 71630-10070 |
AL11 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-10040 |
AL11 |
1 | ||
| 71640-10051 |
AL11 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AL11 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
AL11 |
1 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-1601104 |
AL11 BLUE,BLUE,TRIM8# |
2 | ||
| 71910-1007006 |
AL11 LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71910-1007004 |
AL11 BLUE,BLUE,TRIM8# |
2 | ||
| 71910-1007001 |
AL11 BLACK,BLACK,TRIM2# |
2 | ||
| 71910-1601106 |
AL11 LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71910-1601101 |
AL11 BLACK,BLACK,TRIM2# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006005 |
AL11 W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001026 |
AL11 W/O(LOCK),LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71930-1006026 |
AL11 W(LOCK),W/LOCK,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71931-1001025 |
AL11 W/O(LOCK),BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001001 |
AL11 W/O(LOCK),BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1006001 |
AL11 W(LOCK),W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001005 |
AL11 W/O(LOCK),BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
AL11 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001004 |
AL11 W/O(LOCK),BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006025 |
AL11 W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006005 |
AL11 W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001026 |
AL11 W/O(LOCK),LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71930-1006026 |
AL11 W(LOCK),W/LOCK,LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 71931-1001025 |
AL11 W/O(LOCK),BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001001 |
AL11 W/O(LOCK),BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1006001 |
AL11 W(LOCK),W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001005 |
AL11 W/O(LOCK),BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006004 |
AL11 W(LOCK),W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001004 |
AL11 W/O(LOCK),BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006025 |
AL11 W(LOCK),W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72010-1603001 |
AL11..(2DS,3DS)..STD BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1604006 |
AL11..(2DS,3DS)..LHD W/WALK-IN,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72010-1605001 |
AL11..(2DS,3DS)..STD BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1605004 |
AL11..(2DS,3DS)..STD BLUE,BLUE,TRIM8# |
1 | ||
| 72010-1603006 |
AL11..(2DS,3DS)..STD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72010-1603004 |
AL11..(2DS,3DS)..STD BLUE,BLUE,TRIM8# |
1 | ||
| 72010-1606001 |
AL11..(2DS,3DS)..LHD W/WALK-IN,BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1606004 |
AL11..(2DS,3DS)..LHD W/WALK-IN,BLUE,BLUE,TRIM8# |
1 | ||
| 72010-1605006 |
AL11..(2DS,3DS)..STD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72010-1604004 |
AL11..(2DS,3DS)..LHD W/WALK-IN,BLUE,BLUE,TRIM8# |
1 | ||
| 72010-1604001 |
AL11..(2DS,3DS)..LHD W/WALK-IN,BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1605106 |
AL11..(2DS,3DS)..STD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72010-1606104 |
AL11..(2DS,3DS)..LHD W/WALK-IN,BLUE,BLUE,TRIM8# |
1 | ||
| 72010-1606101 |
AL11..(2DS,3DS)..LHD W/WALK-IN,BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1606006 |
AL11..(2DS,3DS)..LHD W/WALK-IN,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72010-1606106 |
AL11..(2DS,3DS)..LHD W/WALK-IN,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72010-1605104 |
AL11..(2DS,3DS)..STD BLUE,BLUE,TRIM8# |
1 | ||
| 72010-1605101 |
AL11..(2DS,3DS)..STD BLACK,BLACK,TRIM2# |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72010-1603001 |
AL11..(2DS,3DS)..STD BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1604006 |
AL11..(2DS,3DS)..LHD W/WALK-IN,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72010-1605001 |
AL11..(2DS,3DS)..STD BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1605004 |
AL11..(2DS,3DS)..STD BLUE,BLUE,TRIM8# |
1 | ||
| 72010-1603006 |
AL11..(2DS,3DS)..STD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72010-1603004 |
AL11..(2DS,3DS)..STD BLUE,BLUE,TRIM8# |
1 | ||
| 72010-1606001 |
AL11..(2DS,3DS)..LHD W/WALK-IN,BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1606004 |
AL11..(2DS,3DS)..LHD W/WALK-IN,BLUE,BLUE,TRIM8# |
1 | ||
| 72010-1605006 |
AL11..(2DS,3DS)..STD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72010-1604004 |
AL11..(2DS,3DS)..LHD W/WALK-IN,BLUE,BLUE,TRIM8# |
1 | ||
| 72010-1604001 |
AL11..(2DS,3DS)..LHD W/WALK-IN,BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1605106 |
AL11..(2DS,3DS)..STD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72010-1606104 |
AL11..(2DS,3DS)..LHD W/WALK-IN,BLUE,BLUE,TRIM8# |
1 | ||
| 72010-1606101 |
AL11..(2DS,3DS)..LHD W/WALK-IN,BLACK,BLACK,TRIM2# |
1 | ||
| 72010-1606006 |
AL11..(2DS,3DS)..LHD W/WALK-IN,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72010-1606106 |
AL11..(2DS,3DS)..LHD W/WALK-IN,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72010-1605104 |
AL11..(2DS,3DS)..STD BLUE,BLUE,TRIM8# |
1 | ||
| 72010-1605101 |
AL11..(2DS,3DS)..STD BLACK,BLACK,TRIM2# |
1 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
AL11 |
2 | ||
| 72510A - SPRING, TENSION, NO.1(FOR RECLINING SEAT ADJUSTER) | ||||
| 90506-18015 |
AL11 |
2 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72020-1603001 |
AL11 BLACK,BLACK,TRIM2# |
1 | ||
| 72020-1605001 |
AL11 BLACK,BLACK,TRIM2# |
1 | ||
| 72020-1603006 |
AL11 LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72020-1605006 |
AL11 LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72020-1605101 |
AL11 BLACK,BLACK,TRIM2# |
1 | ||
| 72020-1605104 |
AL11 BLUE,BLUE,TRIM8# |
1 | ||
| 72020-1605106 |
AL11 LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72020-1603004 |
AL11 BLUE,BLUE,TRIM8# |
1 | ||
| 72020-1605004 |
AL11 BLUE,BLUE,TRIM8# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72020-1603001 |
AL11 BLACK,BLACK,TRIM2# |
1 | ||
| 72020-1605001 |
AL11 BLACK,BLACK,TRIM2# |
1 | ||
| 72020-1603006 |
AL11 LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72020-1605006 |
AL11 LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72020-1605101 |
AL11 BLACK,BLACK,TRIM2# |
1 | ||
| 72020-1605104 |
AL11 BLUE,BLUE,TRIM8# |
1 | ||
| 72020-1605106 |
AL11 LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72020-1603004 |
AL11 BLUE,BLUE,TRIM8# |
1 | ||
| 72020-1605004 |
AL11 BLUE,BLUE,TRIM8# |
1 | ||
| 72520A - CABLE, ADJUSTER TO SEAT TRACK | ||||
| 72210-16010 |
AL11..(2DS,3DS)..LHD |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72525-1206006 |
AL11 LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 72525-1208004 |
AL11 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-1208006 |
AL11 RH,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72525-1208001 |
AL11 RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72526-1202004 |
AL11 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-1202001 |
AL11 LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-1206001 |
AL11 BLACK,BLACK,TRIM2# |
2 | ||
| 72525-1206004 |
AL11 BLUE,BLUE,TRIM8# |
2 | ||
| 72526-1202006 |
AL11 LH,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 72553 - COVER, RECLINING PEDAL | ||||
| 72553-12030 |
AL11..2DS,3DS SHIROKI |
1 | ||
| 72553-12020 |
AL11..2DS,3DS ARAKAWA |
1 | ||
| Common parts | ||||
| 90119-08174 | ||||
| 90119-10111 | ||||
| 90119-10117 | ||||
| 90159-50070 | ||||
| 90168-40011 | ||||
| 90386-12005 | ||||
| 90523-08001 | ||||
| 90523-10002 | ||||
(8008- )

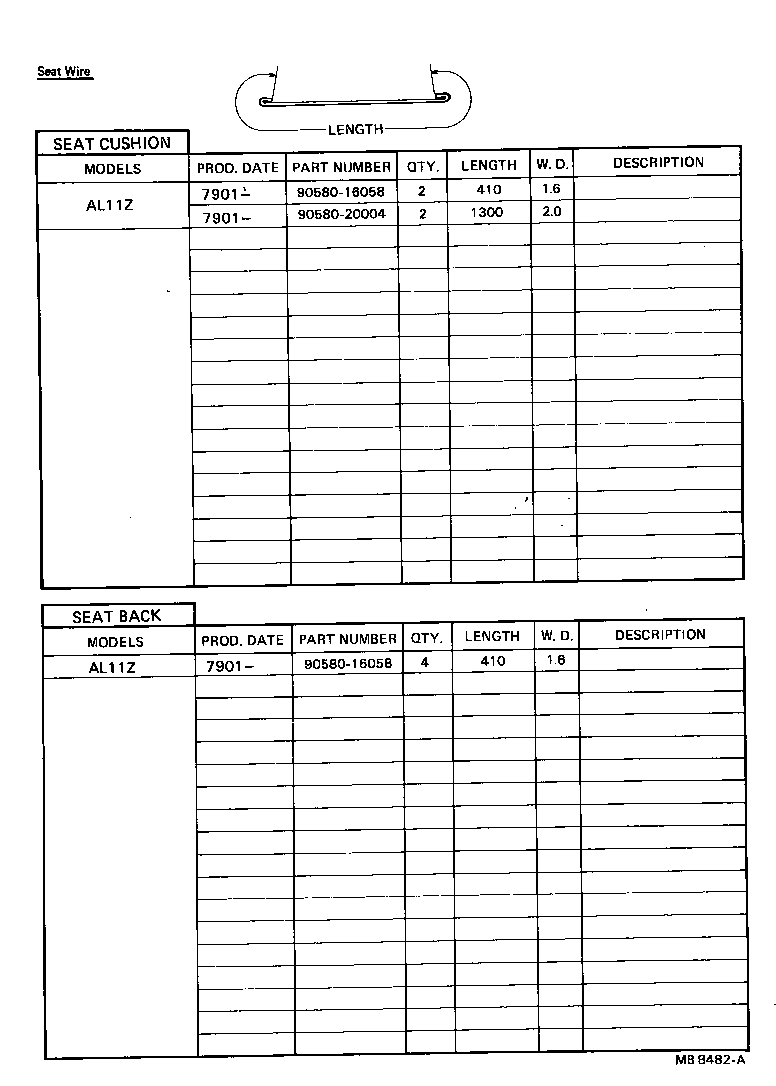

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90580-16058 | ||||
| 90580-20004 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
