AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )

Click highlighted areas on diagram

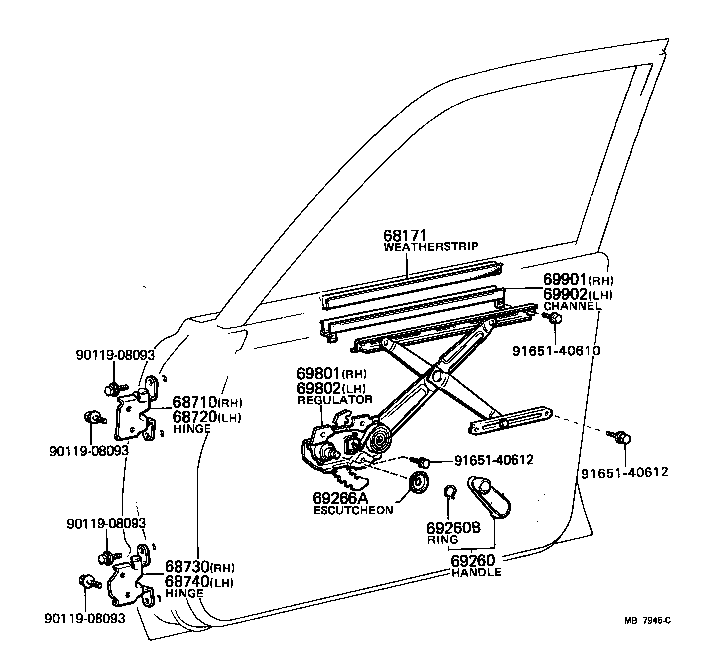

diagram 68171 68710 68720 68730 68740 69260 69260B 69266A 69801 69802 69901 69902 9011908093 9011908093 9011908093 9011908093 9165140610 9165140612 9165140612
Part # Description Qty Price
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68173-22010

AL11

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-14020

AL11

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-14020

AL11

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-14020

AL11

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-14020

AL11

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1004004

AL11

BLUE,BLUE,TRIM8#

 2
69260-1004036

AL11

LIGHT BROWN,BROWN,TRIM4#

 2
69260-1004005

AL11

BEIGE,BEIGE,TRIM4#

 2
69260-1004001

AL11

BLACK,BLACK,TRIM2#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01274

AL11

 2
90520-01002

AL11

 2
69266A - ESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)
69285-2201004

AL11

BLUE,BLUE,TRIM8#

 2
69285-22010

AL11

 2
69285-2201005

AL11

BEIGE,BEIGE,TRIM4#

 2
69285-2201001

AL11

BLACK,BLACK,TRIM2#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-16010

AL11

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-16010

AL11

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-12080

AL11

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-12080

AL11

 1
Common parts
90119-08093
91651-40610
91651-40612
