AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )

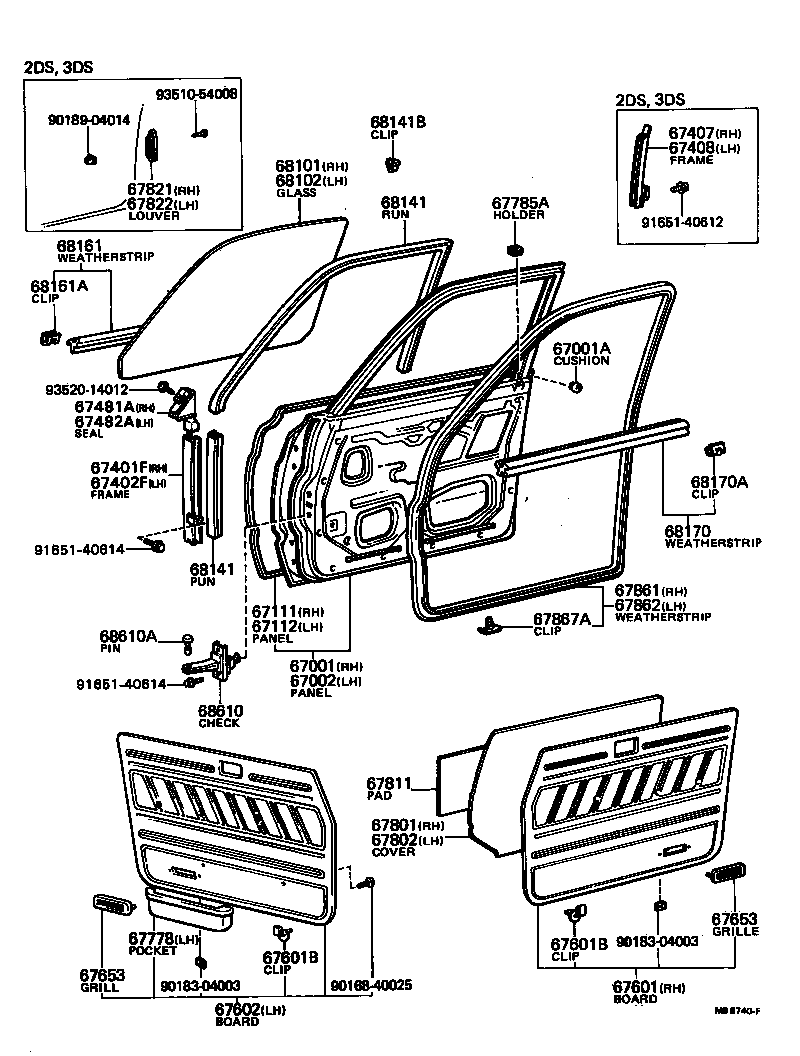

Click highlighted areas on diagram

diagram 67001 67001A 67002 67111 67112 67401F 67402F 67407 67408 67481A 67482A 67601 67601B 67601B 67602 67653 67653 67778 67785A 67801 67802 67811 67821 67822 67861 67862 67867A 68101 68102 68141 68141 68141B 68161 68161A 68170 68170A 68610 68610A 9016840025 9018304003 9018304003 9018904014 9165140612 9165140614 9165140614 9351054008 9352014012
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-16011

AL11..2DS,3DS

 1
67001-16030

AL11..2DS,3DS

W/MIRROR HOLE

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-16030

AL11..2DS,3DS

W/MIRROR HOLE

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-16010

AL11..2DS,3DS

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-16010

AL11..2DS,3DS

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-16010

AL11

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-16010

AL11

 1
67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-16010

AL11..2DS,3DS

 1
67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-16010

AL11..2DS,3DS

 1
67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH
67481-16010

AL11..2DS,3DS

 1
67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH
67482-16010

AL11..2DS,3DS

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-1601104

AL11..(2DS,3DS)..STD

BLUE,BLUE,TRIM8#

 1
67610-1601106

AL11..(2DS,3DS)..STD

LIGHT BROWN,BROWN,TRIM4#

 1
67610-1601116

AL11..(2DS,3DS)..STD

LIGHT BROWN,BROWN,TRIM4#

 1
67610-1601101

AL11..(2DS,3DS)..STD

BLACK,BLACK,TRIM2#

 1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-11008

AL11

 30
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-11008

AL11

 30
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1601106

AL11..(2DS,3DS)..STD

LIGHT BROWN,BROWN,TRIM4#

 1
67620-1601104

AL11..(2DS,3DS)..STD

BLUE,BLUE,TRIM8#

 1
67620-1601101

AL11..(2DS,3DS)..STD

BLACK,BLACK,TRIM2#

 1
67620-1601116

AL11..(2DS,3DS)..STD

LIGHT BROWN,BROWN,TRIM4#

 1
67653 - GRILLE, FRONT DOOR, VENTILATION
67653-1601004

AL11

BLUE,BLUE,TRIM8#

 1
67653-1601001

AL11

BLACK,BLACK,TRIM2#

 1
67653-1601006

AL11

LIGHT BROWN,BROWN,TRIM4#

 1
67653-1601016

AL11

LIGHT BROWN,BROWN,TRIM4#

 1
67653 - GRILLE, FRONT DOOR, VENTILATION
67653-1601004

AL11

BLUE,BLUE,TRIM8#

 1
67653-1601001

AL11

BLACK,BLACK,TRIM2#

 1
67653-1601006

AL11

LIGHT BROWN,BROWN,TRIM4#

 1
67653-1601016

AL11

LIGHT BROWN,BROWN,TRIM4#

 1
67801 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH
67831-16010

AL11..2DS,3DS

 1
67802 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH
67832-16010

AL11..2DS,3DS

 1
67811 - PAD, FRONT DOOR SILENCER
67811-20060

AL11..2DS,3DS

 2
67821 - LOUVER, FRONT DOOR VENTILATION, RH
67821-16010

AL11..2DS,3DS

 1
67822 - LOUVER, FRONT DOOR VENTILATION, LH
67822-16010

AL11..2DS,3DS

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-16070

AL11..2DS,3DS

 1
67861-16080

AL11..2DS,3DS

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-16060

AL11..2DS,3DS

 1
67862-16080

AL11..2DS,3DS

 1
67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67868-30040

AL11

 44
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-16020

AL11..(2DS,3DS)..STD

*TEM,T=4.0

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-16020

AL11..(2DS,3DS)..STD

*TEM,T=4.0

 1
68141 - RUN, FRONT DOOR GLASS
68141-16010

AL11..2DS,3DS

L=1879

 2
68143-16010

AL11

L=425

 2
68141 - RUN, FRONT DOOR GLASS
68141-16010

AL11..2DS,3DS

L=1879

 2
68143-16010

AL11

L=425

 2
68141B - CLIP, DOOR GLASS RUN
62377-14020

AL11..(2DS,3DS)..EUR

 2
68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER
68160-16010

AL11..(2DS,3DS)..STD

 2
68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68211-10030

AL11..STD

 14
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68160-16010

AL11..2DS,3DS

 2
68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68211-10030

AL11

 14
68610 - CHECK ASSY, FRONT DOOR
68610-16020

AL11..2DS,3DS

 2
68610A - PIN(FOR FRONT DOOR CHECK)
68617-22010

AL11

 2
Common parts
90168-40025
90183-04003
90189-04014
91651-40612
91651-40614
93510-54008
93520-14012
