AL11L-ZDMRSW (1979)
Toyota Tercel
(7901- )2DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62103 - BOARD SUB-ASSY, COWL SIDE TRIM, RH | ||||
| 62101-1603016 |
AL11..LHD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62101-1603006 |
AL11..LHD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62101-1603001 |
AL11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 62101-1603004 |
AL11..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 62103C - CLIP, COWL SIDE TRIM BOARD SET | ||||
| 90467-0906506 |
AL11 LIGHT BROWN,BROWN,TRIM4# |
4 | ||
| 90467-0906514 |
AL11 BLUE,BLUE,TRIM8# |
4 | ||
| 90467-0906501 |
AL11 BLACK,BLACK,TRIM2# |
4 | ||
| 90467-0906516 |
AL11 LIGHT BROWN,BROWN,TRIM4# |
4 | ||
| 62104 - BOARD SUB-ASSY, COWL SIDE TRIM, LH | ||||
| 62102-1603001 |
AL11..LHD BLACK,BLACK,TRIM2# |
1 | ||
| 62102-1603004 |
AL11..LHD BLUE,BLUE,TRIM8# |
1 | ||
| 62102-1603016 |
AL11..LHD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62102-1603006 |
AL11..LHD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62151 - PAD, COWL SIDE SILENCER, NO.1 | ||||
| 62153-16010 |
AL11 RH |
1 | ||
| 62154-16010 |
AL11 LH |
1 | ||
| 62151 - PAD, COWL SIDE SILENCER, NO.1 | ||||
| 62153-16010 |
AL11 RH |
1 | ||
| 62154-16010 |
AL11 LH |
1 | ||
| 62152 - PAD, COWL SIDE SILENCER, NO.2 | ||||
| 62152-16010 |
AL11 |
2 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-1601006 |
AL11 LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62211-1601008 |
AL11..2DS,4DS IVORY,IVORY,TRIM2#,4#,8# |
1 | ||
| 62211-1601001 |
AL11 BLACK,BLACK,TRIM2# |
1 | ||
| 62211-1601004 |
AL11 BLUE,BLUE,TRIM8# |
1 | ||
| 62211C - SCREW, FRONT BODY PILLAR GARNISH | ||||
| 90164-40002 |
AL11 WHITE |
4 | ||
| 93540-54012 |
AL11 BLACK |
4 | ||
| 90164-40002 |
AL11..2DS,4DS WHITE |
4 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-1601001 |
AL11 BLACK,BLACK,TRIM2# |
1 | ||
| 62212-1601004 |
AL11 BLUE,BLUE,TRIM8# |
1 | ||
| 62212-1601008 |
AL11..2DS,4DS IVORY,IVORY,TRIM2#,4#,8# |
1 | ||
| 62212-1601006 |
AL11 LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62313 - MOULDING, FRONT DOOR OPENING TRIM, RH | ||||
| 62313-1601001 |
AL11..2DS,3DS BLACK,BLACK,TRIM2# |
1 | ||
| 62313-1601004 |
AL11..2DS,3DS BLUE,BLUE,TRIM8# |
1 | ||
| 62313-1601006 |
AL11..2DS,3DS LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62313-1601016 |
AL11..2DS,3DS LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62314 - MOULDING, FRONT DOOR OPENING TRIM, LH | ||||
| 62313-1601006 |
AL11..2DS,3DS LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62313-1601004 |
AL11..2DS,3DS BLUE,BLUE,TRIM8# |
1 | ||
| 62313-1601016 |
AL11..2DS,3DS LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62313-1601001 |
AL11..2DS,3DS BLACK,BLACK,TRIM2# |
1 | ||
| 62461 - GARNISH, ROOF SIDE TRIM, RH | ||||
| 62471-1603008 |
AL11..2DS IVORY,IVORY,TRIM2#,4#,8# |
1 | ||
| 62471-1603001 |
AL11..2DS BLACK,BLACK,TRIM2# |
1 | ||
| 62471-1603004 |
AL11..2DS BLUE,BLUE,TRIM8# |
1 | ||
| 62471-1603006 |
AL11..2DS LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62461B - COVER, ROOF SIDE INNER GARNISH, RH | ||||
| 90467-1212901 |
AL11..2DS,3DS BLACK,BLACK,TRIM2# |
2 | ||
| 90467-1212906 |
AL11..2DS,3DS LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 90467-1212904 |
AL11..2DS,3DS BLUE,BLUE,TRIM8# |
2 | ||
| 90467-1212908 |
AL11..2DS,3DS IVORY,IVORY,TRIM2#,4#,8# |
2 | ||
| 62462 - GARNISH, ROOF SIDE TRIM, LH | ||||
| 62472-1603004 |
AL11..2DS BLUE,BLUE,TRIM8# |
1 | ||
| 62472-1603001 |
AL11..2DS BLACK,BLACK,TRIM2# |
1 | ||
| 62472-1603006 |
AL11..2DS LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62472-1603008 |
AL11..2DS IVORY,IVORY,TRIM2#,4#,8# |
1 | ||
| 62462B - COVER, ROOF SIDE INNER GARNISH, LH | ||||
| 90467-1212901 |
AL11..2DS,3DS BLACK,BLACK,TRIM2# |
2 | ||
| 90467-1212906 |
AL11..2DS,3DS LIGHT BROWN,BROWN,TRIM4# |
2 | ||
| 90467-1212904 |
AL11..2DS,3DS BLUE,BLUE,TRIM8# |
2 | ||
| 90467-1212908 |
AL11..2DS,3DS IVORY,IVORY,TRIM2#,4#,8# |
2 | ||
| 62462C - SCREW, ROOF SIDE TRIM GARNISH | ||||
| 93540-24510 |
AL11 WHITE |
12 | ||
| 93540-54510 |
AL11 BLACK |
12 | ||
| 90164-45001 |
AL11..2DS,4DS WHITE |
12 | ||
| 62511 - BOARD, QUARTER INSIDE TRIM, RH | ||||
| 62510-1617006 |
AL11..2DS..STD..EUR W/ASH RECEPTACLE,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62510-1613006 |
AL11..2DS..STD..EUR LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62510-1613004 |
AL11..2DS..STD..EUR BLUE,BLUE,TRIM8# |
1 | ||
| 62510-1617001 |
AL11..2DS..STD..EUR W/ASH RECEPTACLE,BLACK,BLACK,TRIM2# |
1 | ||
| 62510-1613016 |
AL11..2DS..STD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62510-1607004 |
AL11..2DS..STD BLUE,BLUE,TRIM8# |
1 | ||
| 62510-1617016 |
AL11..2DS..STD W/ASH RECEPTACLE,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62510-1617004 |
AL11..2DS..STD..EUR W/ASH RECEPTACLE,BLUE,BLUE,TRIM8# |
1 | ||
| 62510-1613001 |
AL11..2DS..STD..EUR BLACK,BLACK,TRIM2# |
1 | ||
| 62510-1621001 |
AL11..2DS..STD W/ASH RECEPTACLE,BLACK,BLACK,TRIM2# |
1 | ||
| 62510-1621016 |
AL11..2DS..STD W/ASH RECEPTACLE,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62510-1621004 |
AL11..2DS..STD W/ASH RECEPTACLE,BLUE,BLUE,TRIM8# |
1 | ||
| 62510-1607001 |
AL11..2DS..STD BLACK,BLACK,TRIM2# |
1 | ||
| 62510-1607016 |
AL11..2DS..STD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62511 - BOARD, QUARTER INSIDE TRIM, RH | ||||
| 62510-1617006 |
AL11..2DS..STD..EUR W/ASH RECEPTACLE,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62510-1613006 |
AL11..2DS..STD..EUR LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62510-1613004 |
AL11..2DS..STD..EUR BLUE,BLUE,TRIM8# |
1 | ||
| 62510-1617001 |
AL11..2DS..STD..EUR W/ASH RECEPTACLE,BLACK,BLACK,TRIM2# |
1 | ||
| 62510-1613016 |
AL11..2DS..STD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62510-1607004 |
AL11..2DS..STD BLUE,BLUE,TRIM8# |
1 | ||
| 62510-1617016 |
AL11..2DS..STD W/ASH RECEPTACLE,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62510-1617004 |
AL11..2DS..STD..EUR W/ASH RECEPTACLE,BLUE,BLUE,TRIM8# |
1 | ||
| 62510-1613001 |
AL11..2DS..STD..EUR BLACK,BLACK,TRIM2# |
1 | ||
| 62510-1621001 |
AL11..2DS..STD W/ASH RECEPTACLE,BLACK,BLACK,TRIM2# |
1 | ||
| 62510-1621016 |
AL11..2DS..STD W/ASH RECEPTACLE,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62510-1621004 |
AL11..2DS..STD W/ASH RECEPTACLE,BLUE,BLUE,TRIM8# |
1 | ||
| 62510-1607001 |
AL11..2DS..STD BLACK,BLACK,TRIM2# |
1 | ||
| 62510-1607016 |
AL11..2DS..STD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62512 - BOARD, QUARTER INSIDE TRIM, LH | ||||
| 62520-1613006 |
AL11..2DS..STD..EUR LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62520-1613004 |
AL11..2DS..STD..EUR BLUE,BLUE,TRIM8# |
1 | ||
| 62520-1613001 |
AL11..2DS..STD..EUR BLACK,BLACK,TRIM2# |
1 | ||
| 62520-1607004 |
AL11..2DS..STD BLUE,BLUE,TRIM8# |
1 | ||
| 62520-1607001 |
AL11..2DS..STD BLACK,BLACK,TRIM2# |
1 | ||
| 62520-1613016 |
AL11..2DS..STD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62520-1607016 |
AL11..2DS..STD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62512 - BOARD, QUARTER INSIDE TRIM, LH | ||||
| 62520-1613006 |
AL11..2DS..STD..EUR LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62520-1613004 |
AL11..2DS..STD..EUR BLUE,BLUE,TRIM8# |
1 | ||
| 62520-1613001 |
AL11..2DS..STD..EUR BLACK,BLACK,TRIM2# |
1 | ||
| 62520-1607004 |
AL11..2DS..STD BLUE,BLUE,TRIM8# |
1 | ||
| 62520-1607001 |
AL11..2DS..STD BLACK,BLACK,TRIM2# |
1 | ||
| 62520-1613016 |
AL11..2DS..STD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62520-1607016 |
AL11..2DS..STD LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 62581 - RETAINER, QUARTER TRIM | ||||
| 62581-3001011 |
AL11..2DS,3DS BLACK,BLACK,TRIM2# |
4 | ||
| 62581-3001056 |
AL11..2DS,3DS LIGHT BROWN,BROWN,TRIM4# |
4 | ||
| 62581-3001046 |
AL11..2DS,3DS LIGHT BROWN,BROWN,TRIM4# |
4 | ||
| 62581-3001014 |
AL11..2DS,3DS BLUE,BLUE,TRIM8# |
4 | ||
| Common parts | ||||
| 67772-16010 | ||||
| 90159-60076 | ||||
| 90179-04006 | ||||
| 90183-04046 | ||||
| 90467-11006 | ||||
| 90467-11008 | ||||

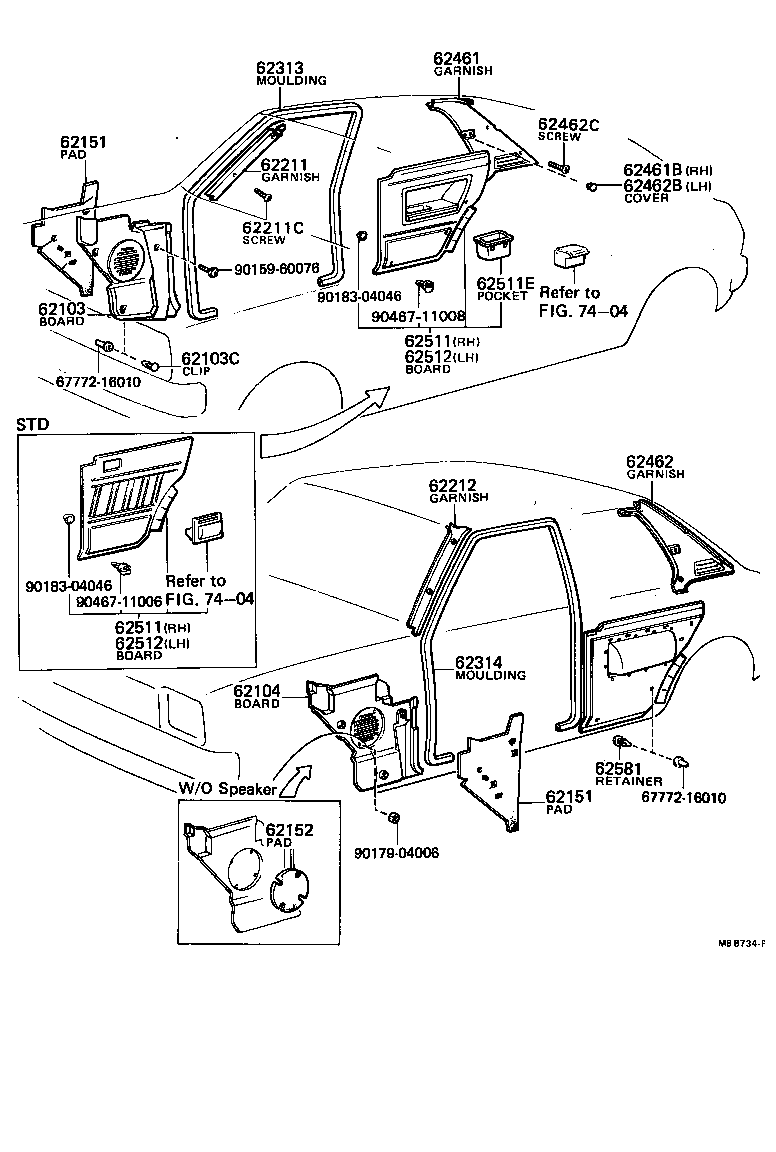

| Linked diagrams | ||||
| 7404 | ||||
