AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )2DS,4DS

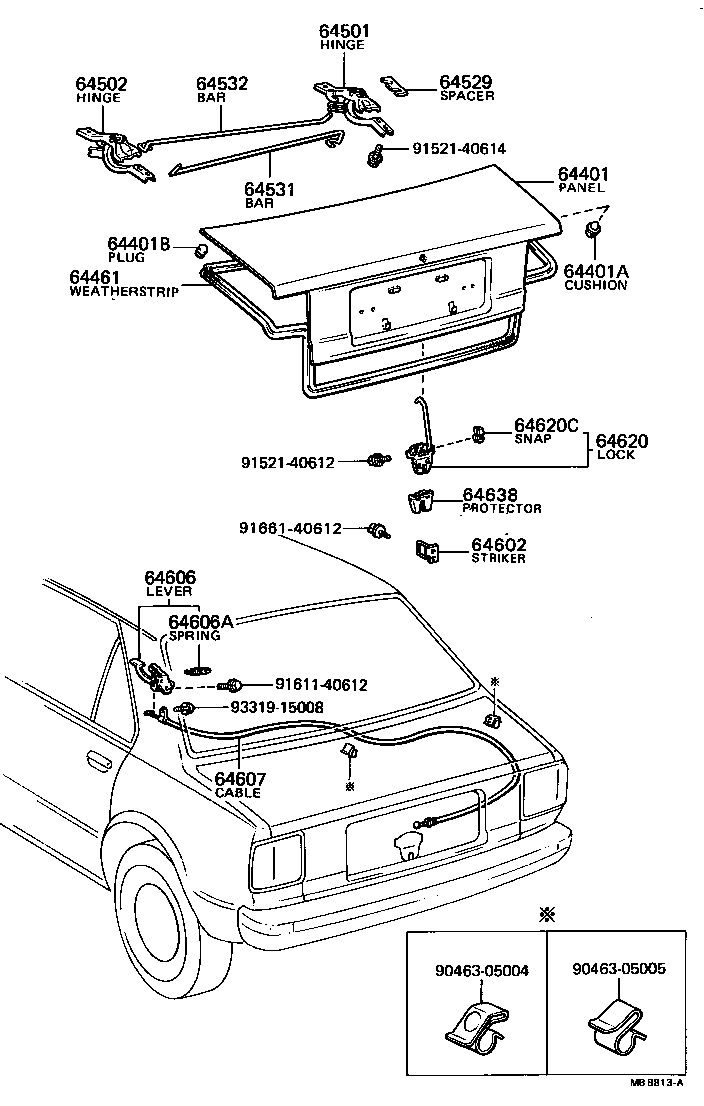

Click highlighted areas on diagram

diagram 64401 64401A 64401B 64461 64501 64502 64529 64531 64532 64602 64606 64606A 64607 64620 64620C 64638 9046305004 9046305005 9152140612 9152140614 9161140612 9166140612 9331915008
Part # Description Qty Price
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-16030

AL11..2DS,4DS

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-09007

AL11..2DS,4DS

 2
64401B - PLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90950-01058

AL11..2DS,4DS

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-16030

AL11..2DS,4DS

 1
64501 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-16010

AL11..2DS,4DS

 1
64502 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-16010

AL11..2DS,4DS

 1
64529 - SPACER, LUGGAGE COMPARTMENT DOOR HINGE
64529-22010

AL11..2DS,4DS

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-16010

AL11..2DS,4DS

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-16010

AL11..2DS,4DS

 1
64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK
64620-16010

AL11..2DS,4DS

 1
64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-16010

AL11..2DS,4DS

 1
64620C - SNAP, LUGGAGE COMPARTMENT DOOR LOCK
69759-12030

AL11..2DS,4DS

 1
64638 - PROTECTOR, LUGGAGE COMPARTMENT DOOR LINK
64631-16010

AL11..(2DS,4DS)..LHD

 1
Common parts
90463-05004
90463-05005
91521-40612
91521-40614
91611-40612
91661-40612
93319-15008
