AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )

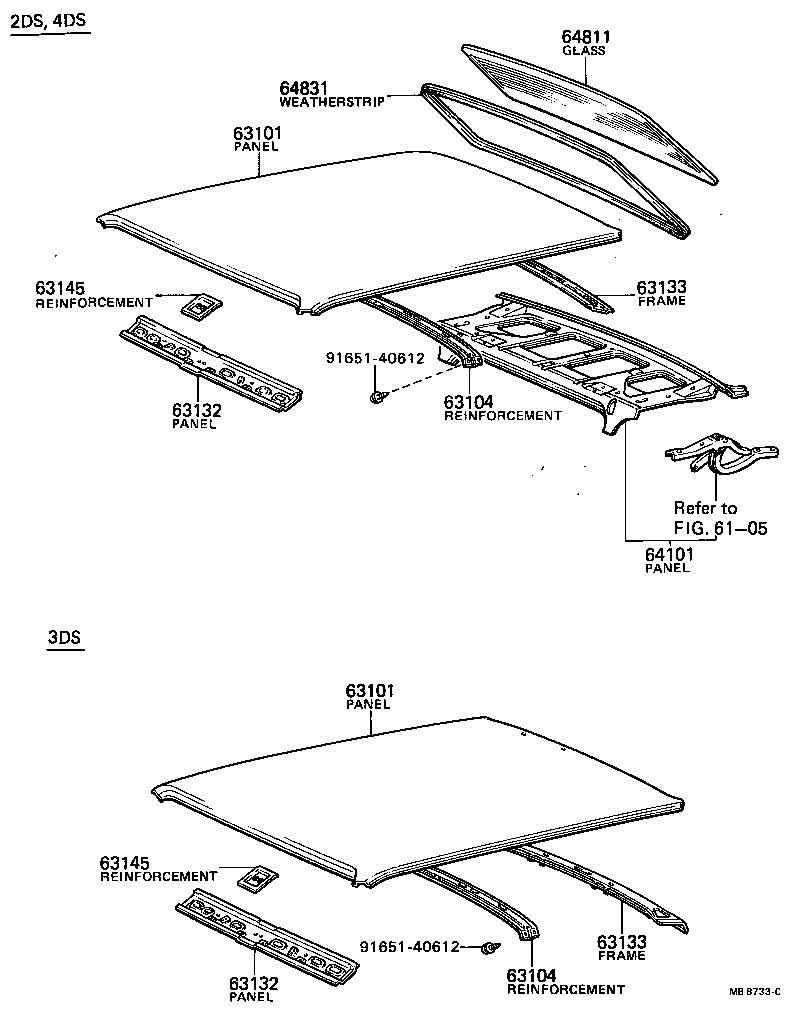

Click highlighted areas on diagram

diagram 6105 63101 63101 63104 63104 63132 63132 63133 63133 63145 63145 64101 64811 64831 9165140612 9165140612
Part # Description Qty Price
63101 - PANEL SUB-ASSY, ROOF
63111-16020

AL11..2DS,4DS

 1
63101 - PANEL SUB-ASSY, ROOF
63111-16020

AL11..2DS,4DS

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63141-16010

AL11

 1
63104 - REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63141-16010

AL11

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-16010

AL11

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-16010

AL11

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63133-16010

AL11..2DS,4DS

 1
63133 - FRAME, BACK WINDOW OPENING, UPPER
63133-16010

AL11..2DS,4DS

 1
63145 - REINFORCEMENT, WINDSHIELD HEADER INNER PANEL
63145-16010

AL11

 1
63145 - REINFORCEMENT, WINDSHIELD HEADER INNER PANEL
63145-16010

AL11

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-16010

AL11..2DS,4DS

 1
64811 - GLASS, BACK WINDOW
64811-16010

AL11..(2DS,4DS)..STD

*TEM,T=4.0

 1
64811-16050

AL11..(2DS,4DS)..STD..EUR

*EHT,T=4.0,*DEF=180W

 1
64811-16040

AL11..(2DS,4DS)..STD

*EHT,T=4.0,*DEF=100W

 1
64831 - WEATHERSTRIP, BACK WINDOW GLASS
64812-16020

AL11..(2DS,4DS)..STD

 1
Common parts
91651-40612
Linked diagrams
6105
