AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

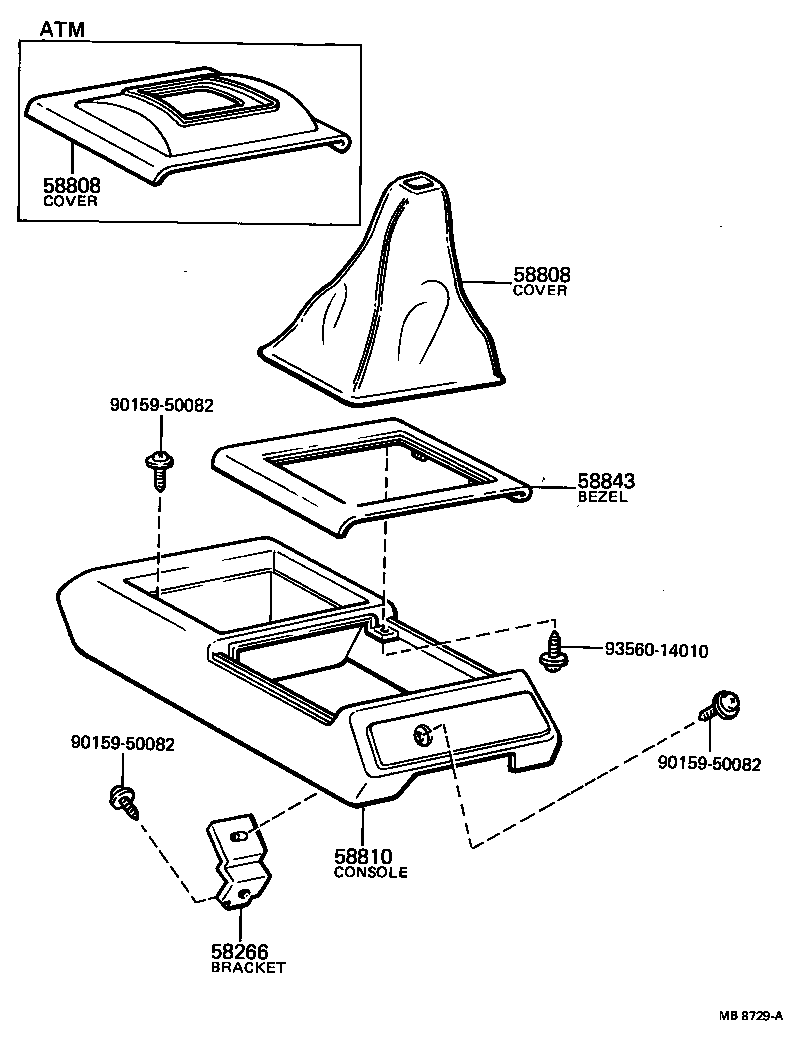

(7901-8008)

Click highlighted areas on diagram

diagram 58266 58808 58808 58810 58843 9015950082 9015950082 9015950082 9356014010
Part # Description Qty Price
58266 - BRACKET, CONSOLE BOX SUPPORT, FRONT
58995-16010

AL11..2DS..5F..STD

DENMARK SPEC

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-1601001

AL11..2DS..5F..STD

DENMARK SPEC,BLACK,BLACK,TRIM2#

 1
58808-1601004

AL11..2DS..5F..STD

DENMARK SPEC,BLUE,BLUE,TRIM8#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-1601001

AL11..2DS..5F..STD

DENMARK SPEC,BLACK,BLACK,TRIM2#

 1
58808-1601004

AL11..2DS..5F..STD

DENMARK SPEC,BLUE,BLUE,TRIM8#

 1
58810 - CONSOLE ASSY
58811-1601001

AL11..2DS..5F..STD

DENMARK SPEC,BLACK,BLACK,TRIM2#

 1
58811-1601004

AL11..2DS..5F..STD

DENMARK SPEC,BLUE,BLUE,TRIM8#

 1
58843 - BEZEL, SHIFTING HOLE
58843-1601004

AL11..2DS..5F..STD

DENMARK SPEC,BLUE,BLUE,TRIM8#

 1
58843-1601001

AL11..2DS..5F..STD

DENMARK SPEC,BLACK,BLACK,TRIM2#

 1
Common parts
90159-50082
93560-14010

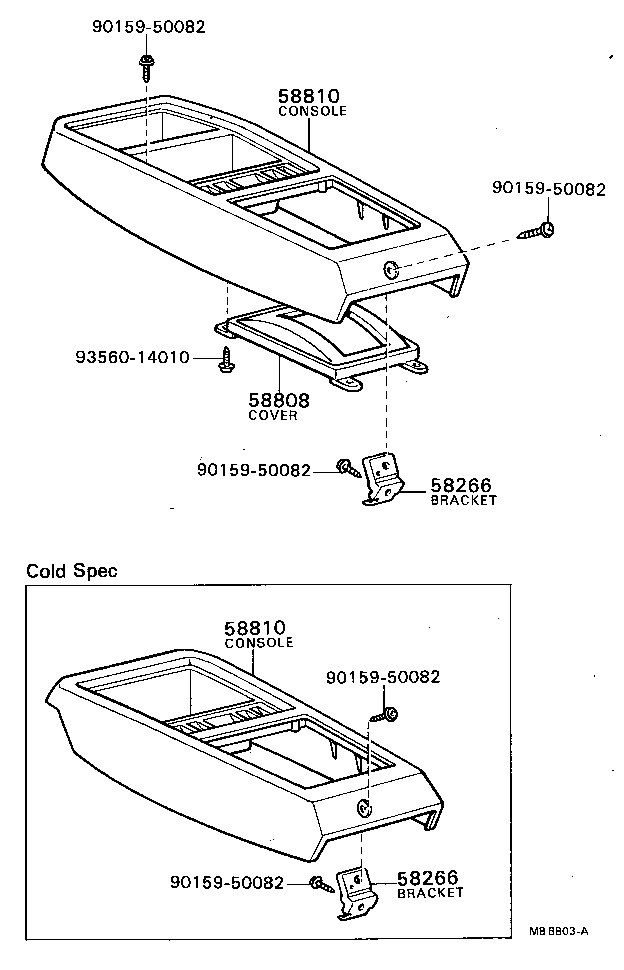

(8008- )

Click highlighted areas on diagram

diagram 58266 58266 58808 58810 58810 9015950082 9015950082 9015950082 9015950082 9015950082 9356014010
Part # Description Qty Price
58266 - BRACKET, CONSOLE BOX SUPPORT, FRONT
58995-16010

AL11..2DS..5F..STD

DENMARK SPEC

 1
58266 - BRACKET, CONSOLE BOX SUPPORT, FRONT
58995-16010

AL11..2DS..5F..STD

DENMARK SPEC

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-1601001

AL11..2DS..5F..STD

DENMARK SPEC,BLACK,BLACK,TRIM2#

 1
58808-1601004

AL11..2DS..5F..STD

DENMARK SPEC,BLUE,BLUE,TRIM8#

 1
58810 - CONSOLE ASSY
58811-1601001

AL11..2DS..5F..STD

DENMARK SPEC,BLACK,BLACK,TRIM2#

 1
58811-1601004

AL11..2DS..5F..STD

DENMARK SPEC,BLUE,BLUE,TRIM8#

 1
58810 - CONSOLE ASSY
58811-1601001

AL11..2DS..5F..STD

DENMARK SPEC,BLACK,BLACK,TRIM2#

 1
58811-1601004

AL11..2DS..5F..STD

DENMARK SPEC,BLUE,BLUE,TRIM8#

 1
Common parts
90159-50082
93560-14010
