AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )

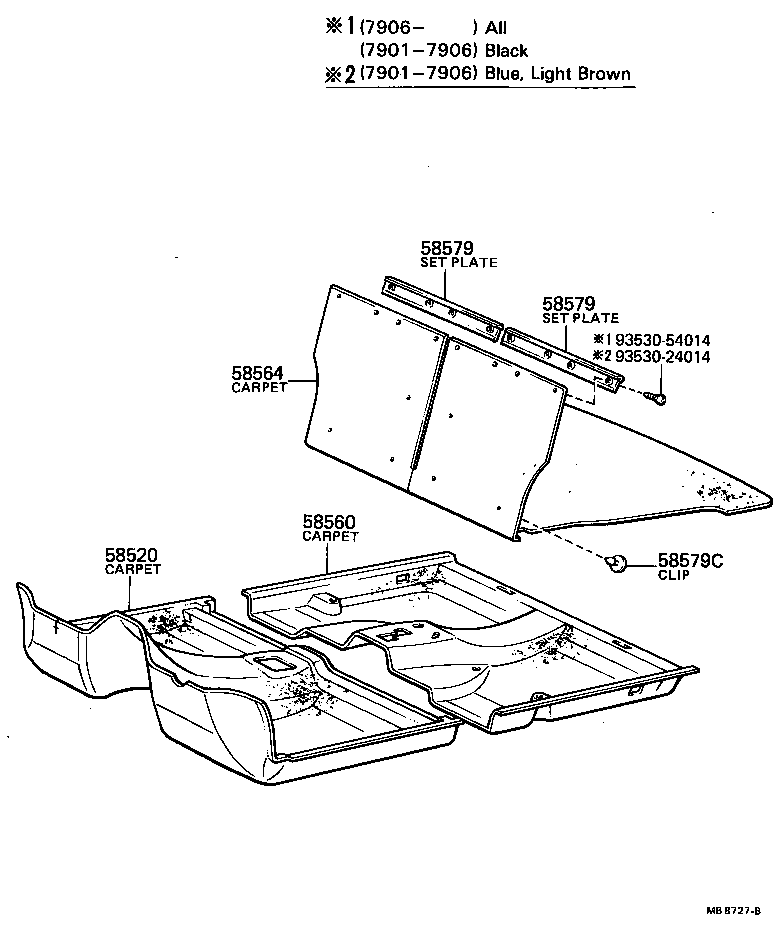

Click highlighted areas on diagram

diagram 58520 58560 58564 58579 58579 58579C 9353024014 9353054014
Part # Description Qty Price
58520 - CARPET ASSY, FRONT FLOOR
58510-1612001

AL11..EUR

W/HEATER RR DUCT,BLACK,BLACK,TRIM2#

 1
58510-1612016

AL11..EUR

W/HEATER RR DUCT,LIGHT BROWN,BROWN,TRIM4#

 1
58510-1612006

AL11..EUR

W/HEATER RR DUCT,LIGHT BROWN,BROWN,TRIM4#

 1
58510-1612004

AL11..EUR

W/HEATER RR DUCT,BLUE,BLUE,TRIM8#

 1
58510-1611101

AL11..LHD

BLACK,BLACK,TRIM2#

 1
58510-1611116

AL11..LHD

LIGHT BROWN,BROWN,TRIM4#

 1
58510-1611006

AL11..LHD

LIGHT BROWN,BROWN,TRIM4#

 1
58510-1611004

AL11..LHD

BLUE,BLUE,TRIM8#

 1
58510-1612104

AL11..EUR

W/HEATER RR DUCT,BLUE,BLUE,TRIM8#

 1
58510-1612101

AL11..EUR

W/HEATER RR DUCT,BLACK,BLACK,TRIM2#

 1
58510-1611016

AL11..LHD

LIGHT BROWN,BROWN,TRIM4#

 1
58510-1611001

AL11..LHD

BLACK,BLACK,TRIM2#

 1
58510-1611104

AL11..LHD

BLUE,BLUE,TRIM8#

 1
58510-1612116

AL11..EUR

W/HEATER RR DUCT,LIGHT BROWN,BROWN,TRIM4#

 1
58560 - CARPET ASSY, FLOOR, REAR
58540-1614001

AL11..(2DS,3DS)..EUR

BLACK,BLACK,TRIM2#

 1
58540-1614006

AL11..(2DS,3DS)..EUR

LIGHT BROWN,BROWN,TRIM4#

 1
58540-1614004

AL11..(2DS,3DS)..EUR

BLUE,BLUE,TRIM8#

 1
58540-1614016

AL11..2DS,3DS

W/SEAT BELT,LIGHT BROWN,BROWN,TRIM4#

 1
58540-1614001

AL11..2DS,3DS

W/SEAT BELT,BLACK,BLACK,TRIM2#

 1
58540-1614004

AL11..2DS,3DS

W/SEAT BELT,BLUE,BLUE,TRIM8#

 1
Common parts
93530-24014
93530-54014
