AL11L-ZDMRSW (1979)
Toyota Tercel
Production
Jan 1979
-
Apr 1982
Engine
2A
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7901- )

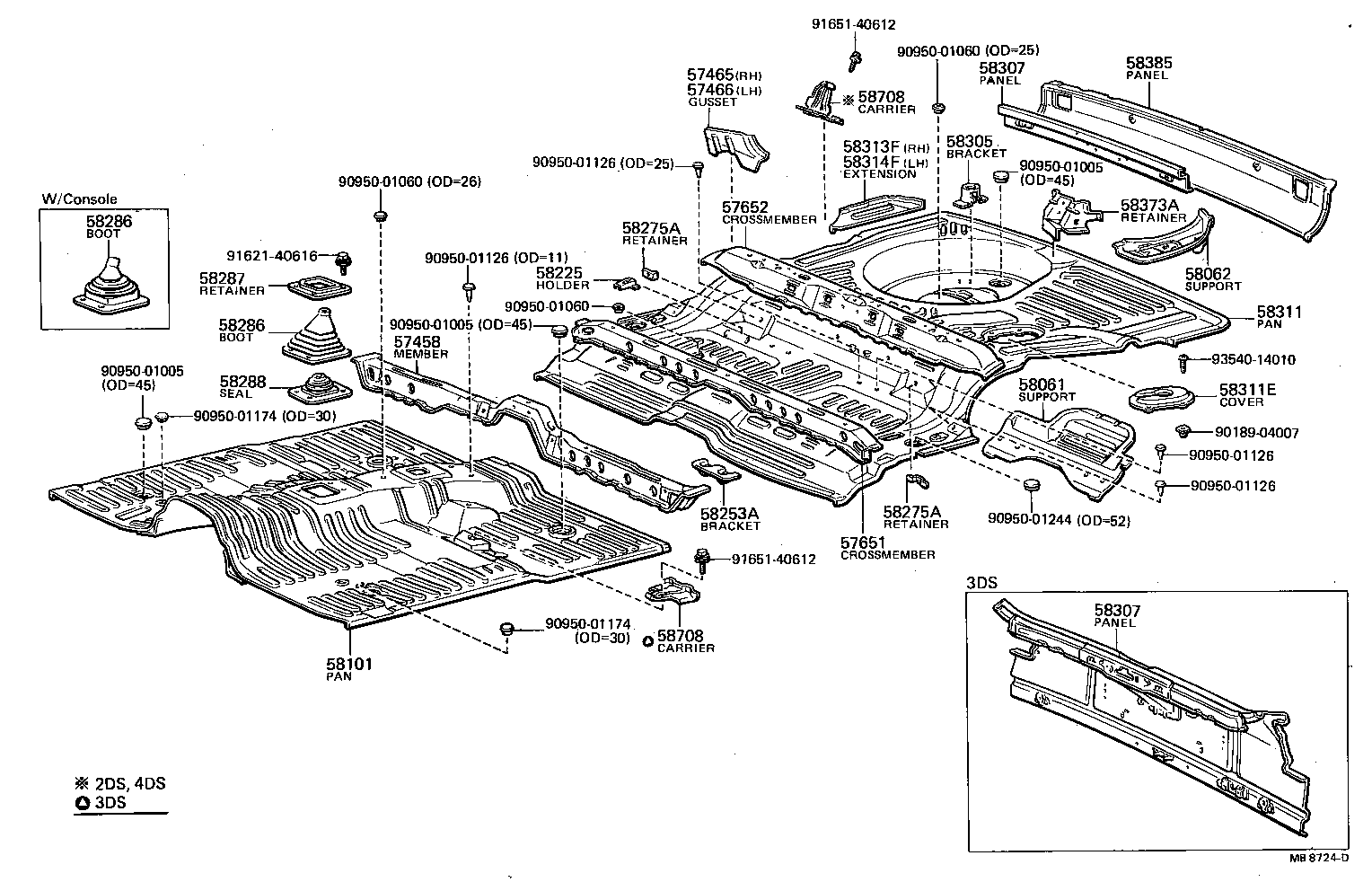

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57458 - MEMBER, FRONT FLOOR CROSS, NO.1 | ||||
| 57451-16010 |
AL11 |
1 | ||
| 57465 - GUSSET, CENTER FLOOR CROSSMEMBER, REAR, RH | ||||
| 57465-16010 |
AL11..2DS,4DS |
1 | ||
| 57466 - GUSSET, CENTER FLOOR CROSSMEMBER, REAR, LH | ||||
| 57466-16010 |
AL11..2DS,4DS |
1 | ||
| 57651 - CROSSMEMBER, REAR FLOOR, FRONT | ||||
| 57652-16010 |
AL11 |
1 | ||
| 57652 - CROSSMEMBER, REAR FLOOR, NO.2 | ||||
| 57606-16010 |
AL11 |
1 | ||
| 58061 - SUPPORT SUB-ASSY, FUEL TANK, FRONT | ||||
| 58061-16020 |
AL11 |
1 | ||
| 58062 - SUPPORT SUB-ASSY, FUEL TANK, REAR | ||||
| 58062-16010 |
AL11 |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58101-16900 |
AL11 |
1 | ||
| 58225 - HOLDER, REAR SEAT CUSHION | ||||
| 58225-16010 |
AL11 |
2 | ||
| 58253A - BRACKET, PARKING CABLE CLAMP | ||||
| 58253-16010 |
AL11 |
1 | ||
| 58275A - RETAINER, REAR SEAT BACK TO CENTER FLOOR | ||||
| 58275-12010 |
AL11..2DS,4DS RH |
1 | ||
| 58275-16010 |
AL11 LH |
1 | ||
| 58275A - RETAINER, REAR SEAT BACK TO CENTER FLOOR | ||||
| 58275-12010 |
AL11..2DS,4DS RH |
1 | ||
| 58275-16010 |
AL11 LH |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58286-16021 |
AL11..2DS..5F..STD DENMARK SPEC |
1 | ||
| 58286-16011 |
AL11..MTM |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58286-16021 |
AL11..2DS..5F..STD DENMARK SPEC |
1 | ||
| 58286-16011 |
AL11..MTM |
1 | ||
| 58287 - RETAINER, SHIFT LEVER BOOT | ||||
| 58287-16010 |
AL11..MTM |
1 | ||
| 58288 - SEAL, SHIFT LEVER BOOT | ||||
| 58288-16011 |
AL11..MTM |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
AL11 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58371-16040 |
AL11..2DS,4DS |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58371-16040 |
AL11..2DS,4DS |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-16010 |
AL11 |
1 | ||
| 58311E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-16010 |
AL11 |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-16010 |
AL11 |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58314-16010 |
AL11 |
1 | ||
| 58373A - RETAINER, LUGGAGE COMPARTMENT DOOR LOOK STRIKER | ||||
| 58373-16020 |
AL11..2DS,4DS |
1 | ||
| 58385 - PANEL, REAR VALANCE | ||||
| 58381-16020 |
AL11 |
1 | ||
| 58381-16010 |
AL11 |
1 | ||
| 58708 - CARRIER SUB-ASSY, JACK | ||||
| 58791-16020 |
AL11..2DS,4DS |
1 | ||
| 58708 - CARRIER SUB-ASSY, JACK | ||||
| 58791-16020 |
AL11..2DS,4DS |
1 | ||
| Common parts | ||||
| 90189-04007 | ||||
| 90950-01005 | ||||
| 90950-01060 | ||||
| 90950-01126 | ||||
| 90950-01174 | ||||
| 90950-01244 | ||||
| 91621-40616 | ||||
| 91651-40612 | ||||
| 93540-14010 | ||||
