AL11L-ZDMRSW (1979)
Toyota Tercel
Production
Jan 1979
-
Apr 1982
Engine
2A
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7901-8008)

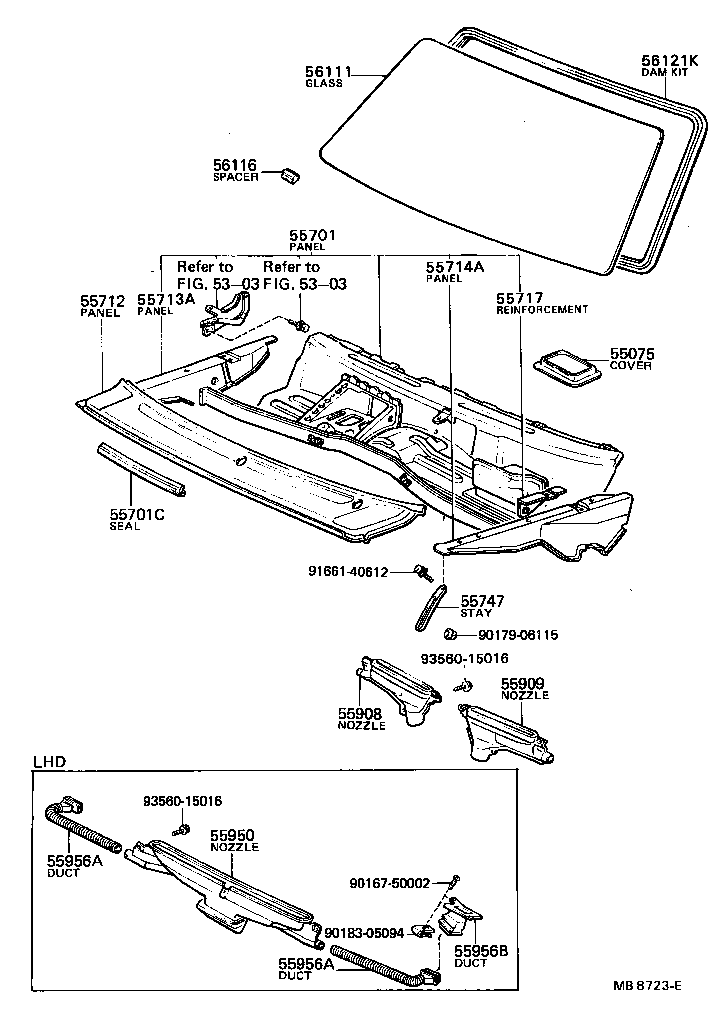

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-16901 |
AL11..LHD |
1 | ||
| 55700-16021 |
AL11..LHD |
1 | ||
| 55701C - SEAL, HOOD TO COWL TOP SIDE | ||||
| 53389-16010 |
AL11 |
1 | ||
| 53389-16020 |
AL11 |
2 | ||
| 55712 - PANEL, COWL TOP OUTSIDE, FRONT | ||||
| 55711-16020 |
AL11..LHD |
1 | ||
| 55711-16040 |
AL11..LHD |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-16010 |
AL11 |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-16010 |
AL11 |
1 | ||
| 55717 - REINFORCEMENT, COWL TOP OUTSIDE | ||||
| 55724-16010 |
AL11 LH |
1 | ||
| 55723-16010 |
AL11 RH |
1 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-16010 |
AL11..LHD |
1 | ||
| 55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-16010 |
AL11..EUR RH |
1 | ||
| 55971-16020 |
AL11..EUR LH |
1 | ||
| 55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-16010 |
AL11..EUR RH |
1 | ||
| 55971-16020 |
AL11..EUR LH |
1 | ||
| 55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-16020 |
AL11..EUR |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-16020 |
AL11..STD *ZT,T=5.0 |
1 | ||
| 56111-16030 |
AL11..STD *LAM,T=5.3 |
1 | ||
| 56116 - SPACER, WINDSHIELD GLASS | ||||
| 56116-16010 |
AL11 |
2 | ||
| 56121K - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-30030 |
AL11 |
1 | ||
| Common parts | ||||
| 90167-50002 | ||||
| 90179-06115 | ||||
| 90183-05094 | ||||
| 91661-40612 | ||||
| 93560-15016 | ||||
| Linked diagrams | ||||
| 5303 | ||||
(8008- )

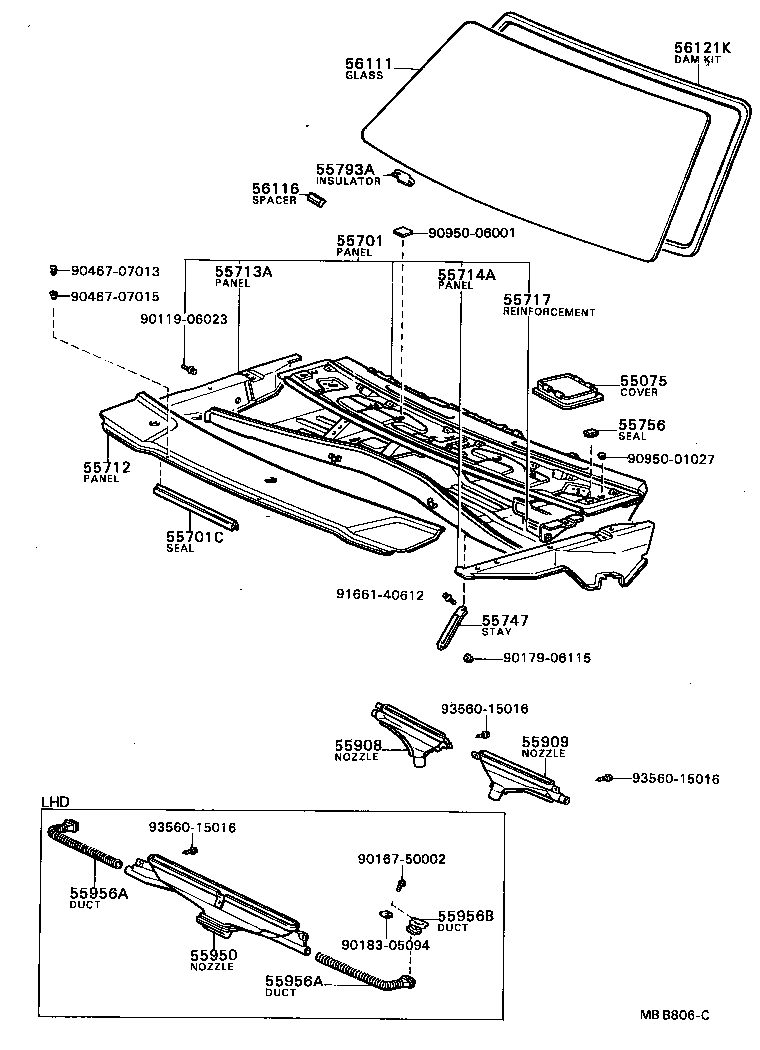

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-16901 |
AL11..LHD |
1 | ||
| 55700-16021 |
AL11..LHD |
1 | ||
| 55701C - SEAL, HOOD TO COWL TOP SIDE | ||||
| 53389-16010 |
AL11 |
1 | ||
| 53389-16020 |
AL11 |
2 | ||
| 55712 - PANEL, COWL TOP OUTSIDE, FRONT | ||||
| 55711-16020 |
AL11..LHD |
1 | ||
| 55711-16040 |
AL11..LHD |
1 | ||
| 55713A - PANEL, COWL TOP SIDE, RH | ||||
| 55713-16010 |
AL11 |
1 | ||
| 55714A - PANEL, COWL TOP SIDE, LH | ||||
| 55714-16010 |
AL11 |
1 | ||
| 55717 - REINFORCEMENT, COWL TOP OUTSIDE | ||||
| 55724-16010 |
AL11 LH |
1 | ||
| 55723-16010 |
AL11 RH |
1 | ||
| 55756 - SEAL, HEATER AIR DUCT | ||||
| 55757-16010 |
AL11 |
1 | ||
| 55793A - INSULATOR, COWL TOP PANEL, NO.2 | ||||
| 55788-16030 |
AL11..LHD |
1 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-16010 |
AL11..LHD |
1 | ||
| 55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-16010 |
AL11..EUR RH |
1 | ||
| 55971-16020 |
AL11..EUR LH |
1 | ||
| 55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-16010 |
AL11..EUR RH |
1 | ||
| 55971-16020 |
AL11..EUR LH |
1 | ||
| 55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-16020 |
AL11..EUR |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-16020 |
AL11..STD *ZT,T=5.0 |
1 | ||
| 56111-16030 |
AL11..STD *LAM,T=5.3 |
1 | ||
| 56116 - SPACER, WINDSHIELD GLASS | ||||
| 56116-16010 |
AL11 |
2 | ||
| 56121K - DAM KIT, WINDSHIELD GLASS | ||||
| 04562-30030 |
AL11 |
1 | ||
| Common parts | ||||
| 90119-06023 | ||||
| 90167-50002 | ||||
| 90179-06115 | ||||
| 90183-05094 | ||||
| 90467-07013 | ||||
| 90467-07015 | ||||
| 90950-01027 | ||||
| 90950-06001 | ||||
| 91661-40612 | ||||
| 93560-15016 | ||||
