AL11L-ZDMRSW (1979)
Toyota Tercel
Production
Jan 1979
-
Apr 1982
Engine
2A
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7901- )

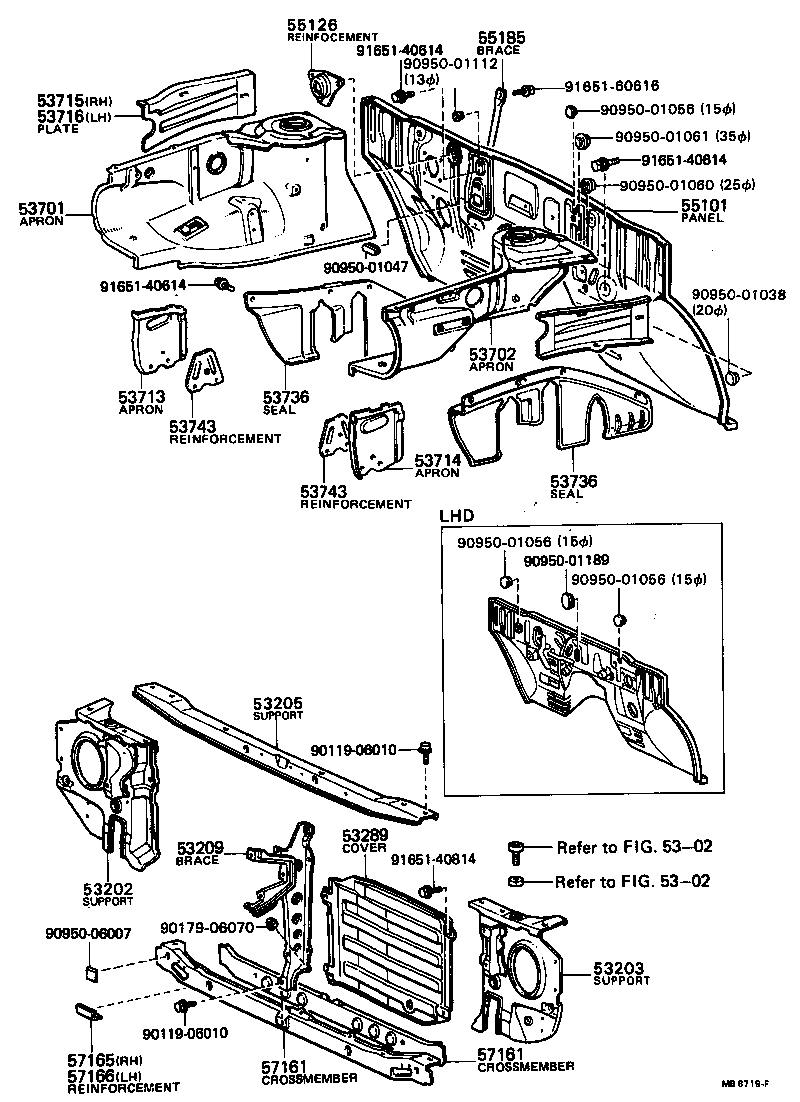

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-16012 |
AL11 |
1 | ||
| 53202-16010 |
AL11 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-16010 |
AL11 |
1 | ||
| 53203-16011 |
AL11 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53216-16011 |
AL11 |
1 | ||
| 53216-16010 |
AL11 |
1 | ||
| 53209 - BRACE SUB-ASSY, HOOD LOCK | ||||
| 53209-16020 |
AL11 |
1 | ||
| 53209-16021 |
AL11 |
1 | ||
| 53289 - COVER, RADIATOR SIDE BAFFLE | ||||
| 53289-16011 |
AL11 |
1 | ||
| 53289-16010 |
AL11 |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-16030 |
AL11 |
1 | ||
| 53701-16020 |
AL11 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-16020 |
AL11..LHD |
1 | ||
| 53702-16031 |
AL11 |
1 | ||
| 53713 - APRON, FENDER SIDE, RH | ||||
| 53713-16021 |
AL11 |
1 | ||
| 53713-16020 |
AL11 |
1 | ||
| 53713-16010 |
AL11 |
1 | ||
| 53714 - APRON, FENDER SIDE, LH | ||||
| 53714-16020 |
AL11 |
1 | ||
| 53714-16010 |
AL11 |
1 | ||
| 53714-16021 |
AL11 |
1 | ||
| 53715 - PLATE, FRONT FENDER APRON, REAR RH | ||||
| 53715-16020 |
AL11 |
1 | ||
| 53716 - PLATE, FRONT FENDER APRON, REAR LH | ||||
| 53716-16020 |
AL11 |
1 | ||
| 53736 - SEAL, FRONT FENDER APRON, RH | ||||
| 53737-16010 |
AL11 LH |
1 | ||
| 53736-16010 |
AL11 RH |
1 | ||
| 53736 - SEAL, FRONT FENDER APRON, RH | ||||
| 53737-16010 |
AL11 LH |
1 | ||
| 53736-16010 |
AL11 RH |
1 | ||
| 53743 - REINFORCEMENT, FRONT FENDER APRON EXTENSION | ||||
| 53743-16010 |
AL11 RH |
1 | ||
| 53744-16021 |
AL11 LH |
1 | ||
| 53744-16010 |
AL11 LH |
1 | ||
| 53744-16020 |
AL11 LH |
1 | ||
| 53743-16021 |
AL11 RH |
1 | ||
| 53743-16020 |
AL11 RH |
1 | ||
| 53743 - REINFORCEMENT, FRONT FENDER APRON EXTENSION | ||||
| 53743-16010 |
AL11 RH |
1 | ||
| 53744-16021 |
AL11 LH |
1 | ||
| 53744-16010 |
AL11 LH |
1 | ||
| 53744-16020 |
AL11 LH |
1 | ||
| 53743-16021 |
AL11 RH |
1 | ||
| 53743-16020 |
AL11 RH |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-16050 |
AL11..LHD..MTM |
1 | ||
| 55101-16051 |
AL11..LHD..MTM |
1 | ||
| 55185 - BRACE, DASH PANEL TO COWL | ||||
| 55185-16020 |
AL11..LHD |
1 | ||
| 57161 - CROSSMEMBER, FRONT | ||||
| 57161-16012 |
AL11 FR |
1 | ||
| 57162-16010 |
AL11 RR |
1 | ||
| 57162-16011 |
AL11 RR |
1 | ||
| 57161-16010 |
AL11 FR |
1 | ||
| 57161-16011 |
AL11 FR |
1 | ||
| 57161 - CROSSMEMBER, FRONT | ||||
| 57161-16012 |
AL11 FR |
1 | ||
| 57162-16010 |
AL11 RR |
1 | ||
| 57162-16011 |
AL11 RR |
1 | ||
| 57161-16010 |
AL11 FR |
1 | ||
| 57161-16011 |
AL11 FR |
1 | ||
| 57165 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH | ||||
| 57163-16020 |
AL11 |
1 | ||
| 57163-16010 |
AL11 |
1 | ||
| 57166 - REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH | ||||
| 57163-16010 |
AL11 |
1 | ||
| 57163-16020 |
AL11 |
1 | ||
| Common parts | ||||
| 90119-06010 | ||||
| 90179-06070 | ||||
| 90950-01038 | ||||
| 90950-01047 | ||||
| 90950-01056 | ||||
| 90950-01060 | ||||
| 90950-01061 | ||||
| 90950-01112 | ||||
| 90950-01189 | ||||
| 90950-06007 | ||||
| 91651-40614 | ||||
| 91651-40814 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 5302 | ||||
