AL11L-ZDMRSW (1979)
Toyota Tercel
Production
Jan 1979
-
Apr 1982
Engine
2A
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7901-8008)

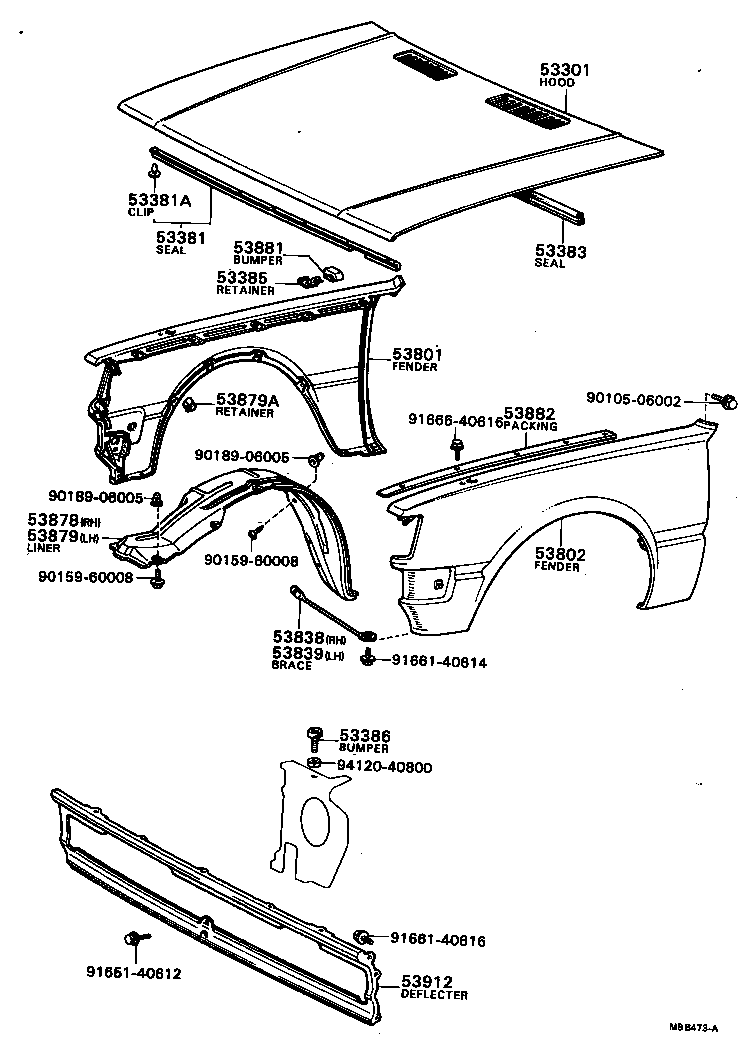

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-16021 |
AL11..EUR |
1 | ||
| 53301-16010 |
AL11 |
1 | ||
| 53301-16011 |
AL11 |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-16010 |
AL11 |
1 | ||
| 53381-16011 |
AL11 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08008 |
AL11 |
8 | ||
| 90467-08008 |
AL11 |
6 | ||
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| 53383-16010 |
AL11 |
1 | ||
| 53385 - RETAINER, HOOD, BUMPER | ||||
| 53386-14010 |
AL11 LH |
2 | ||
| 53385-14010 |
AL11 RH |
2 | ||
| 53386 - BUMPER, HOOD, REAR | ||||
| 53382-20011 |
AL11 |
2 | ||
| 53382-12040 |
AL11 |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-16040 |
AL11..EUR |
1 | ||
| 53801-16020 |
AL11..EUR |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-16020 |
AL11..EUR |
1 | ||
| 53802-16040 |
AL11..EUR |
1 | ||
| 53878 - LINER, FRONT FENDER, RH | ||||
| 53875-16010 |
AL11 |
1 | ||
| 53875-16011 |
AL11 |
1 | ||
| 53879 - LINER, FRONT FENDER, LH | ||||
| 53876-16010 |
AL11 |
1 | ||
| 53876-16011 |
AL11 |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-22010 |
AL11 |
8 | ||
| 53881 - BUMPER, FENDER TO HOOD | ||||
| 53384-16010 |
AL11 |
4 | ||
| 53384-16010 |
AL11 |
2 | ||
| 53882 - PACKING, FRONT FENDER MAIN | ||||
| 53882-16010 |
AL11 |
2 | ||
| 53912 - DEFLECTOR, FRONT BUMPER STONE | ||||
| 53911-16010 |
AL11 |
1 | ||
| 53911-16020 |
AL11..EUR |
1 | ||
| 53901-16020 |
AL11..EUR |
1 | ||
| 53911-16021 |
AL11..EUR |
1 | ||
| 53915A - BRACKET, FRONT VALANCE PANEL MOUNTING | ||||
| 53231-16010 |
AL11 |
1 | ||
| 53231-16020 |
AL11 |
1 | ||
| Common parts | ||||
| 90105-06002 | ||||
| 90119-06010 | ||||
| 90119-06023 | ||||
| 90159-60008 | ||||
| 90189-06005 | ||||
| 90950-01060 | ||||
| 91651-40612 | ||||
| 91661-40612 | ||||
| 91666-40616 | ||||
| 91666-40620 | ||||
| 94120-40800 | ||||
(8008- )

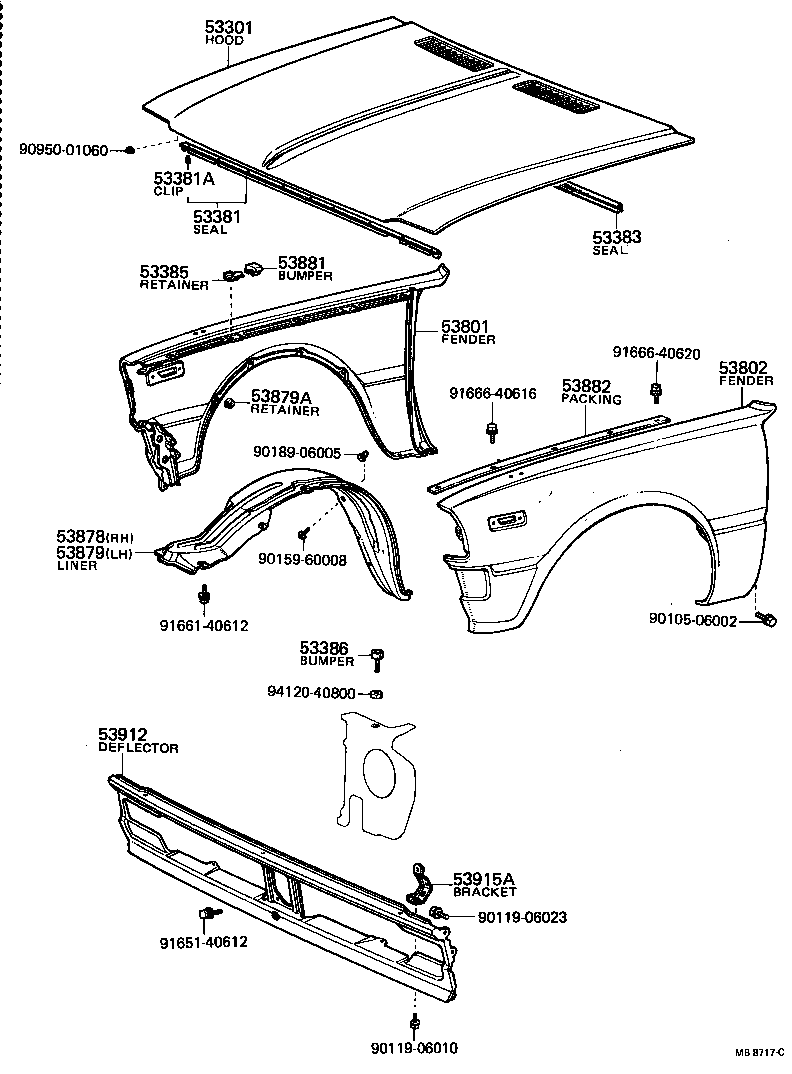

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-16021 |
AL11..EUR |
1 | ||
| 53301-16010 |
AL11 |
1 | ||
| 53301-16011 |
AL11 |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-16010 |
AL11 |
1 | ||
| 53381-16011 |
AL11 |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08008 |
AL11 |
8 | ||
| 90467-08008 |
AL11 |
6 | ||
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| 53383-16010 |
AL11 |
1 | ||
| 53385 - RETAINER, HOOD, BUMPER | ||||
| 53386-14010 |
AL11 LH |
2 | ||
| 53385-14010 |
AL11 RH |
2 | ||
| 53386 - BUMPER, HOOD, REAR | ||||
| 53382-20011 |
AL11 |
2 | ||
| 53382-12040 |
AL11 |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-16040 |
AL11..EUR |
1 | ||
| 53801-16020 |
AL11..EUR |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-16020 |
AL11..EUR |
1 | ||
| 53802-16040 |
AL11..EUR |
1 | ||
| 53838 - BRACE, FRONT FENDER, RH | ||||
| 53851-16010 |
AL11 |
1 | ||
| 53839 - BRACE, FRONT FENDER, LH | ||||
| 53852-16010 |
AL11 |
1 | ||
| 53878 - LINER, FRONT FENDER, RH | ||||
| 53875-16010 |
AL11 |
1 | ||
| 53875-16011 |
AL11 |
1 | ||
| 53879 - LINER, FRONT FENDER, LH | ||||
| 53876-16010 |
AL11 |
1 | ||
| 53876-16011 |
AL11 |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-22010 |
AL11 |
8 | ||
| 53881 - BUMPER, FENDER TO HOOD | ||||
| 53384-16010 |
AL11 |
4 | ||
| 53384-16010 |
AL11 |
2 | ||
| 53882 - PACKING, FRONT FENDER MAIN | ||||
| 53882-16010 |
AL11 |
2 | ||
| 53912 - DEFLECTOR, FRONT BUMPER STONE | ||||
| 53911-16010 |
AL11 |
1 | ||
| 53911-16020 |
AL11..EUR |
1 | ||
| 53901-16020 |
AL11..EUR |
1 | ||
| 53911-16021 |
AL11..EUR |
1 | ||
| Common parts | ||||
| 90105-06002 | ||||
| 90159-60008 | ||||
| 90189-06005 | ||||
| 91651-40612 | ||||
| 91661-40614 | ||||
| 91661-40616 | ||||
| 91666-40616 | ||||
| 94120-40800 | ||||
