AL11L-ZDMRSW (1979)
Toyota Tercel
Production
Jan 1979
-
Apr 1982
Engine
2A
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

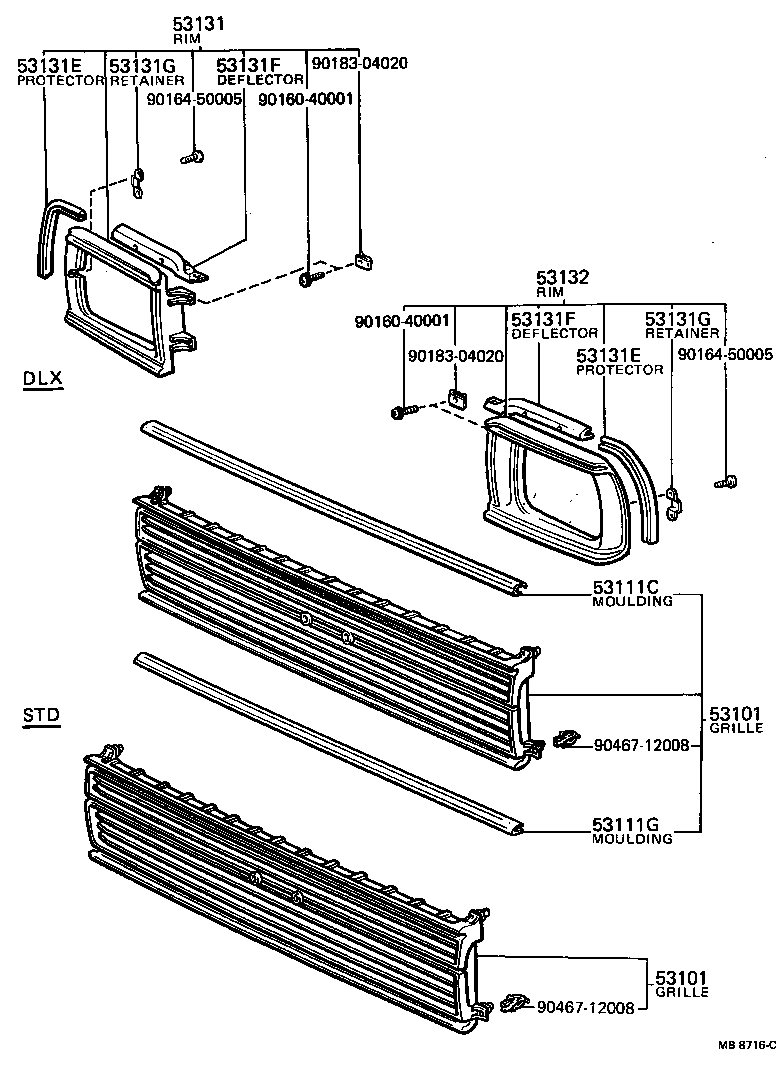

(7901-8008)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53101 - GRILLE SUB-ASSY, RADIATOR | ||||
| 53111-16070 |
AL11..STD |
1 | ||
| 53111-19375 |
AL11 |
1 | ||
| 53101 - GRILLE SUB-ASSY, RADIATOR | ||||
| 53111-16070 |
AL11..STD |
1 | ||
| 53111-19375 |
AL11 |
1 | ||
| 53131 - RIM, HEADLAMP, RH | ||||
| 53031-19185 |
AL11..STD |
1 | ||
| 53031-19136 |
AL11 |
1 | ||
| 53131E - PROTECTOR, HEADLAMP DOOR | ||||
| 53139-16010 |
AL11 LH |
1 | ||
| 53138-16010 |
AL11 RH |
1 | ||
| 53139-16011 |
AL11 |
2 | ||
| 53131E - PROTECTOR, HEADLAMP DOOR | ||||
| 53139-16010 |
AL11 LH |
1 | ||
| 53138-16010 |
AL11 RH |
1 | ||
| 53139-16011 |
AL11 |
2 | ||
| 53131F - DEFLECTOR, HEADLAMP DOOR | ||||
| 53183-16020 |
AL11 RH |
1 | ||
| 53184-16020 |
AL11 LH |
1 | ||
| 53131F - DEFLECTOR, HEADLAMP DOOR | ||||
| 53183-16020 |
AL11 RH |
1 | ||
| 53184-16020 |
AL11 LH |
1 | ||
| 53131G - RETAINER, HEADLAMP DOOR | ||||
| 53137-16010 |
AL11 |
2 | ||
| 53131G - RETAINER, HEADLAMP DOOR | ||||
| 53137-16010 |
AL11 |
2 | ||
| 53132 - RIM, HEADLAMP, LH | ||||
| 53032-19126 |
AL11 |
1 | ||
| 53032-19175 |
AL11..STD |
1 | ||
| Common parts | ||||
| 90160-40001 | ||||
| 90164-50005 | ||||
| 90183-04020 | ||||
| 90467-12008 | ||||

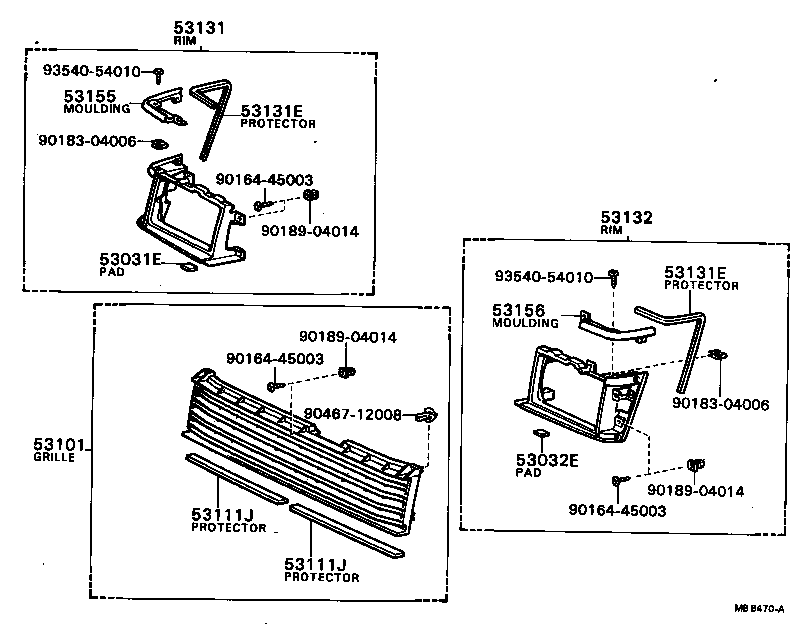

(8008- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53031E - PAD, HEADLAMP DOOR, RH | ||||
| 53159-16010 |
AL11 |
1 | ||
| 53032E - PAD,HEADLAMP DOOR, LH | ||||
| 53159-16010 |
AL11 |
1 | ||
| 53101 - GRILLE SUB-ASSY, RADIATOR | ||||
| 53111-16070 |
AL11..STD |
1 | ||
| 53111-19375 |
AL11 |
1 | ||
| 53111J - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-16010 |
AL11 |
2 | ||
| 53111J - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-16010 |
AL11 |
2 | ||
| 53131 - RIM, HEADLAMP, RH | ||||
| 53031-19185 |
AL11..STD |
1 | ||
| 53031-19136 |
AL11 |
1 | ||
| 53131E - PROTECTOR, HEADLAMP DOOR | ||||
| 53139-16010 |
AL11 LH |
1 | ||
| 53138-16010 |
AL11 RH |
1 | ||
| 53139-16011 |
AL11 |
2 | ||
| 53131E - PROTECTOR, HEADLAMP DOOR | ||||
| 53139-16010 |
AL11 LH |
1 | ||
| 53138-16010 |
AL11 RH |
1 | ||
| 53139-16011 |
AL11 |
2 | ||
| 53132 - RIM, HEADLAMP, LH | ||||
| 53032-19126 |
AL11 |
1 | ||
| 53032-19175 |
AL11..STD |
1 | ||
| 53155 - MOULDING, HEADLAMP DOOR, RH | ||||
| 53155-16020 |
AL11 |
1 | ||
| 53156 - MOULDING,HEADLAMP DOOR, LH | ||||
| 53156-16020 |
AL11 |
1 | ||
| Common parts | ||||
| 90164-45003 | ||||
| 90183-04006 | ||||
| 90189-04014 | ||||
| 90467-12008 | ||||
| 93540-54010 | ||||
