AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901-8008)

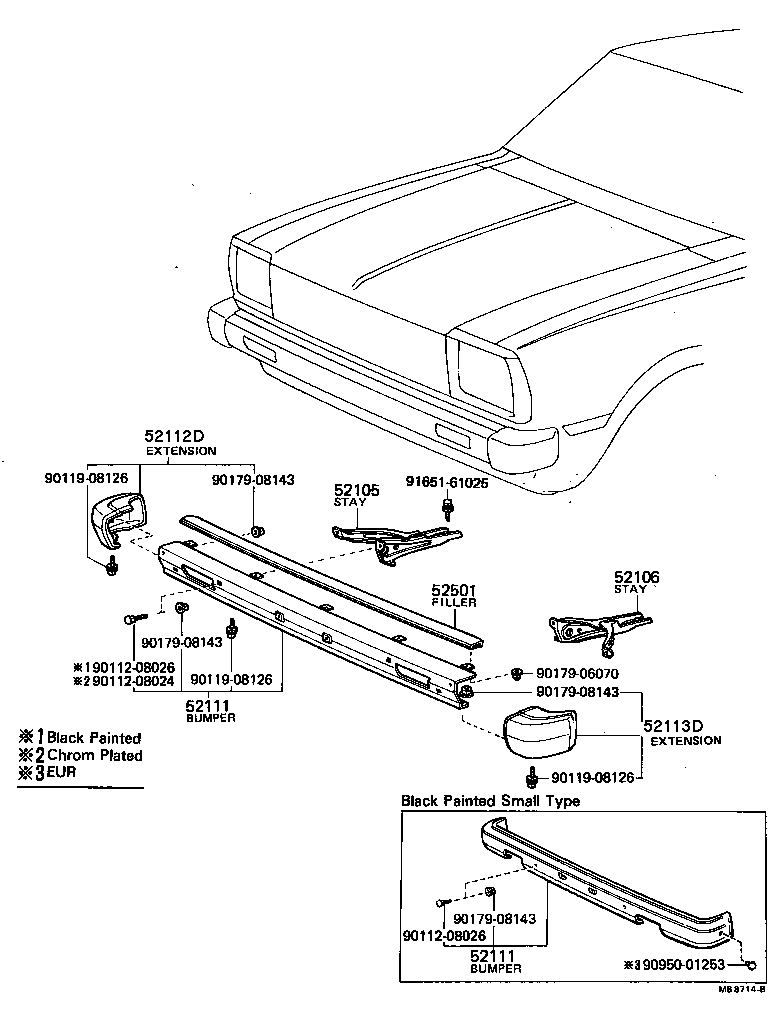

Click highlighted areas on diagram

diagram 52105 52106 52111 52111 52112D 52113D 52501 9011208024 9011208026 9011208026 9011908126 9011908126 9011908126 9017906070 9017908143 9017908143 9017908143 9017908143 9095001253 9165161025
Part # Description Qty Price
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-16010

AL11..STD

SMALL TYPE

 1
52011-16030

AL11

LARGE TYPE

 1
52011-16031

AL11

LARGE TYPE

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52012-16030

AL11

LARGE TYPE

 1
52012-16010

AL11..STD

SMALL TYPE

 1
52012-16031

AL11

LARGE TYPE

 1
52111 - BUMPER ASSY, FRONT
52018-19025

AL11

BLACK PAINTED LARGE TYPE

 1
52018-19035

AL11..EUR

W/HEAD LAMP CLEANER

 1
52018-19036

AL11..EUR

W/HEAD LAMP CLEANER

 1
52111-19465

AL11..STD

BLACK PAINTED SMALL TYPE

 1
52018-19026

AL11

BLACK PAINTED LARGE TYPE

 1
52111-19605

AL11..EUR

W/HEAD LAMP CLEANER

 1
52111-19595

AL11

BLACK PAINTED

 1
52111 - BUMPER ASSY, FRONT
52018-19025

AL11

BLACK PAINTED LARGE TYPE

 1
52018-19035

AL11..EUR

W/HEAD LAMP CLEANER

 1
52018-19036

AL11..EUR

W/HEAD LAMP CLEANER

 1
52111-19465

AL11..STD

BLACK PAINTED SMALL TYPE

 1
52018-19026

AL11

BLACK PAINTED LARGE TYPE

 1
52111-19605

AL11..EUR

W/HEAD LAMP CLEANER

 1
52111-19595

AL11

BLACK PAINTED

 1
52112D - EXTENSION, FRONT BUMPER, RH
52102-19165

AL11

 1
52102-19215

AL11

 1
52113D - EXTENSION, FRONT BUMPER, LH
52103-19195

AL11

 1
52103-19145

AL11

 1
52501 - FILLER SUB-ASSY, FRONT BUMPER
52501-16020

AL11

 1
Common parts
90112-08024
90112-08026
90119-08126
90179-06070
90179-08143
90950-01253
91651-61025

(8008- )

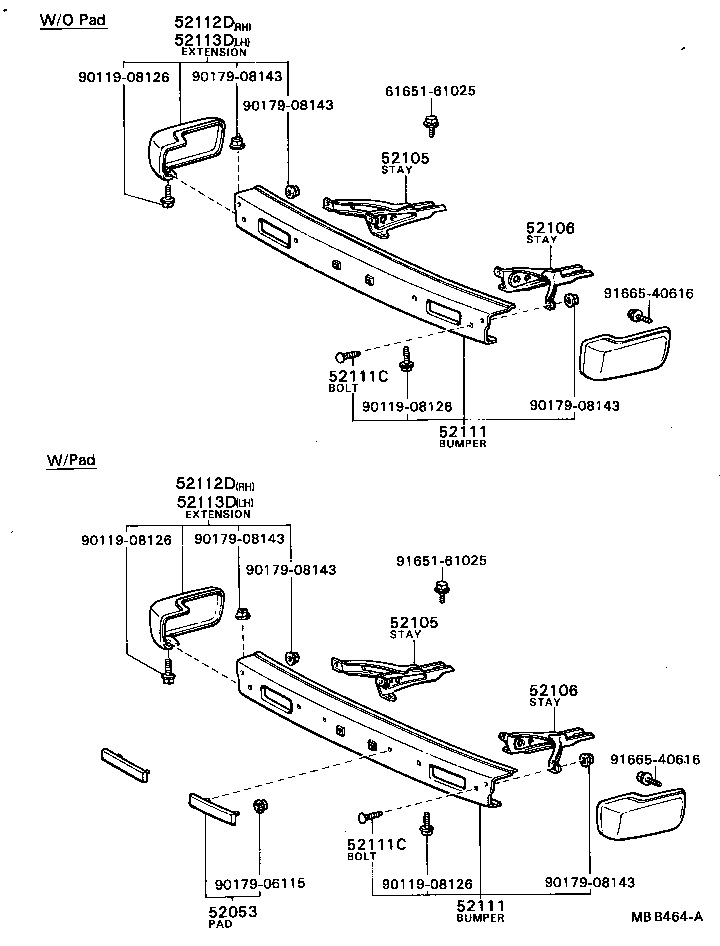

Click highlighted areas on diagram

diagram 52053 52105 52105 52106 52106 52111 52111 52111C 52111C 52112D 52112D 52113D 52113D 6165161025 9011908126 9011908126 9011908126 9011908126 9017906115 9017908143 9017908143 9017908143 9017908143 9017908143 9017908143 9165161025 9166540616 9166540616
Part # Description Qty Price
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-16010

AL11..STD

SMALL TYPE

 1
52011-16030

AL11

LARGE TYPE

 1
52011-16031

AL11

LARGE TYPE

 1
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52011-16010

AL11..STD

SMALL TYPE

 1
52011-16030

AL11

LARGE TYPE

 1
52011-16031

AL11

LARGE TYPE

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52012-16030

AL11

LARGE TYPE

 1
52012-16010

AL11..STD

SMALL TYPE

 1
52012-16031

AL11

LARGE TYPE

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52012-16030

AL11

LARGE TYPE

 1
52012-16010

AL11..STD

SMALL TYPE

 1
52012-16031

AL11

LARGE TYPE

 1
52111 - BUMPER ASSY, FRONT
52018-19025

AL11

BLACK PAINTED LARGE TYPE

 1
52018-19035

AL11..EUR

W/HEAD LAMP CLEANER

 1
52018-19036

AL11..EUR

W/HEAD LAMP CLEANER

 1
52111-19465

AL11..STD

BLACK PAINTED SMALL TYPE

 1
52018-19026

AL11

BLACK PAINTED LARGE TYPE

 1
52111-19605

AL11..EUR

W/HEAD LAMP CLEANER

 1
52111-19595

AL11

BLACK PAINTED

 1
52111 - BUMPER ASSY, FRONT
52018-19025

AL11

BLACK PAINTED LARGE TYPE

 1
52018-19035

AL11..EUR

W/HEAD LAMP CLEANER

 1
52018-19036

AL11..EUR

W/HEAD LAMP CLEANER

 1
52111-19465

AL11..STD

BLACK PAINTED SMALL TYPE

 1
52018-19026

AL11

BLACK PAINTED LARGE TYPE

 1
52111-19605

AL11..EUR

W/HEAD LAMP CLEANER

 1
52111-19595

AL11

BLACK PAINTED

 1
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-08026

AL11

BLACK

 4
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-08026

AL11

BLACK

 4
52112D - EXTENSION, FRONT BUMPER, RH
52102-19165

AL11

 1
52102-19215

AL11

 1
52112D - EXTENSION, FRONT BUMPER, RH
52102-19165

AL11

 1
52102-19215

AL11

 1
52113D - EXTENSION, FRONT BUMPER, LH
52103-19195

AL11

 1
52103-19145

AL11

 1
52113D - EXTENSION, FRONT BUMPER, LH
52103-19195

AL11

 1
52103-19145

AL11

 1
Common parts
61651-61025
90119-08126
90179-06115
90179-08143
91651-61025
91665-40616
