AL11L-ZDMRSW (1979)
Toyota Tercel
Production
Jan 1979
-
Apr 1982
Engine
2A
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7901- )

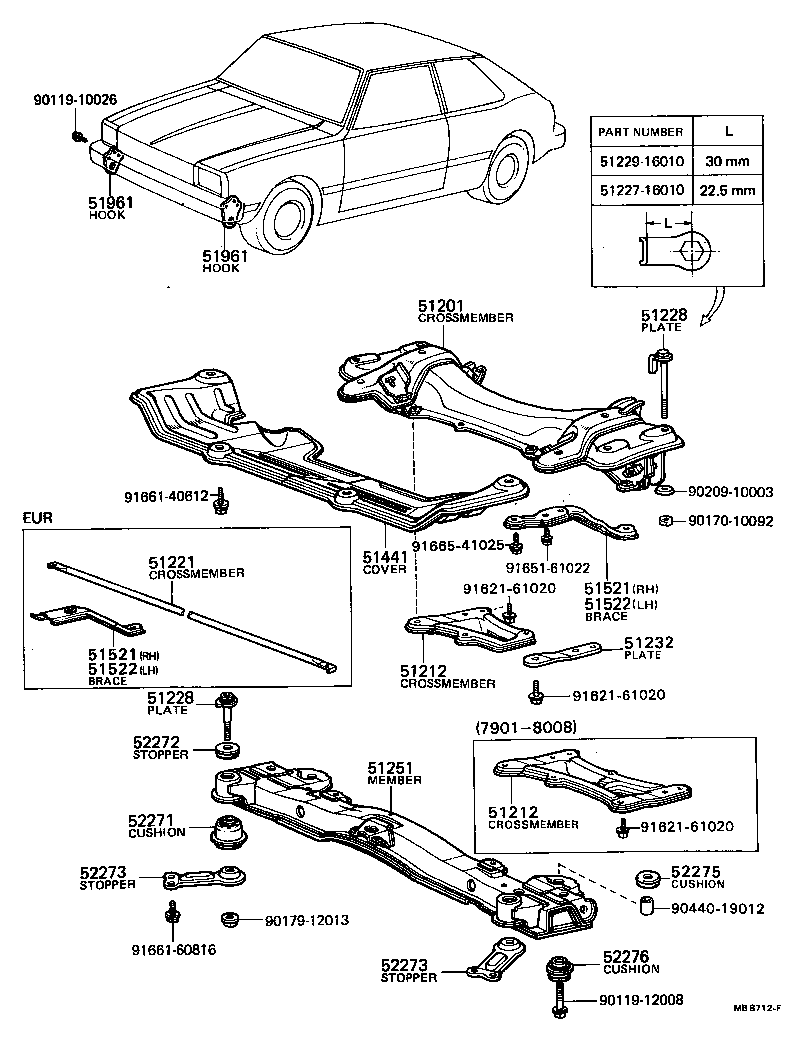

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-16020 |
AL11..LHD |
1 | ||
| 51212 - CROSSMEMBER, FRONT SUSPENSION, LOWER | ||||
| 51202-16020 |
AL11..LHD |
1 | ||
| 51202-16021 |
AL11 |
1 | ||
| 51212 - CROSSMEMBER, FRONT SUSPENSION, LOWER | ||||
| 51202-16020 |
AL11..LHD |
1 | ||
| 51202-16021 |
AL11 |
1 | ||
| 51221 - CROSSMEMBER, FRONT SUSPENSION, NO.1 | ||||
| 51221-16010 |
AL11..EUR |
1 | ||
| 51228 - PLATE, SUSPENSION MEMBER SET | ||||
| 51239-16010 |
AL11 RR |
2 | ||
| 51227-16010 |
AL11 FR,L=22.5 |
2 | ||
| 51229-16010 |
AL11 FR,L=30 |
2 | ||
| 51228 - PLATE, SUSPENSION MEMBER SET | ||||
| 51239-16010 |
AL11 RR |
2 | ||
| 51227-16010 |
AL11 FR,L=22.5 |
2 | ||
| 51229-16010 |
AL11 FR,L=30 |
2 | ||
| 51232 - PLATE, FRONT SUSPENSION MEMBER | ||||
| 51226-16020 |
AL11 |
1 | ||
| 51251 - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-16020 |
AL11 |
1 | ||
| 51206-16020 |
AL11..LHD |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51440-16020 |
AL11..LHD |
1 | ||
| 51440-16021 |
AL11 |
1 | ||
| 51521 - BRACE, LOWER ARM BRACKET, RH | ||||
| 51503-16030 |
AL11..EUR |
1 | ||
| 51521 - BRACE, LOWER ARM BRACKET, RH | ||||
| 51503-16030 |
AL11..EUR |
1 | ||
| 51522 - BRACE, LOWER ARM BRACKET, LH | ||||
| 51504-16030 |
AL11..EUR |
1 | ||
| 51522 - BRACE, LOWER ARM BRACKET, LH | ||||
| 51504-16030 |
AL11..EUR |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51964-16010 |
AL11 LH |
1 | ||
| 51963-16010 |
AL11 RH |
1 | ||
| 51964-16011 |
AL11 LH |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51964-16010 |
AL11 LH |
1 | ||
| 51963-16010 |
AL11 RH |
1 | ||
| 51964-16011 |
AL11 LH |
1 | ||
| 52271 - CUSHION, REAR SUSPENSION MEMBER | ||||
| 52271-16010 |
AL11 |
2 | ||
| 52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER | ||||
| 52272-16010 |
AL11 |
2 | ||
| 52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER | ||||
| 52274-16010 |
AL11 LH |
1 | ||
| 52273-16010 |
AL11 RH |
1 | ||
| 52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER | ||||
| 52274-16010 |
AL11 LH |
1 | ||
| 52273-16010 |
AL11 RH |
1 | ||
| 52275 - CUSHION,REAR SUSPENSION MEMBER, REAR UPPER | ||||
| 52275-16010 |
AL11 |
2 | ||
| 52276 - CUSHION, REAR SUSPENSION MEMBER, REAR LOWER | ||||
| 52204-16010 |
AL11 |
2 | ||
| Common parts | ||||
| 51227-16010 | ||||
| 51229-16010 | ||||
| 90119-10026 | ||||
| 90119-12008 | ||||
| 90170-10092 | ||||
| 90179-12013 | ||||
| 90209-10003 | ||||
| 90440-19012 | ||||
| 91621-61020 | ||||
| 91651-61022 | ||||
| 91661-40612 | ||||
| 91661-60816 | ||||
| 91665-41025 | ||||
