AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )

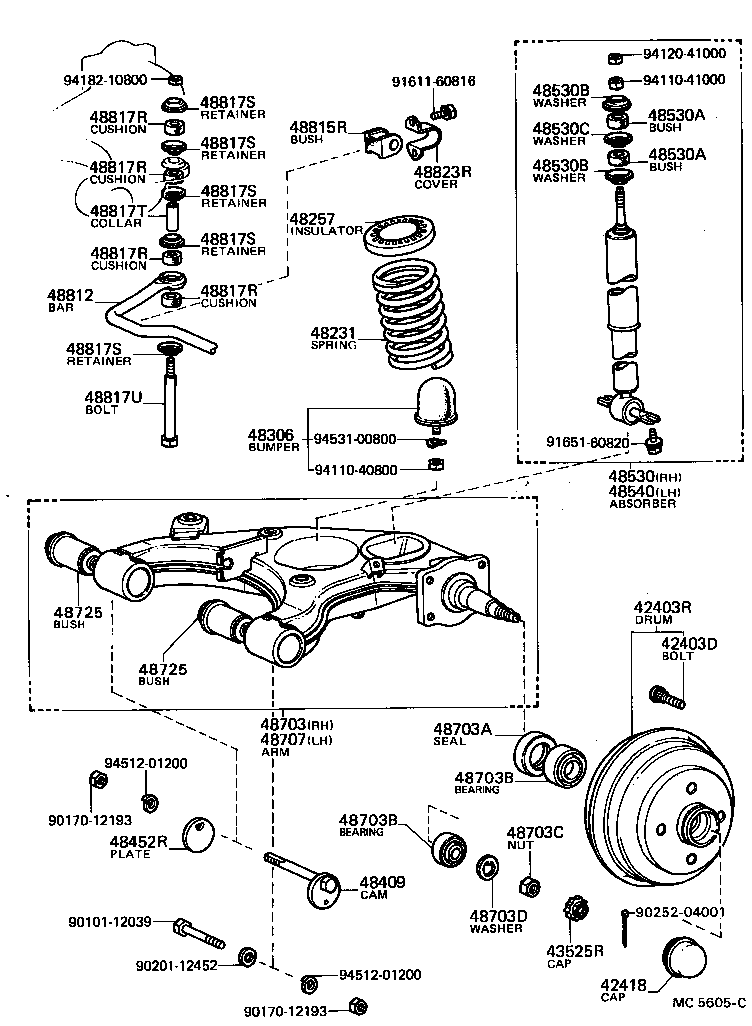

Click highlighted areas on diagram

diagram 42403D 42403R 42418 43525R 48231 48257 48306 48409 48452R 48530 48530A 48530A 48530B 48530B 48530C 48540 48703 48703A 48703B 48703B 48703C 48703D 48707 48725 48725 48812 48815R 48817R 48817R 48817R 48817R 48817S 48817S 48817S 48817S 48817S 48817T 48817U 48823R 9010112039 9017012193 9017012193 9020112452 9025204001 9161160816 9165160820 9411040800 9411041000 9412041000 9418210800 9451201200 9451201200 9453100800
Part # Description Qty Price
42403D - BOLT, HUB (FOR REAR DRUM & WHEEL SETTING)
90942-02047

AL11

 8
90942-02035

AL11

 8
42403R - DRUM SUB-ASSY, BRAKE
42403-16010

AL11

 2
42418 - CAP, REAR HUB GREASE
42418-16010

AL11

 2
43525R - CAP, REAR WHEEL ADJUSTING LOCK
43525-20011

AL11

 2
48231 - SPRING, COIL, REAR
48231-16030

AL11

 2
48257 - INSULATOR, REAR COIL SPRING
48257-16010

AL11

 2
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-19045

AL11

 2
48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48409-16010

AL11

 2
48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2
48452-16010

AL11

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-19626

AL11

 1
48531-19625

AL11

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90948-01003

AL11

 4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90948-01003

AL11

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-02002

AL11

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-02002

AL11

 4
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-02007

AL11

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-19625

AL11

 1
48531-19626

AL11

 1
48703 - ARM SUB-ASSY, REAR SUSPENSION, RH
48703-16901

AL11

 1
48703A - SEAL(FOR REAR SUSPENSION ARM)
90311-36001

AL11

 2
48703B - BEARING(FOR REAR SUSPENSION ARM)
90366-25003

AL11

INNER

 2
90368-17017

AL11

OUTER

 2
48703B - BEARING(FOR REAR SUSPENSION ARM)
90366-25003

AL11

INNER

 2
90368-17017

AL11

OUTER

 2
48703C - NUT(FOR REAR SUSPENSION ARM)
90170-16137

AL11

 2
48703D - WASHER(FOR REAR SUSPENSION ARM)
90214-16010

AL11

 2
48707 - ARM SUB-ASSY, REAR SUSPENSION, LH
48707-16901

AL11

 1
48725 - BUSH, LOWER CONTROL ARM
48725-16010

AL11

INNER

 2
48725-16030

AL11

OUTER

 2
48725 - BUSH, LOWER CONTROL ARM
48725-16010

AL11

INNER

 2
48725-16030

AL11

OUTER

 2
48812 - BAR, STABILIZER, REAR
48812-16030

AL11

 1
48815R - BUSH, STABILIZER(FOR REAR)
48818-16020

AL11

 2
48817R - CUSHION, STABILIZER(FOR REAR)
48817-10010

AL11

 8
48817R - CUSHION, STABILIZER(FOR REAR)
48817-10010

AL11

 8
48817R - CUSHION, STABILIZER(FOR REAR)
48817-10010

AL11

 8
48817R - CUSHION, STABILIZER(FOR REAR)
48817-10010

AL11

 8
48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
90948-02025

AL11

H=5,ID=13

 2
90948-02024

AL11

H=3.5,ID=8.5

 8
48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
90948-02025

AL11

H=5,ID=13

 2
90948-02024

AL11

H=3.5,ID=8.5

 8
48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
90948-02025

AL11

H=5,ID=13

 2
90948-02024

AL11

H=3.5,ID=8.5

 8
48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
90948-02025

AL11

H=5,ID=13

 2
90948-02024

AL11

H=3.5,ID=8.5

 8
48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
90948-02025

AL11

H=5,ID=13

 2
90948-02024

AL11

H=3.5,ID=8.5

 8
48817T - COLLAR(FOR STABILIZER REAR BAR)
90387-09003

AL11

 2
48817U - BOLT(FOR REAR STABILIZER)
90101-08037

AL11

 2
48823R - COVER, STABILIZER LINK(FOR REAR)
48832-16010

AL11

 2
Common parts
90101-12039
90170-12193
90201-12452
90252-04001
91611-60816
91651-60820
94110-40800
94110-41000
94120-41000
94182-10800
94512-01200
94531-00800
