AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )

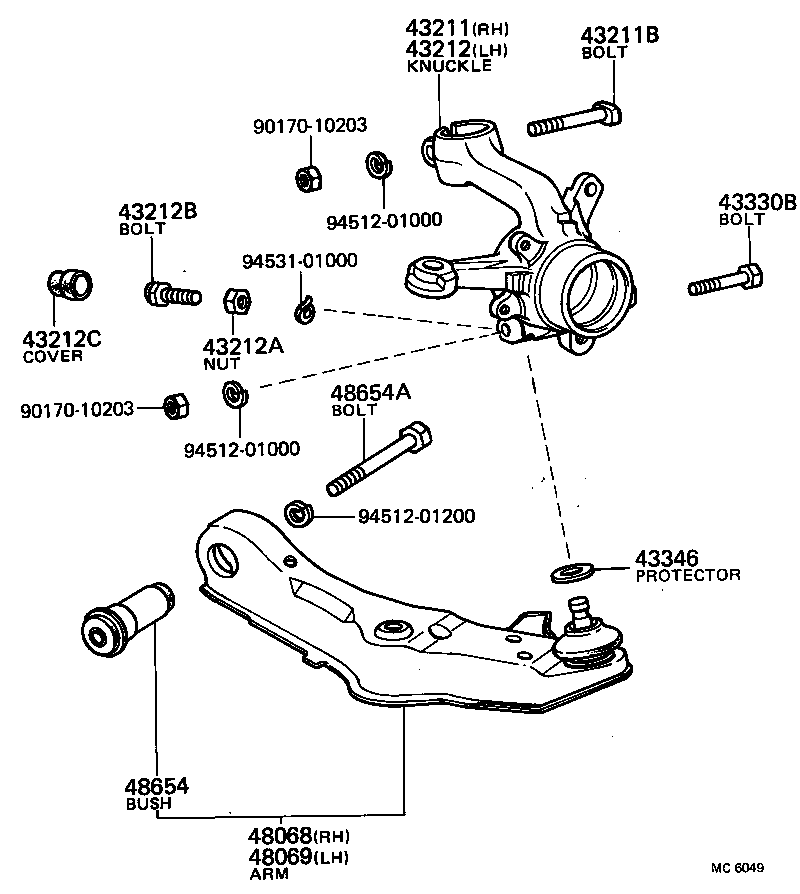

Click highlighted areas on diagram

diagram 43211 43211B 43212 43212A 43212B 43212C 43330B 43346 48068 48069 48654 48654A 9017010203 9017010203 9451201000 9451201000 9451201200 9453101000
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-16010

AL11

 1
43211B - BOLT (FOR ABSORBER SETTING)
90109-10029

AL11

 2
43212 - KNUCKLE, STEERING, LH
43212-16010

AL11

 1
43212A - NUT (FOR FRONT KNUCKLE STOPPER)
90170-10082

AL11

 2
43212B - BOLT (FOR FRONT KNUCKLE STOPPER)
90106-10032

AL11

 2
43212C - COVER, FRONT KNUCKLE STOPPER
45619-14020

AL11

 2
43330B - BOLT, HEXAGON (FOR LOWER BALL JOINT SET)
90101-10051

AL11

 2
43346 - PROTECTOR, LOWER BALL JOINT DUST COVER
43346-16010

AL11

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-16010

AL11

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-16010

AL11

 1
48654 - BUSH, LOWER ARM
48654-16010

AL11

 2
48654A - BOLT, HEXAGON(FOR LOWER ARM)
90101-12035

AL11

 2
Common parts
90170-10203
94512-01000
94512-01200
94531-01000
