AL11L-ZDMRSW (1979)
Toyota Tercel
Production
Jan 1979
-
Apr 1982
Engine
2A
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7901- )LHD

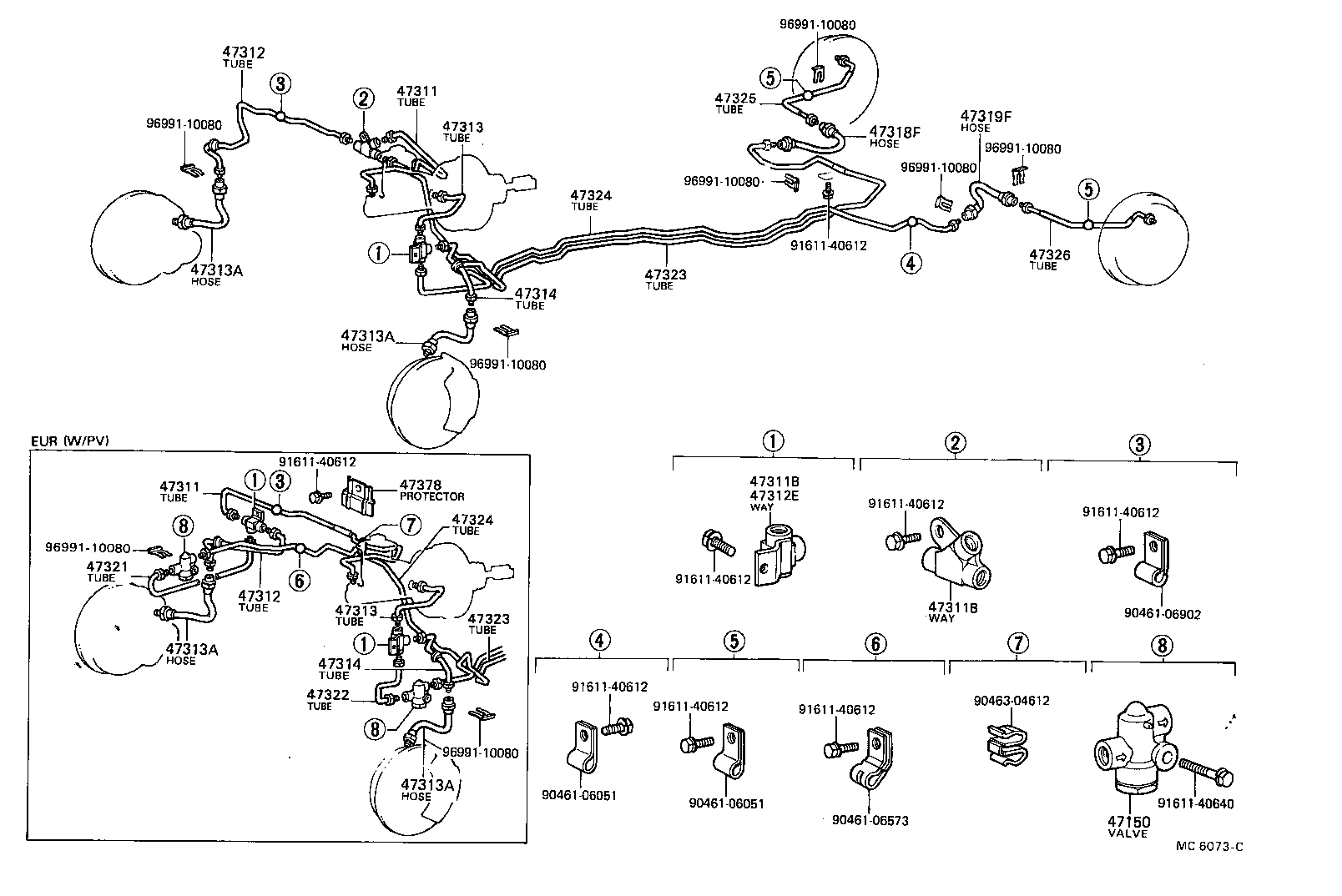

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-16010 |
AL11..EUR |
2 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-16030 |
AL11..EUR W/PV |
1 | ||
| 47311-16020 |
AL11..LHD |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-16030 |
AL11..EUR W/PV |
1 | ||
| 47311-16020 |
AL11..LHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10004 |
AL11..EUR W/PV |
1 | ||
| 90413-10013 |
AL11..LHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10004 |
AL11..EUR W/PV |
1 | ||
| 90413-10013 |
AL11..LHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-16030 |
AL11..EUR W/PV |
1 | ||
| 47312-16020 |
AL11..LHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-16030 |
AL11..EUR W/PV |
1 | ||
| 47312-16020 |
AL11..LHD |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10004 |
AL11 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47321-16020 |
AL11..LHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47321-16020 |
AL11..LHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02364 |
AL11 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02364 |
AL11 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02364 |
AL11 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02364 |
AL11 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47322-16010 |
AL11 |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47322-16010 |
AL11 |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02365 |
AL11 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02365 |
AL11 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47313-16020 |
AL11..EUR W/PV |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47323-16020 |
AL11..EUR W/PV |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-16010 |
AL11 |
1 | ||
| 47314-16020 |
AL11..EUR W/PV |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-16010 |
AL11 |
1 | ||
| 47314-16020 |
AL11..EUR W/PV |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47313-16030 |
AL11..LHD |
1 | ||
| 47325-16010 |
AL11..EUR W/PV |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47313-16030 |
AL11..LHD |
1 | ||
| 47325-16010 |
AL11..EUR W/PV |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47324-16010 |
AL11 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47315-16010 |
AL11 |
1 | ||
| 47378 - PROTECTOR, BRAKE TUBE | ||||
| 47378-16010 |
AL11..EUR W/PV |
1 | ||
| 47378-16020 |
AL11..EUR W/PV |
1 | ||
| Common parts | ||||
| 90461-06051 | ||||
| 90461-06573 | ||||
| 90461-06902 | ||||
| 90463-04612 | ||||
| 91611-40612 | ||||
| 91611-40640 | ||||
| 96991-10080 | ||||
