AL11L-ZDMRSW (1979)
Toyota Tercel
Production
Jan 1979
-
Apr 1982
Engine
2A
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7901- )

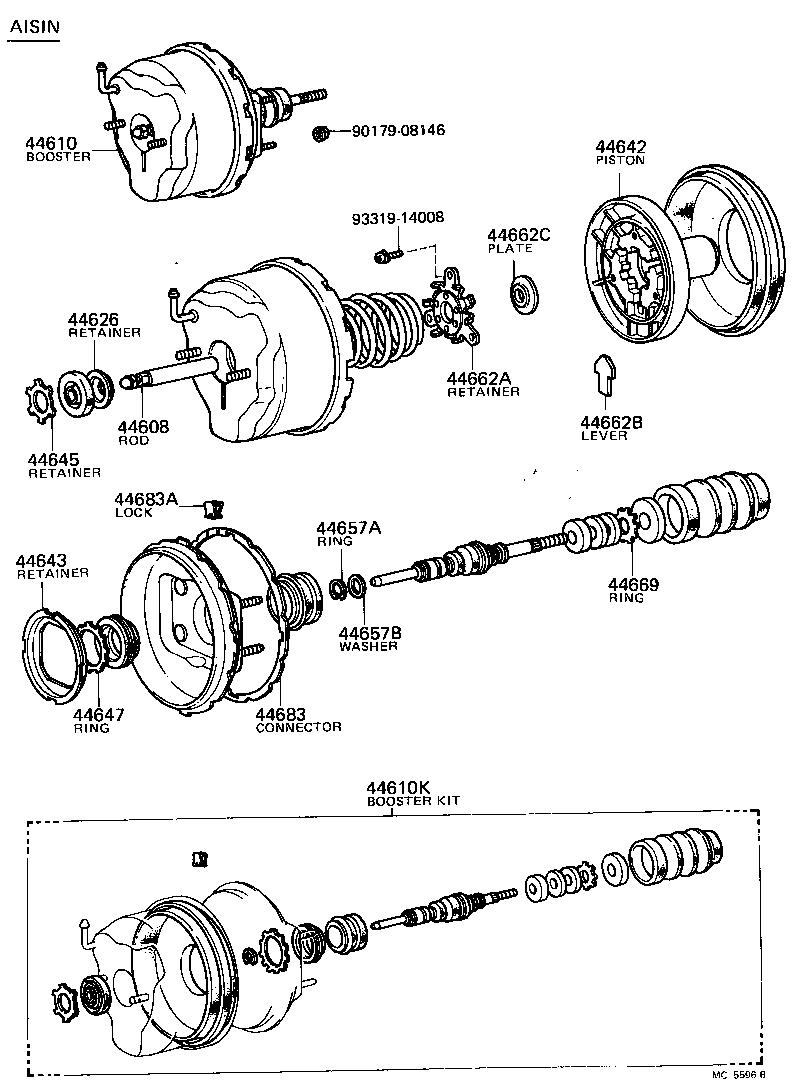

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-14040 |
AL11 JKC |
1 | ||
| 44606-12070 |
AL11 AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-16010 |
AL11 AISIN |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-16010 |
AL11 AISIN |
1 | ||
| 04443-16020 |
AL11 JKC |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
AL11 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-14190 |
AL11 AISIN |
1 | ||
| 44642-20080 |
AL11 JKC |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-60010 |
AL11 |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
AL11 JKC |
1 | ||
| 44628-60010 |
AL11 AISIN |
1 | ||
| 44647 - RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER) | ||||
| 44629-30090 |
AL11 |
1 | ||
| 44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 96150-01600 |
AL11 |
1 | ||
| 44657B - WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 44645-20100 |
AL11 |
1 | ||
| 44662A - RETAINER, REACTION, NO.2 | ||||
| 44662-20100 |
AL11 |
1 | ||
| 44662B - LEVER, REACTION | ||||
| 44661-60010 |
AL11 |
3 | ||
| 44662C - PLATE, REACTION, NO.1 | ||||
| 44653-20100 |
AL11 |
1 | ||
| 44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER | ||||
| 44669-60010 |
AL11 |
1 | ||
| 44683 - CONNECTOR, BOOSTER BODY | ||||
| 44682-20100 |
AL11 |
1 | ||
| 44683A - LOCK, CONNECTOR | ||||
| 44683-20100 |
AL11 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 93319-14008 | ||||

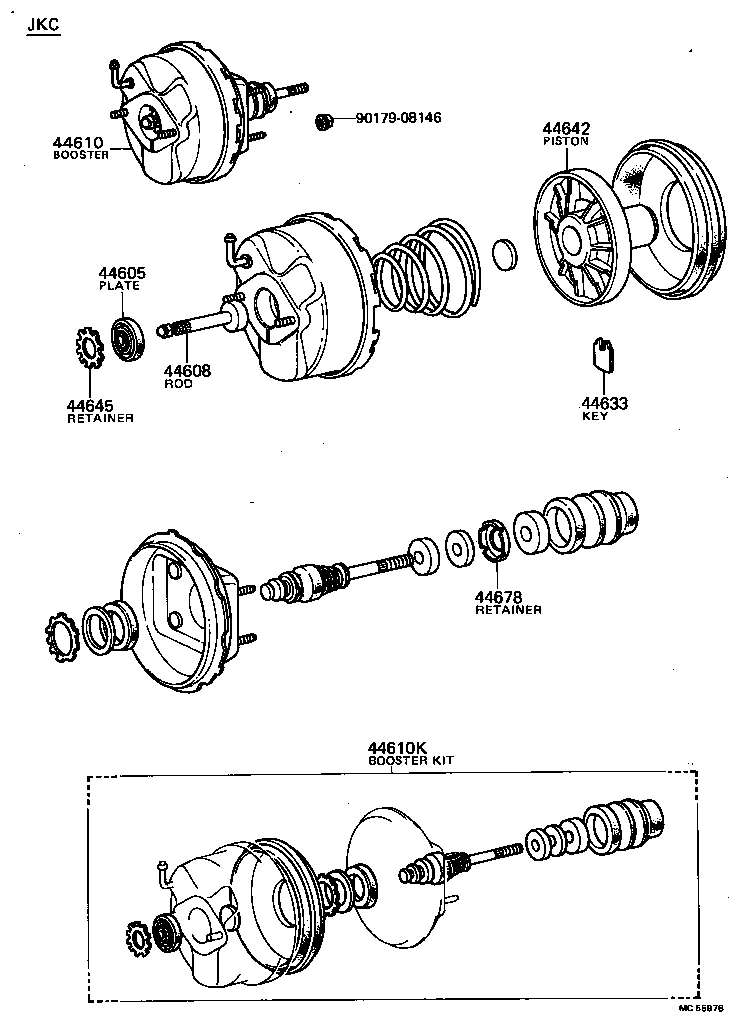

(7901- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-22021 |
AL11 |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-14040 |
AL11 JKC |
1 | ||
| 44606-12070 |
AL11 AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-16010 |
AL11 AISIN |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-16010 |
AL11 AISIN |
1 | ||
| 04443-16020 |
AL11 JKC |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-22020 |
AL11 |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-14190 |
AL11 AISIN |
1 | ||
| 44642-20080 |
AL11 JKC |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-22020 |
AL11 JKC |
1 | ||
| 44628-60010 |
AL11 AISIN |
1 | ||
| 44678 - RETAINER, BOOSTER AIR CLEANER | ||||
| 44678-22020 |
AL11 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||

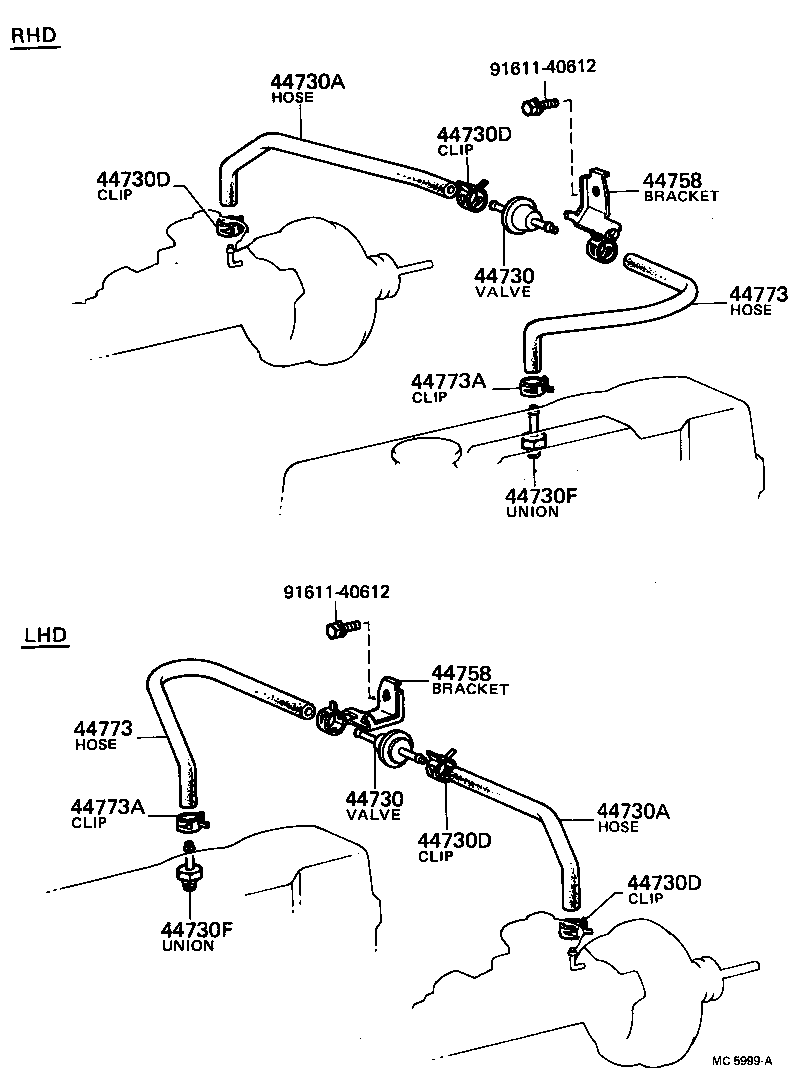

(7901- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
AL11 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
AL11 |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44772-16020 |
AL11..LHD |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44772-16020 |
AL11..LHD |
1 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
AL11 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
AL11 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
AL11 |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16141 |
AL11 |
2 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51237 |
AL11 |
1 | ||
| 90404-51028 |
AL11 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51237 |
AL11 |
1 | ||
| 90404-51028 |
AL11 |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-16020 |
AL11..LHD |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-16020 |
AL11..LHD |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44773-16020 |
AL11..LHD |
1 | ||
| 44773-16021 |
AL11..LHD |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44773-16020 |
AL11..LHD |
1 | ||
| 44773-16021 |
AL11..LHD |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
AL11 |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16141 |
AL11 |
1 | ||
| Common parts | ||||
| 91611-40612 | ||||
