AL11L-ZDMRSW (1979)
Toyota Tercel
Production
Jan 1979
-
Apr 1982
Engine
2A
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7901- )

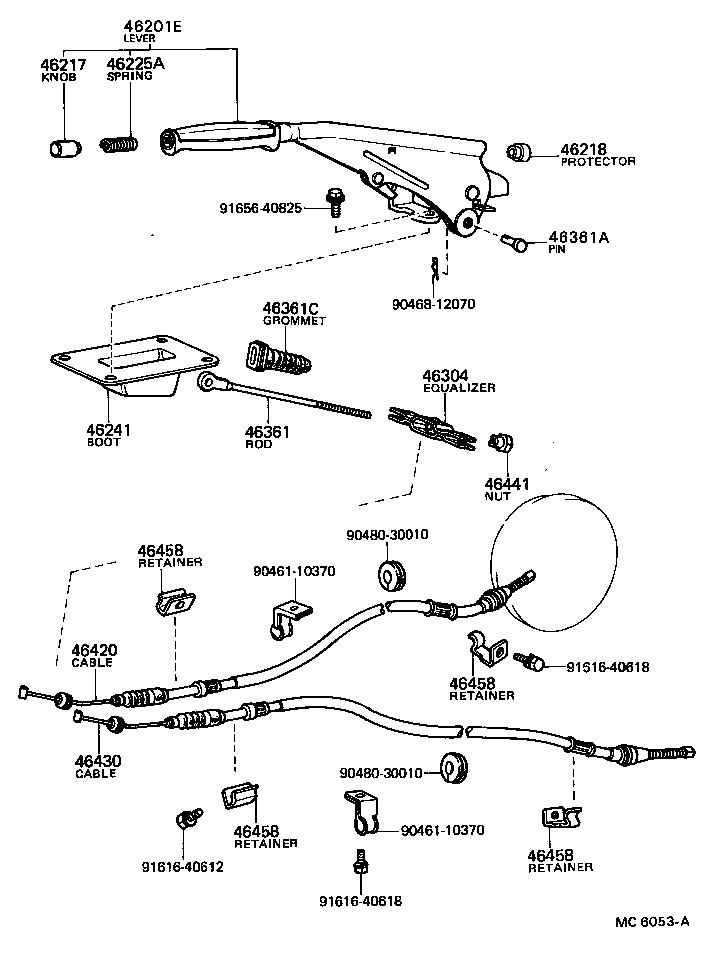

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-1601004 |
AL11 BLUE,BLUE,TRIM8# |
1 | ||
| 46201-1601001 |
AL11 BLACK,BLACK,TRIM2# |
1 | ||
| 46201-1601006 |
AL11 LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 46201-1601014 |
AL11 BLUE,BLUE,TRIM8# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-1002004 |
AL11 BLUE,BLUE,TRIM8# |
1 | ||
| 46217-1002001 |
AL11 BLACK,BLACK,TRIM2# |
1 | ||
| 46217-1002006 |
AL11 LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 46217-1002014 |
AL11 BLUE,BLUE,TRIM8# |
1 | ||
| 46218 - PROTECTOR, PARKING BRAKE LEVER EDGE | ||||
| 46218-16010 |
AL11 |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10745 |
AL11 |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-16010 |
AL11 |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46304-16010 |
AL11 |
1 | ||
| 46361 - ROD, PARKING BRAKE PULL | ||||
| 46361-16010 |
AL11 |
1 | ||
| 46361A - PIN, PARKING BRAKE PULL ROD | ||||
| 90240-08037 |
AL11 |
1 | ||
| 46361C - GROMMET(FOR PARKING BRAKE PULL ROD) | ||||
| 90480-01429 |
AL11 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-16020 |
AL11 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-16011 |
AL11 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-16010 |
AL11 |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
AL11 FR,L=29.5 |
2 | ||
| 46458-16010 |
AL11 RR,L=20 |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
AL11 FR,L=29.5 |
2 | ||
| 46458-16010 |
AL11 RR,L=20 |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
AL11 FR,L=29.5 |
2 | ||
| 46458-16010 |
AL11 RR,L=20 |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-20020 |
AL11 FR,L=29.5 |
2 | ||
| 46458-16010 |
AL11 RR,L=20 |
2 | ||
| Common parts | ||||
| 90461-10370 | ||||
| 90468-12070 | ||||
| 90480-30010 | ||||
| 91616-40612 | ||||
| 91616-40618 | ||||
| 91656-40825 | ||||
