AL11L-ZDMRSW (1979)
Toyota Tercel
(7901- )LHD

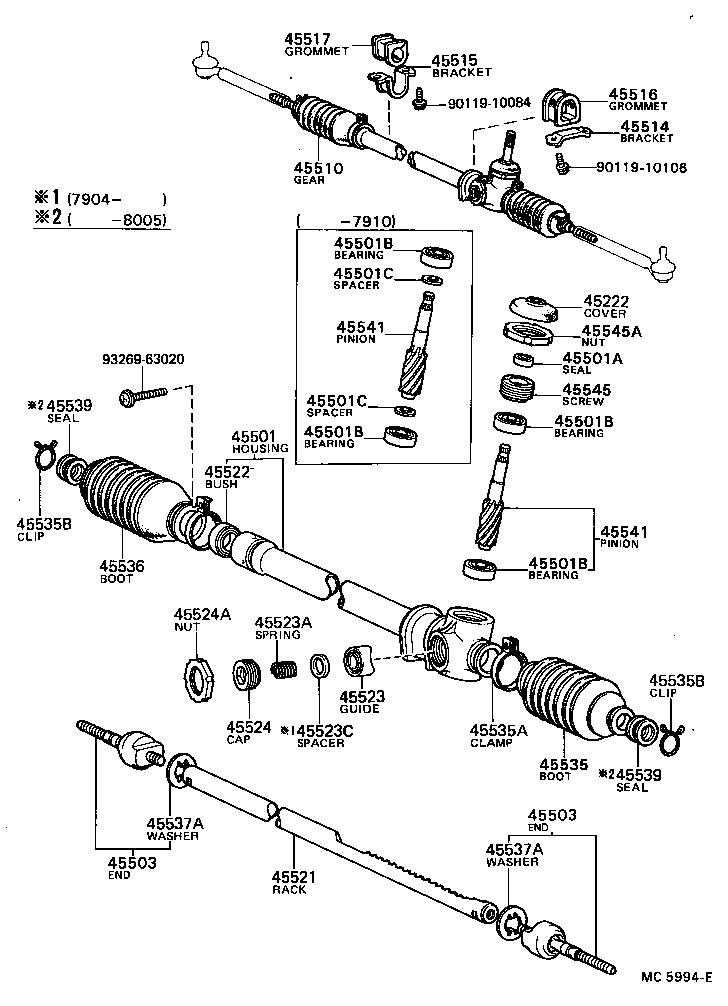

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-16010 |
AL11 |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-16020 |
AL11..LHD |
1 | ||
| 45501-16180 |
AL11..LHD |
1 | ||
| 45501-16200 |
AL11..LHD CONSTANT TYPE |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-15001 |
AL11 |
1 | ||
| 45501B - BEARING, RADIAL BALL(FOR STEERING RACK HOUSING) | ||||
| 90363-13001 |
AL11 LWR |
1 | ||
| 90363-15003 |
AL11 UPR |
1 | ||
| 90363-15002 |
AL11 LWR |
1 | ||
| 45501B - BEARING, RADIAL BALL(FOR STEERING RACK HOUSING) | ||||
| 90363-13001 |
AL11 LWR |
1 | ||
| 90363-15003 |
AL11 UPR |
1 | ||
| 90363-15002 |
AL11 LWR |
1 | ||
| 45501B - BEARING, RADIAL BALL(FOR STEERING RACK HOUSING) | ||||
| 90363-13001 |
AL11 LWR |
1 | ||
| 90363-15003 |
AL11 UPR |
1 | ||
| 90363-15002 |
AL11 LWR |
1 | ||
| 45501B - BEARING, RADIAL BALL(FOR STEERING RACK HOUSING) | ||||
| 90363-13001 |
AL11 LWR |
1 | ||
| 90363-15003 |
AL11 UPR |
1 | ||
| 90363-15002 |
AL11 LWR |
1 | ||
| 45501C - SPACER(FOR STEERING RACK HOUSING) | ||||
| 90560-15003 |
AL11 |
2 | ||
| 45501C - SPACER(FOR STEERING RACK HOUSING) | ||||
| 90560-15003 |
AL11 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19015 |
AL11 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19015 |
AL11 |
2 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-16020 |
AL11..LHD |
1 | ||
| 45510-16021 |
AL11..LHD |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-16010 |
AL11 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-16010 |
AL11 |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-10010 |
AL11 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-16010 |
AL11 |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-16020 |
AL11..LHD |
1 | ||
| 45521-16021 |
AL11..LHD |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-10010 |
AL11 |
1 | ||
| 45522-10030 |
AL11 |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-16011 |
AL11 |
1 | ||
| 45523-10010 |
AL11 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-23007 |
AL11 |
1 | ||
| 45523C - SPACER(FOR RACK GUIDE) | ||||
| 90560-23003 |
AL11 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
AL11 |
1 | ||
| 45524-10010 |
AL11 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36001 |
AL11 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-10020 |
AL11 |
1 | ||
| 45535-10021 |
AL11 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
AL11 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AL11 |
2 | ||
| 90467-28002 |
AL11 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AL11 |
2 | ||
| 90467-28002 |
AL11 |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-10020 |
AL11 |
1 | ||
| 45536-10021 |
AL11 |
1 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14002 |
AL11 |
2 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14002 |
AL11 |
2 | ||
| 45539 - GUIDE, REAR STEERING CONTROL CABLE, NO.1 | ||||
| 45539-10010 |
AL11 |
2 | ||
| 45539 - GUIDE, REAR STEERING CONTROL CABLE, NO.1 | ||||
| 45539-10010 |
AL11 |
2 | ||
| 45541 - PINION, STEERING | ||||
| 45541-16901 |
AL11..LHD |
1 | ||
| 45541-16020 |
AL11..LHD |
1 | ||
| 45541 - PINION, STEERING | ||||
| 45541-16901 |
AL11..LHD |
1 | ||
| 45541-16020 |
AL11..LHD |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-10010 |
AL11 |
1 | ||
| 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-38001 |
AL11 |
1 | ||
| Common parts | ||||
| 90119-10084 | ||||
| 90119-10106 | ||||
| 93269-63020 | ||||

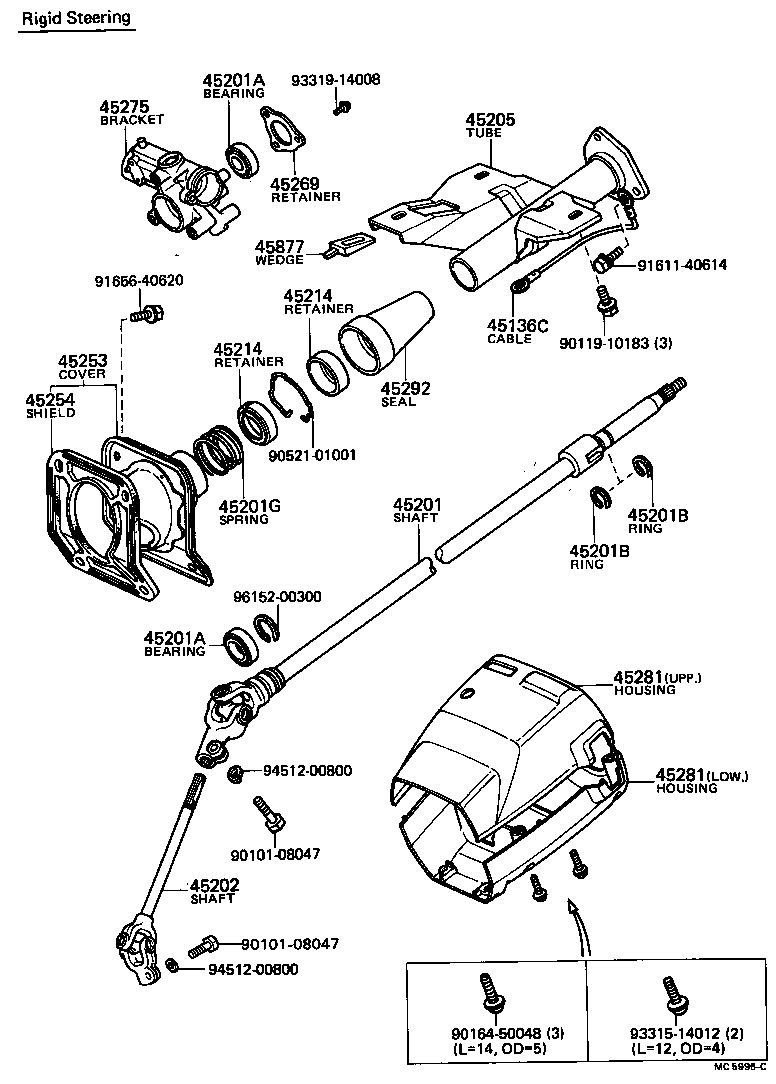

(7901- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45136C - CABLE, BOND(FOR HORN EARTH) | ||||
| 90980-07129 |
AL11 |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-16010 |
AL11 COLAPSIBLE |
1 | ||
| 45210-16020 |
AL11..STD RIGID |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-30015 |
AL11 LWR |
1 | ||
| 90363-18038 |
AL11 UPR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-30015 |
AL11 LWR |
1 | ||
| 90363-18038 |
AL11 UPR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
AL11 T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
AL11 T=1.20,T=1.2 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
AL11 T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
AL11 T=1.20,T=1.2 |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-32003 |
AL11 |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45202-16020 |
AL11..LHD |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-16020 |
AL11..STD RIGID |
1 | ||
| 45205-16010 |
AL11 COLAPSIBLE |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-10010 |
AL11 |
2 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-10010 |
AL11 |
2 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-16020 |
AL11..LHD |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-16010 |
AL11 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
AL11 |
1 | ||
| 45269-20010 |
AL11 |
1 | ||
| 45269-10010 |
AL11 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45275-10030 |
AL11..LHD |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1005001 |
AL11..LHD UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45287-1005005 |
AL11..LHD LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-1005004 |
AL11..LHD UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1005004 |
AL11..LHD LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1005006 |
AL11..LHD UPR,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 45287-1005001 |
AL11..LHD LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-1005005 |
AL11..LHD UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-1005006 |
AL11..LHD LWR,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1005001 |
AL11..LHD UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45287-1005005 |
AL11..LHD LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-1005004 |
AL11..LHD UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1005004 |
AL11..LHD LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1005006 |
AL11..LHD UPR,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 45287-1005001 |
AL11..LHD LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-1005005 |
AL11..LHD UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-1005006 |
AL11..LHD LWR,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-10010 |
AL11 |
1 | ||
| 45877 - WEDGE, CASTER(FOR STEERING COLUMN TUBE SETTING) | ||||
| 45877-12010 |
AL11 |
1 | ||
| Common parts | ||||
| 90101-08047 | ||||
| 90119-10183 | ||||
| 90164-50048 | ||||
| 90521-01001 | ||||
| 91611-40614 | ||||
| 91656-40620 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94512-00800 | ||||
| 96152-00300 | ||||

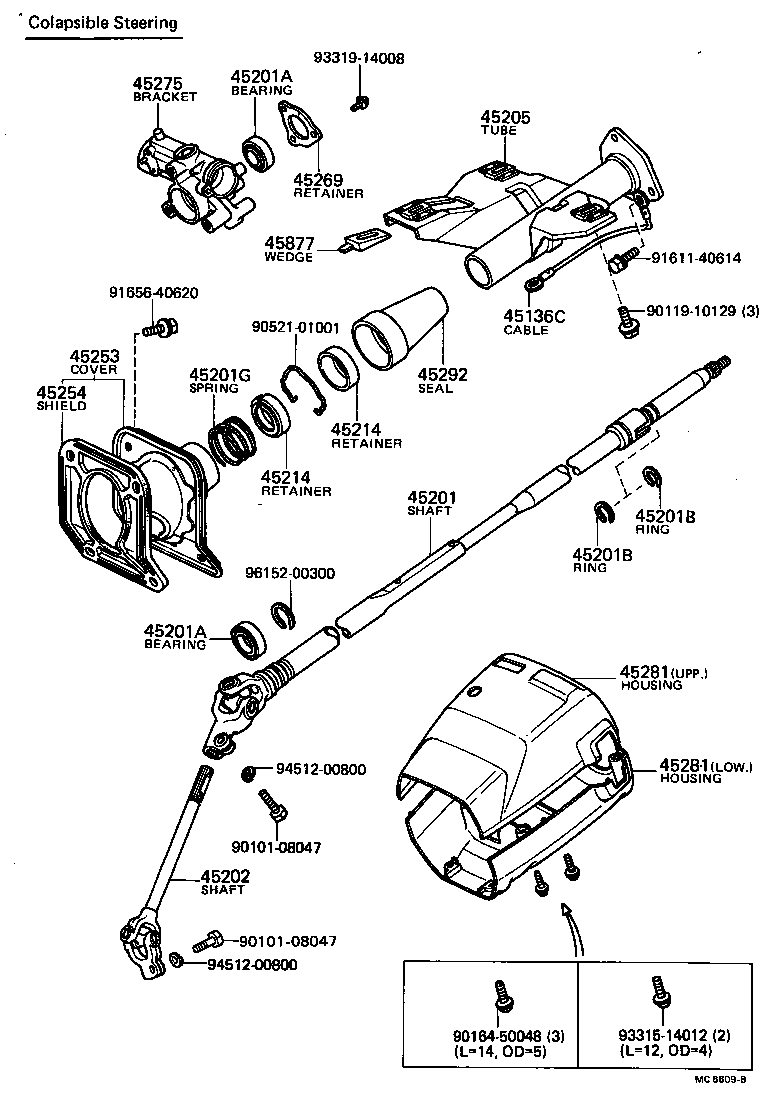

(7901- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45136C - CABLE, BOND(FOR HORN EARTH) | ||||
| 90980-07129 |
AL11 |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-16010 |
AL11 COLAPSIBLE |
1 | ||
| 45210-16020 |
AL11..STD RIGID |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-30015 |
AL11 LWR |
1 | ||
| 90363-18038 |
AL11 UPR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-30015 |
AL11 LWR |
1 | ||
| 90363-18038 |
AL11 UPR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
AL11 T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
AL11 T=1.20,T=1.2 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17196 |
AL11 T=1.35-1.45,T=1.4 |
2 | ||
| 90520-17042 |
AL11 T=1.20,T=1.2 |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-32003 |
AL11 |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45202-16020 |
AL11..LHD |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-16020 |
AL11..STD RIGID |
1 | ||
| 45205-16010 |
AL11 COLAPSIBLE |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-10010 |
AL11 |
2 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-10010 |
AL11 |
2 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-16020 |
AL11..LHD |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-16010 |
AL11 |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
AL11 |
1 | ||
| 45269-20010 |
AL11 |
1 | ||
| 45269-10010 |
AL11 |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45275-10030 |
AL11..LHD |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1005001 |
AL11..LHD UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45287-1005005 |
AL11..LHD LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-1005004 |
AL11..LHD UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1005004 |
AL11..LHD LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1005006 |
AL11..LHD UPR,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 45287-1005001 |
AL11..LHD LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-1005005 |
AL11..LHD UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-1005006 |
AL11..LHD LWR,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-1005001 |
AL11..LHD UPR,BLACK,BLACK,TRIM2# |
1 | ||
| 45287-1005005 |
AL11..LHD LWR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45286-1005004 |
AL11..LHD UPR,BLUE,BLUE,TRIM8# |
1 | ||
| 45287-1005004 |
AL11..LHD LWR,BLUE,BLUE,TRIM8# |
1 | ||
| 45286-1005006 |
AL11..LHD UPR,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 45287-1005001 |
AL11..LHD LWR,BLACK,BLACK,TRIM2# |
1 | ||
| 45286-1005005 |
AL11..LHD UPR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 45287-1005006 |
AL11..LHD LWR,LIGHT BROWN,BROWN,TRIM4# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-10010 |
AL11 |
1 | ||
| 45877 - WEDGE, CASTER(FOR STEERING COLUMN TUBE SETTING) | ||||
| 45877-12010 |
AL11 |
1 | ||
| Common parts | ||||
| 90101-08047 | ||||
| 90119-10129 | ||||
| 90164-50048 | ||||
| 90521-01001 | ||||
| 91611-40614 | ||||
| 91656-40620 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94512-00800 | ||||
| 96152-00300 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
