AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )

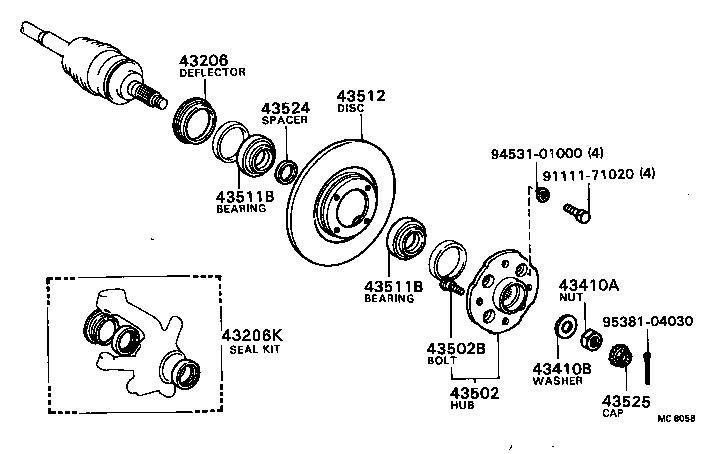

Click highlighted areas on diagram

diagram 43206 43206K 43410A 43410B 43502 43502B 43511B 43511B 43512 43524 43525 9111171020 9453101000 9538104030
Part # Description Qty Price
43206 - DEFLECTOR SUB-ASSY, FRONT WHEEL BEARING DUST
43206-16010

AL11

 2
43206K - SEAL KIT, FRONT AXLE OIL
04422-16010

AL11

 2
43410A - NUT (FOR AXLE HUB & DRIVE SHAFT SETTING)
90170-19185

AL11

 2
43410B - WASHER (FOR AXLE HUB & DRIVE SHAFT SETTING)
90201-20006

AL11

 2
43502 - HUB SUB-ASSY, FRONT AXLE
43502-16010

AL11

 2
43502B - BOLT, HUB (FOR FRONT AXLE)
90942-02047

AL11

 8
90942-02036

AL11

 8
43511B - BEARING (FOR FRONT AXLE HUB)
90368-38001

AL11

 4
43511B - BEARING (FOR FRONT AXLE HUB)
90368-38001

AL11

 4
43512 - DISC, FRONT
43512-16020

AL11

 2
43524 - SPACER, FRONT WHEEL INNER BEARING
43524-16040

AL11

T=8.145-8.155

 2
43524-16090

AL11

T=8.345-8.355

 2
43524-16060

AL11

T=8.225-8.235

 2
43524-16110

AL11

T=8.425-8.435

 2
43524-16020

AL11

T=8.065-8.075

 2
43524-16130

AL11

T=8.505-8.515

 2
43524-16180

AL11

T=8.705-8.715

 2
43524-16080

AL11

T=8.305-8.315

 2
43524-16050

AL11

T=8.185-8.195

 2
43524-16120

AL11

T=8.465-8.475

 2
43524-16160

AL11

T=8.625-8.635

 2
43524-16010

AL11

T=8.025-8.035

 2
43524-16140

AL11

T=8.545-8.555

 2
43524-16070

AL11

T=8.265-8.275

 2
43524-16030

AL11

T=8.105-8.115

 2
43524-16100

AL11

T=8.385-8.395

 2
43524-16190

AL11

T=8.745-8.755

 2
43524-16150

AL11

T=8.585-8.595

 2
43524-16170

AL11

T=8.665-8.675

 2
43524-16200

AL11

T=8.785-8.795

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-16010

AL11

 2
Common parts
91111-71020
94531-01000
95381-04030
