AL11L-ZDMRSW (1979)
Toyota Tercel
Production
Jan 1979
-
Apr 1982
Engine
2A
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7901- )

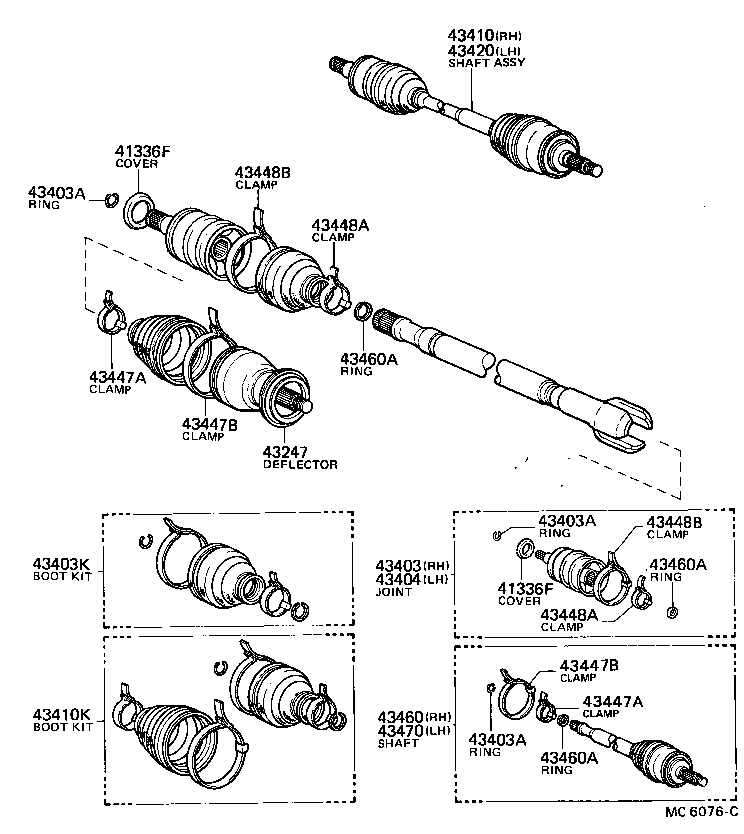

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET) | ||||
| 41336-16010 |
AL11 |
2 | ||
| 41336F - COVER, DUST(FOR FRONT AXLE INBOARD JOINT SET) | ||||
| 41336-16010 |
AL11 |
2 | ||
| 43247 - DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 | ||||
| 43247-16010 |
AL11 |
2 | ||
| 43403 - JOINT SET, FRONT AXLE INBOARD, RH | ||||
| 43403-19015 |
AL11 |
1 | ||
| 43403A - RING, SHAFT SNAP (FOR FR AXLE INBOARD JOINT SET SETTING | ||||
| 90521-23001 |
AL11 |
2 | ||
| 43403A - RING, SHAFT SNAP (FOR FR AXLE INBOARD JOINT SET SETTING | ||||
| 90521-23001 |
AL11 |
2 | ||
| 43403A - RING, SHAFT SNAP (FOR FR AXLE INBOARD JOINT SET SETTING | ||||
| 90521-23001 |
AL11 |
2 | ||
| 43403K - BOOT KIT, FRONT AXLE INBOARD JOINT SET | ||||
| 04438-16011 |
AL11 |
2 | ||
| 43404 - JOINT SET, FRONT AXLE INBOARD, LH | ||||
| 43403-19015 |
AL11 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-16011 |
AL11 |
1 | ||
| 43410K - BOOT KIT, FRONT DRIVE SHAFT | ||||
| 04438-16021 |
AL11 |
2 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-16011 |
AL11 |
1 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90463-04020 |
AL11 |
2 | ||
| 43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90463-04020 |
AL11 |
2 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90463-04022 |
AL11 |
2 | ||
| 43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING | ||||
| 90463-04022 |
AL11 |
2 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90463-04020 |
AL11 |
2 | ||
| 43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90463-04020 |
AL11 |
2 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90463-04021 |
AL11 |
2 | ||
| 43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING) | ||||
| 90463-04021 |
AL11 |
2 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-19016 |
AL11 |
1 | ||
| 43460A - RING, SNAP (FOR FRONT DRIVE OUTBOARD JOINT SHAFT) | ||||
| 90520-22001 |
AL11 |
2 | ||
| 43460A - RING, SNAP (FOR FRONT DRIVE OUTBOARD JOINT SHAFT) | ||||
| 90520-22001 |
AL11 |
2 | ||
| 43460A - RING, SNAP (FOR FRONT DRIVE OUTBOARD JOINT SHAFT) | ||||
| 90520-22001 |
AL11 |
2 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-19016 |
AL11 |
1 | ||
