AL11L-ZDMRSW (1979)
Toyota Tercel
(7901- )MTM

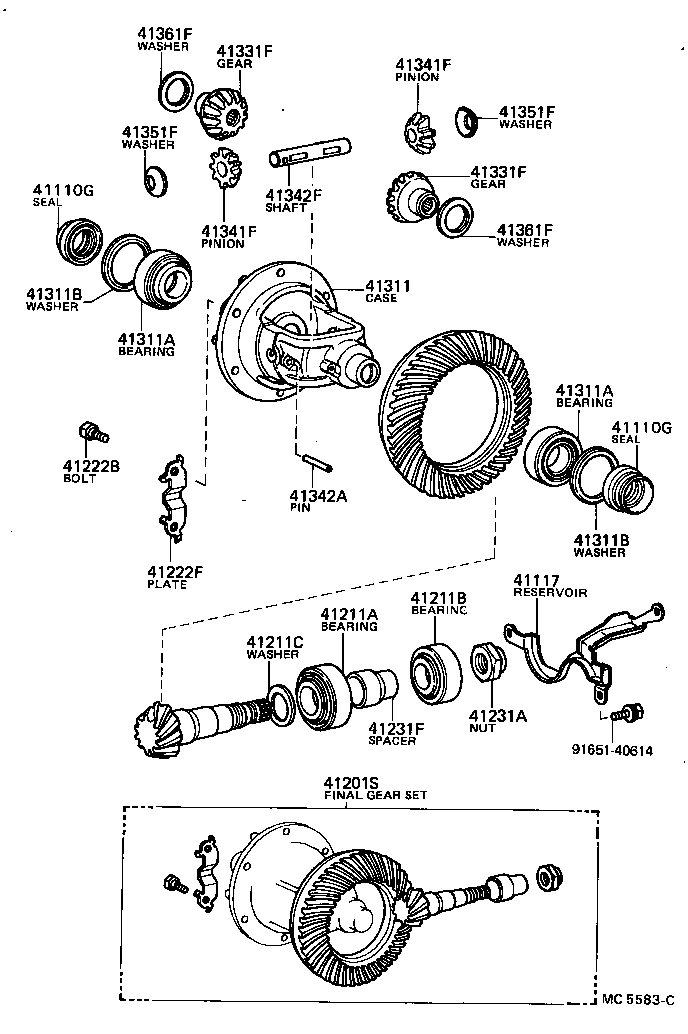

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110G - SEAL, OIL (FOR DIFFERENTIAL SIDE) | ||||
| 90311-32006 |
AL11 |
2 | ||
| 90311-32004 |
AL11 |
2 | ||
| 41110G - SEAL, OIL (FOR DIFFERENTIAL SIDE) | ||||
| 90311-32006 |
AL11 |
2 | ||
| 90311-32004 |
AL11 |
2 | ||
| 41117 - RESERVOIR, DIFFERENTIAL OIL | ||||
| 41117-16010 |
AL11..MTM |
1 | ||
| 41201S - FINAL GEAR KIT, DIFFERENTIAL, FRONT | ||||
| 41201-19295 |
AL11 R=41:11 |
1 | ||
| 41201-19296 |
AL11..MTM R=41:11 |
1 | ||
| 41211A - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT) | ||||
| 90368-33002 |
AL11 |
1 | ||
| 41211B - BEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR) | ||||
| 90368-28002 |
AL11 |
1 | ||
| 41211C - GEAR, DIFFERENTIAL RING | ||||
| 90201-34004 |
AL11 T=1.59,T=1.59 |
1 | ||
| 90201-34003 |
AL11 T=1.56,T=1.56 |
1 | ||
| 90201-34002 |
AL11 T=1.53,T=1.53 |
1 | ||
| 90201-34001 |
AL11 T=1.50,T=1.50 |
1 | ||
| 90201-34010 |
AL11 T=1.77,T=1.77 |
1 | ||
| 90201-34005 |
AL11 T=1.62,T=1.62 |
1 | ||
| 90201-34012 |
AL11 T=1.83,T=1.83 |
1 | ||
| 90201-34007 |
AL11 T=1.68,T=1.68 |
1 | ||
| 90201-34011 |
AL11 T=1.80,T=1.80 |
1 | ||
| 90201-34013 |
AL11 T=1.86,T=1.86 |
1 | ||
| 90201-34009 |
AL11 T=1.74,T=1.74 |
1 | ||
| 90201-34015 |
AL11 T=1.92,T=1.92 |
1 | ||
| 90201-34008 |
AL11 T=1.71,T=1.71 |
1 | ||
| 90201-34014 |
AL11 T=1.89,T=1.89 |
1 | ||
| 90201-34016 |
AL11 T=1.95,T=1.95 |
1 | ||
| 90201-34006 |
AL11 T=1.65,T=1.65 |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11365 |
AL11 |
6 | ||
| 41222F - PLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-16010 |
AL11 |
3 | ||
| 41231A - NUT, DRIVE PINION LOCK | ||||
| 90179-28001 |
AL11 |
1 | ||
| 41231F - SPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-16010 |
AL11 |
1 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41311-16011 |
AL11 |
1 | ||
| 41311-16010 |
AL11 |
1 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90366-35002 |
AL11 |
2 | ||
| 41311A - BEARING (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90366-35002 |
AL11 |
2 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90201-40001 |
AL11 T=2.62,T=2.62 |
2 | ||
| 90201-40004 |
AL11 T=2.71,T=2.71 |
2 | ||
| 90201-40003 |
AL11 T=2.68,T=2.68 |
2 | ||
| 90201-40005 |
AL11 T=2.74,T=2.74 |
2 | ||
| 90201-40011 |
AL11 T=2.92,T=2.92 |
2 | ||
| 90201-40002 |
AL11 T=2.65,T=2.65 |
2 | ||
| 90201-40010 |
AL11 T=2.89,T=2.89 |
2 | ||
| 90201-40008 |
AL11 T=2.83,T=2.83 |
2 | ||
| 90201-40019 |
AL11 T=3.16,T=3.16 |
2 | ||
| 90201-40013 |
AL11 T=2.98,T=2.98 |
2 | ||
| 90201-40012 |
AL11 T=2.95,T=2.95 |
2 | ||
| 90201-40007 |
AL11 T=2.80,T=2.80 |
2 | ||
| 90201-40016 |
AL11 T=3.07,T=3.07 |
2 | ||
| 90201-40022 |
AL11 T=3.25,T=3.25 |
2 | ||
| 90201-40009 |
AL11 T=2.86,T=2.86 |
2 | ||
| 90201-40020 |
AL11 T=3.19,T=3.19 |
2 | ||
| 90201-40017 |
AL11 T=3.10,T=3.10 |
2 | ||
| 90201-40021 |
AL11 T=3.22,T=3.22 |
2 | ||
| 90201-40006 |
AL11 T=2.77,T=2.77 |
2 | ||
| 90201-40024 |
AL11 T=3.04,T=3.04 |
2 | ||
| 90201-40018 |
AL11 T=3.13,T=3.13 |
2 | ||
| 90201-40014 |
AL11 T=3.01,T=3.01 |
2 | ||
| 90201-40023 |
AL11 T=3.28,T=3.28 |
2 | ||
| 41311B - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE) | ||||
| 90201-40001 |
AL11 T=2.62,T=2.62 |
2 | ||
| 90201-40004 |
AL11 T=2.71,T=2.71 |
2 | ||
| 90201-40003 |
AL11 T=2.68,T=2.68 |
2 | ||
| 90201-40005 |
AL11 T=2.74,T=2.74 |
2 | ||
| 90201-40011 |
AL11 T=2.92,T=2.92 |
2 | ||
| 90201-40002 |
AL11 T=2.65,T=2.65 |
2 | ||
| 90201-40010 |
AL11 T=2.89,T=2.89 |
2 | ||
| 90201-40008 |
AL11 T=2.83,T=2.83 |
2 | ||
| 90201-40019 |
AL11 T=3.16,T=3.16 |
2 | ||
| 90201-40013 |
AL11 T=2.98,T=2.98 |
2 | ||
| 90201-40012 |
AL11 T=2.95,T=2.95 |
2 | ||
| 90201-40007 |
AL11 T=2.80,T=2.80 |
2 | ||
| 90201-40016 |
AL11 T=3.07,T=3.07 |
2 | ||
| 90201-40022 |
AL11 T=3.25,T=3.25 |
2 | ||
| 90201-40009 |
AL11 T=2.86,T=2.86 |
2 | ||
| 90201-40020 |
AL11 T=3.19,T=3.19 |
2 | ||
| 90201-40017 |
AL11 T=3.10,T=3.10 |
2 | ||
| 90201-40021 |
AL11 T=3.22,T=3.22 |
2 | ||
| 90201-40006 |
AL11 T=2.77,T=2.77 |
2 | ||
| 90201-40024 |
AL11 T=3.04,T=3.04 |
2 | ||
| 90201-40018 |
AL11 T=3.13,T=3.13 |
2 | ||
| 90201-40014 |
AL11 T=3.01,T=3.01 |
2 | ||
| 90201-40023 |
AL11 T=3.28,T=3.28 |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-16010 |
AL11 |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-16010 |
AL11 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-20011 |
AL11 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-20011 |
AL11 |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-04053 |
AL11 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-16010 |
AL11 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12010 |
AL11 |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-12010 |
AL11 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-12020 |
AL11 T=1.55,T=1.53-1.57 |
2 | ||
| 41361-12010 |
AL11 T=1.50,T=1.48-1.52 |
2 | ||
| 41361-12040 |
AL11 T=1.65,T=1.63-1.67 |
2 | ||
| 41361-12050 |
AL11 T=1.70,T=1.68-1.72 |
2 | ||
| 41361-12030 |
AL11 T=1.60,T=1.58-1.62 |
2 | ||
| 41361-12060 |
AL11 T=1.75,T=1.73-1.77 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-12020 |
AL11 T=1.55,T=1.53-1.57 |
2 | ||
| 41361-12010 |
AL11 T=1.50,T=1.48-1.52 |
2 | ||
| 41361-12040 |
AL11 T=1.65,T=1.63-1.67 |
2 | ||
| 41361-12050 |
AL11 T=1.70,T=1.68-1.72 |
2 | ||
| 41361-12030 |
AL11 T=1.60,T=1.58-1.62 |
2 | ||
| 41361-12060 |
AL11 T=1.75,T=1.73-1.77 |
2 | ||
| Common parts | ||||
| 91651-40614 | ||||

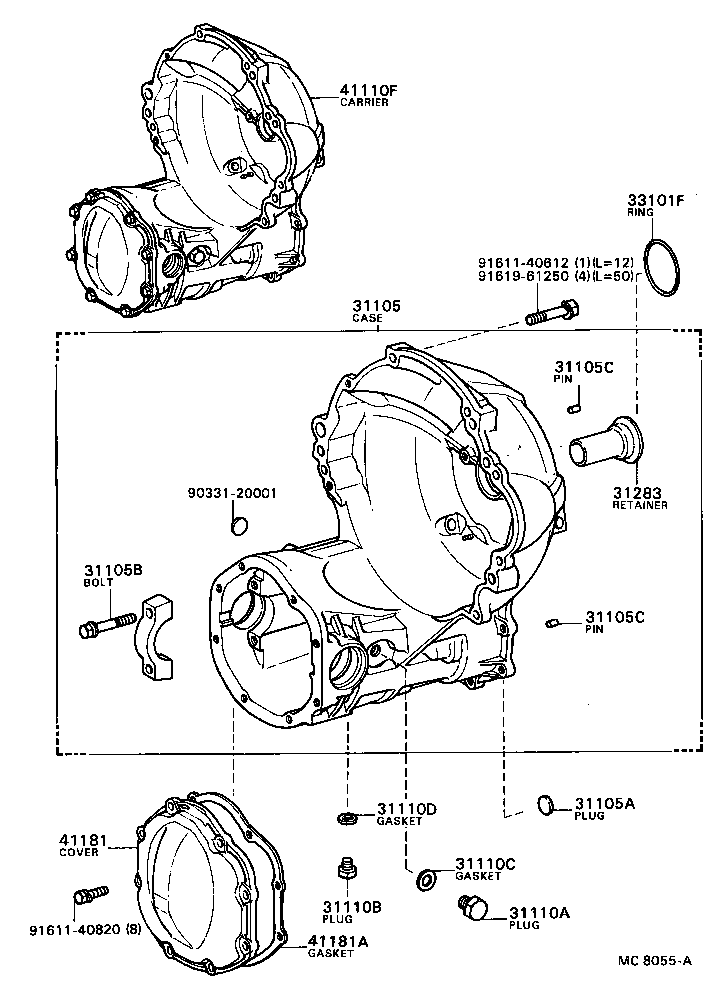

(7901-7906)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105 - CASE SUB-ASSY, TRANSAXLE(MTM) | ||||
| 31105-16011 |
AL11..MTM |
1 | ||
| 31105B - BOLT, HEXAGON(FOR DIFFERENTIAL BEARING CAP SETTING) | ||||
| 90105-10008 |
AL11..MTM |
4 | ||
| 31105C - PIN, STRAIGHT(FOR TRANSAXLE CASE) | ||||
| 90250-10232 |
AL11..MTM |
2 | ||
| 31105C - PIN, STRAIGHT(FOR TRANSAXLE CASE) | ||||
| 90250-10232 |
AL11..MTM |
2 | ||
| 31110A - PLUG(FOR DIFFERENTIAL FILLER) | ||||
| 90341-18002 |
AL11 |
1 | ||
| 90341-18006 |
AL11..MTM |
1 | ||
| 31110B - PLUG(FOR DIFFERENTIAL DRAIN) | ||||
| 90341-18057 |
AL11..MTM |
1 | ||
| 31110C - GASKET(FOR DIFFERENTIAL FILLER) | ||||
| 12157-10010 |
AL11..MTM |
1 | ||
| 31110D - GASKET(FOR DIFFERENTIAL DRAIN) | ||||
| 12157-10010 |
AL11..MTM |
1 | ||
| 31283 - RETAINER, CLUTCH RELEASE BEARING HUB | ||||
| 31283-16010 |
AL11..MTM |
1 | ||
| 33101F - RING, O(FOR INPUT FRONT) | ||||
| 90301-54002 |
AL11..MTM |
1 | ||
| 41110F - CARRIER ASSY, DIFFERENTIAL, FRONT | ||||
| 41110-16021 |
AL11..MTM *AXC=Y302,R=41:11 |
1 | ||
| 41110-16020 |
AL11 *AXC=Y302,R=41:11 |
1 | ||
| 41181 - COVER, FRONT DIFFERENTIAL CARRIER | ||||
| 41181-16020 |
AL11 |
1 | ||
| 41181-16010 |
AL11 |
1 | ||
| 41181A - GASKET, FRONT DIFFERENTIAL CARRIER COVER | ||||
| 41182-16010 |
AL11 |
1 | ||
| Common parts | ||||
| 90331-20001 | ||||
| 91611-40612 | ||||
| 91611-40820 | ||||
| 91619-61250 | ||||

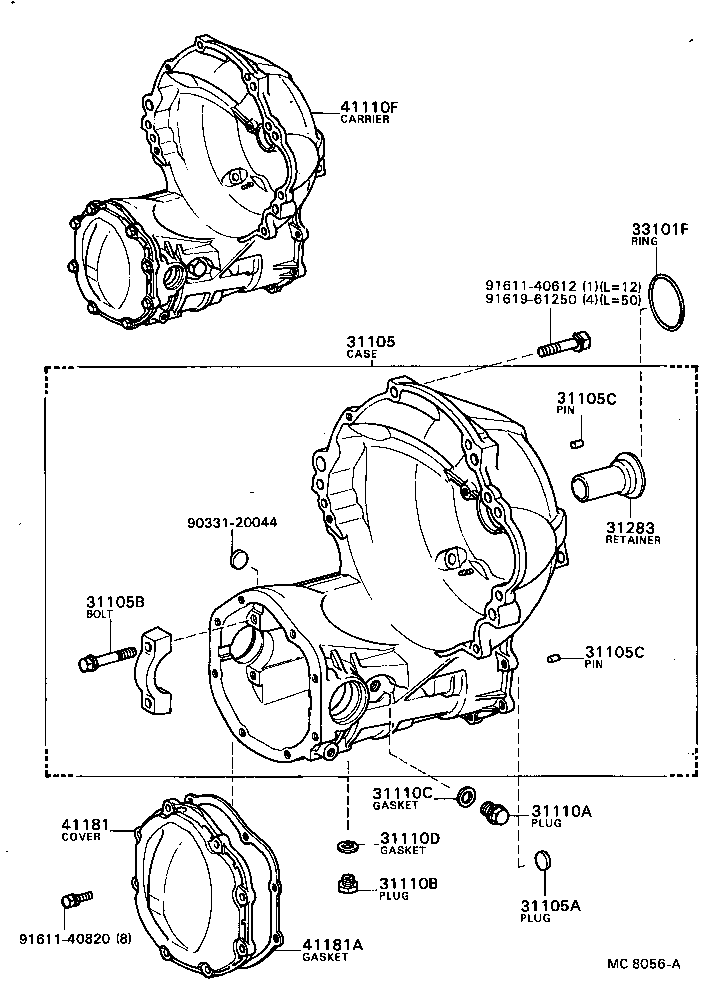

(7906- )MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105 - CASE SUB-ASSY, TRANSAXLE(MTM) | ||||
| 31105-16011 |
AL11..MTM |
1 | ||
| 31105B - BOLT, HEXAGON(FOR DIFFERENTIAL BEARING CAP SETTING) | ||||
| 90105-10008 |
AL11..MTM |
4 | ||
| 31105C - PIN, STRAIGHT(FOR TRANSAXLE CASE) | ||||
| 90250-10232 |
AL11..MTM |
2 | ||
| 31105C - PIN, STRAIGHT(FOR TRANSAXLE CASE) | ||||
| 90250-10232 |
AL11..MTM |
2 | ||
| 31110A - PLUG(FOR DIFFERENTIAL FILLER) | ||||
| 90341-18002 |
AL11 |
1 | ||
| 90341-18006 |
AL11..MTM |
1 | ||
| 31110B - PLUG(FOR DIFFERENTIAL DRAIN) | ||||
| 90341-18057 |
AL11..MTM |
1 | ||
| 31110C - GASKET(FOR DIFFERENTIAL FILLER) | ||||
| 12157-10010 |
AL11..MTM |
1 | ||
| 31110D - GASKET(FOR DIFFERENTIAL DRAIN) | ||||
| 12157-10010 |
AL11..MTM |
1 | ||
| 31283 - RETAINER, CLUTCH RELEASE BEARING HUB | ||||
| 31283-16010 |
AL11..MTM |
1 | ||
| 33101F - RING, O(FOR INPUT FRONT) | ||||
| 90301-54002 |
AL11..MTM |
1 | ||
| 41110F - CARRIER ASSY, DIFFERENTIAL, FRONT | ||||
| 41110-16021 |
AL11..MTM *AXC=Y302,R=41:11 |
1 | ||
| 41110-16020 |
AL11 *AXC=Y302,R=41:11 |
1 | ||
| 41181 - COVER, FRONT DIFFERENTIAL CARRIER | ||||
| 41181-16020 |
AL11 |
1 | ||
| 41181-16010 |
AL11 |
1 | ||
| 41181A - GASKET, FRONT DIFFERENTIAL CARRIER COVER | ||||
| 41182-16010 |
AL11 |
1 | ||
| Common parts | ||||
| 90331-20044 | ||||
| 91611-40612 | ||||
| 91611-40820 | ||||
| 91619-61250 | ||||
