AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )MTM

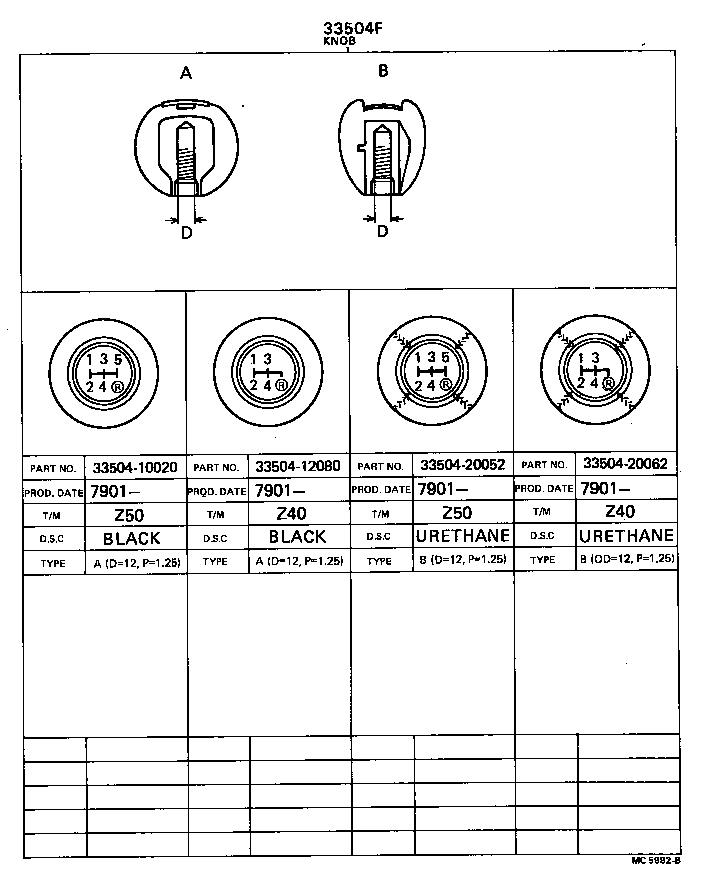

Click highlighted areas on diagram

diagram 3350410020 3350412080 3350420052 3350420062 33504F
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-2005201

AL11..2DS..STD..EUR

URETHANE,BLACK,DENMARK SPEC,BLACK,TRIM2#

 1
33504-1002001

AL11..5F

BLACK,BLACK,TRIM2#

 1
33504-2005204

AL11..2DS..STD..EUR

URETHANE,BLUE,DENMARK SPEC,BLUE,TRIM8#

 1
Common parts
33504-10020
33504-12080
33504-20052
33504-20062

(7901- )MTM

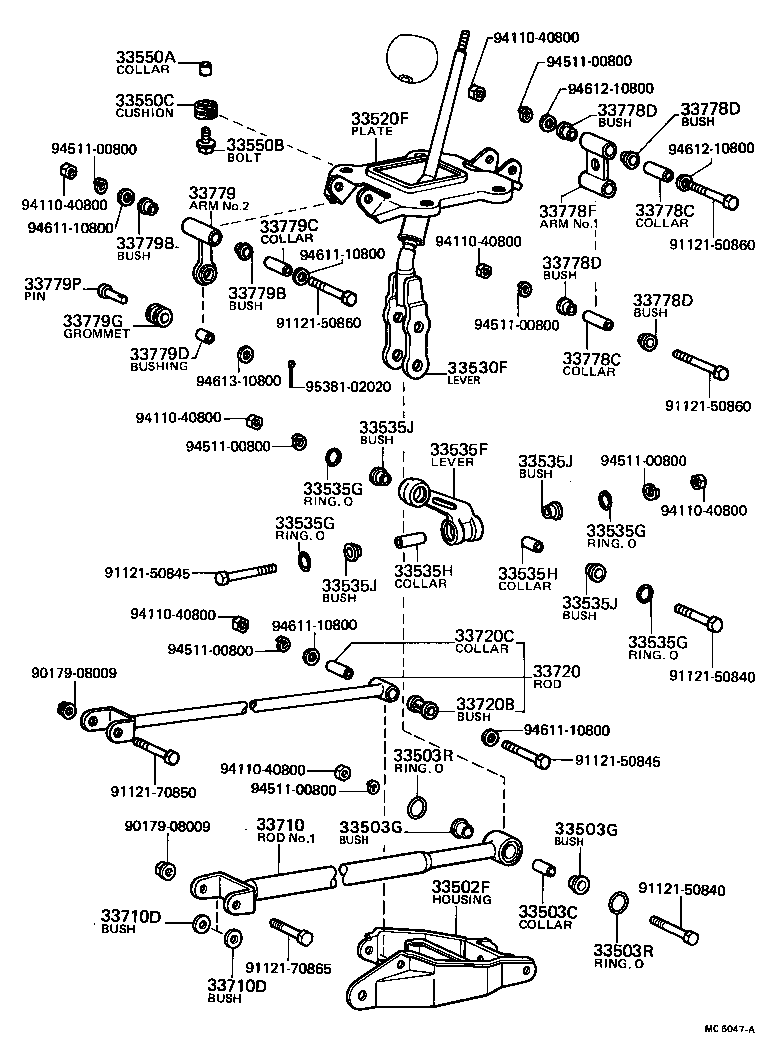

Click highlighted areas on diagram

diagram 33502F 33503C 33503G 33503G 33503R 33503R 33520F 33530F 33535F 33535G 33535G 33535G 33535G 33535H 33535H 33535J 33535J 33535J 33535J 33550A 33550B 33550C 33710 33710D 33710D 33720 33720B 33720C 33778C 33778C 33778D 33778D 33778D 33778D 33778F 33779 33779B 33779B 33779C 33779D 33779G 33779P 9017908009 9017908009 9112150840 9112150840 9112150845 9112150845 9112150860 9112150860 9112150860 9112170850 9112170865 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9451100800 9451100800 9451100800 9451100800 9451100800 9451100800 9451100800 9461110800 9461110800 9461110800 9461110800 9461210800 9461210800 9461310800 9538102020
Part # Description Qty Price
33502F - HOUSING SUB-ASSY, SHIFT LEVER (FOR FLOOR SHIFT)
33502-16010

AL11..MTM

 1
33503C - COLLAR(FOR SHIFT LEVER SUB-ASSY)
90387-08010

AL11..MTM

 1
33503G - BUSH(FOR SHIFT LEVER)
90389-11002

AL11..MTM

 2
33503G - BUSH(FOR SHIFT LEVER)
90389-11002

AL11..MTM

 2
33503R - RING, O(FOR SHIFT LEVER SUB-ASSY)
90301-16007

AL11..MTM

 2
96710-02018

AL11..MTM

 2
33503R - RING, O(FOR SHIFT LEVER SUB-ASSY)
90301-16007

AL11..MTM

 2
96710-02018

AL11..MTM

 2
33520F - PLATE, SHIFT LEVER
33521-16010

AL11..MTM

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-16010

AL11

 1
33530-16020

AL11..LHD..MTM

 1
33530-16021

AL11..LHD..MTM

 1
33535F - LEVER, CONTROL SELECT (FOR FLOOR SHIFT)
33535-16010

AL11..MTM

 1
33535G - RING, 0 (FOR CONTROL SELECT LEVER)
96710-02018

AL11..MTM

 4
90301-16007

AL11..MTM

 4
33535G - RING, 0 (FOR CONTROL SELECT LEVER)
96710-02018

AL11..MTM

 4
90301-16007

AL11..MTM

 4
33535G - RING, 0 (FOR CONTROL SELECT LEVER)
96710-02018

AL11..MTM

 4
90301-16007

AL11..MTM

 4
33535G - RING, 0 (FOR CONTROL SELECT LEVER)
96710-02018

AL11..MTM

 4
90301-16007

AL11..MTM

 4
33535H - COLLAR (FOR CONTROL SELECT LEVER)
90387-08009

AL11..MTM

L=30

 1
90387-08010

AL11..MTM

L=22

 1
33535H - COLLAR (FOR CONTROL SELECT LEVER)
90387-08009

AL11..MTM

L=30

 1
90387-08010

AL11..MTM

L=22

 1
33535J - BUSH (FOR CONTROL SELECT LEVER)
90389-11002

AL11..MTM

 4
33535J - BUSH (FOR CONTROL SELECT LEVER)
90389-11002

AL11..MTM

 4
33535J - BUSH (FOR CONTROL SELECT LEVER)
90389-11002

AL11..MTM

 4
33535J - BUSH (FOR CONTROL SELECT LEVER)
90389-11002

AL11..MTM

 4
33550A - COLLAR FOR FLOOR SHIFT)
90387-06003

AL11..MTM

 4
33550B - BOLT, W/WASHER (FOR FLOOR SHIFT)
90119-06182

AL11..MTM

 4
33550C - CUSHION(FOR FLOOR SHIFT)
90541-13002

AL11..MTM

 4
33710 - ROD ASSY, GEAR SHIFTING, NO.1
33710-16011

AL11..MTM

 1
33710D - BUSH (FOR SHIFTING ROD, NO.1)
90386-11003

AL11

 2
90386-11005

AL11..MTM

 2
33710D - BUSH (FOR SHIFTING ROD, NO.1)
90386-11003

AL11

 2
90386-11005

AL11..MTM

 2
33720 - ROD ASSY, SHIFT LEVER HOUSING
33770-16010

AL11..MTM

 1
33720B - BUSH (FOR SHIFT LEVER HOUSING ROD)
90385-10004

AL11..MTM

 1
33720C - COLLAR (FOR SHIFT LEVER HOUSING ROD)
90387-08012

AL11..MTM

 1
33778C - COLLAR(FOR SHIFT LEVER HOUSING ARM, NO.1)
90387-08011

AL11..MTM

 2
33778C - COLLAR(FOR SHIFT LEVER HOUSING ARM, NO.1)
90387-08011

AL11..MTM

 2
33778D - BUSH(FOR SHIFT LEVER HOUSING ARM, NO.1)
90386-11002

AL11..MTM

 4
33778D - BUSH(FOR SHIFT LEVER HOUSING ARM, NO.1)
90386-11002

AL11..MTM

 4
33778D - BUSH(FOR SHIFT LEVER HOUSING ARM, NO.1)
90386-11002

AL11..MTM

 4
33778D - BUSH(FOR SHIFT LEVER HOUSING ARM, NO.1)
90386-11002

AL11..MTM

 4
33778F - ARM, SHIFT LEVER HOUSING, NO.1
33778-16010

AL11..MTM

 1
33779 - ARM, SHIFT LEVER HOUSING, NO.2
33779-16010

AL11..MTM

 1
33779B - BUSH (FOR SHIFT LEVER HOUSING ARM, NO.2)
90386-11002

AL11..MTM

 2
33779B - BUSH (FOR SHIFT LEVER HOUSING ARM, NO.2)
90386-11002

AL11..MTM

 2
33779C - COLLAR (FOR SHIFT LEVER HOUSING ARM, NO.2)
90387-08011

AL11..MTM

 1
33779D - BUSHING, NO.1 (FOR SHIFT LEVER HOUSING ARM, NO.2)
90389-08005

AL11..MTM

 1
33779G - GROMMET (FOR SHIFT LEVER HOUSING ARM, NO.2)
90480-17177

AL11..MTM

 1
33779P - PIN, W/HOLE (FOR SHIFT LEVER HOUSING ARM, NO.2)
90240-08015

AL11..MTM

 1
Common parts
90179-08009
91121-50840
91121-50845
91121-50860
91121-70850
91121-70865
94110-40800
94511-00800
94611-10800
94612-10800
94613-10800
95381-02020
