AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )MTM

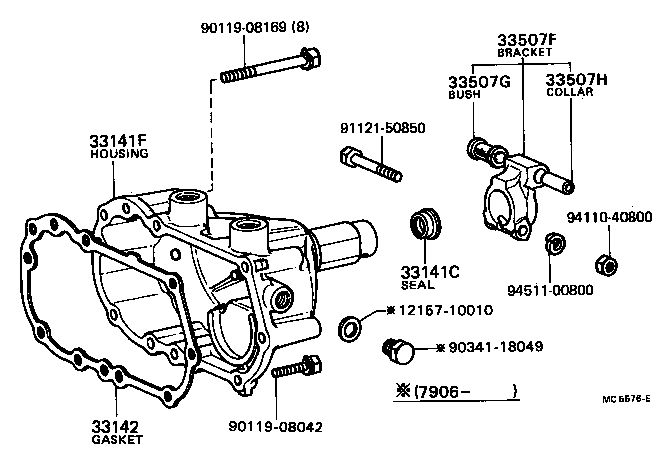

Click highlighted areas on diagram

diagram 1215710010 33141C 33141F 33142 33507F 33507G 33507H 9011908042 9011908169 9034118049 9112150850 9411040800 9451100800
Part # Description Qty Price
33141C - SEAL, OIL(FOR EXTENSION HOUSING REAR)
90311-14001

AL11..MTM

 1
33141F - HOUSING, EXTENSION(MTM)
33141-16011

AL11..MTM

 1
33141-16010

AL11..MTM

 1
33142 - GASKET, EXTENSION HOUSING(MTM)
33142-16010

AL11..MTM

 1
33507F - BRACKET SUB-ASSY, SHIFT LEVER HOUSING
33507-16010

AL11..MTM

 1
33507G - BUSH (FOR CONTROL LEVER HOUSING SUPPORT BRACKET)
90385-10004

AL11..MTM

 1
90385-10008

AL11..MTM

 1
33507H - COLLAR (FOR CONTROL LEVER HOUSING SUPPORT BRACKET)
90387-08012

AL11..MTM

 1
Common parts
12157-10010
90119-08042
90119-08169
90341-18049
91121-50850
94110-40800
94511-00800
