AL11L-ZDMRSW (1979)
Toyota Tercel
Production
Jan 1979
-
Apr 1982
Engine
2A
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7901- )MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-16010 |
AL11..MTM |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-16010 |
AL11..MTM |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-16020 |
AL11..MTM |
1 | ||
| 33119-16010 |
AL11 |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-16020 |
AL11..MTM |
1 | ||
| 33119-16010 |
AL11 |
1 | ||
| Common parts | ||||
| 90119-10025 | ||||
| 91611-61025 | ||||
| 91611-61035 | ||||
| 91611-61040 | ||||

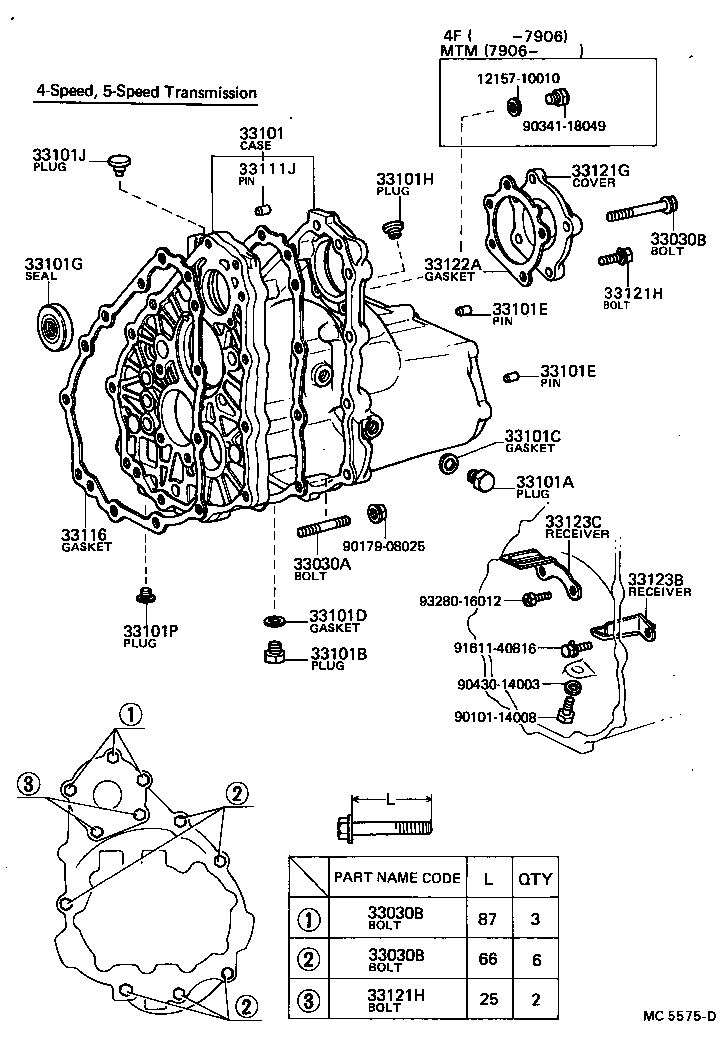

(7901- )MTM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33030A - BOLT, STUD(FOR TRANSAXLE CASE & TRANSMISSION CASE SET) | ||||
| 90116-08101 |
AL11..MTM |
3 | ||
| 92132-40865 |
AL11..MTM |
3 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08020 |
AL11..MTM *8-1.25PX87-30 |
3 | ||
| 90105-08022 |
AL11..MTM *8-1.25PX66-30 |
6 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08020 |
AL11..MTM *8-1.25PX87-30 |
3 | ||
| 90105-08022 |
AL11..MTM *8-1.25PX66-30 |
6 | ||
| 33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) | ||||
| 90105-08020 |
AL11..MTM *8-1.25PX87-30 |
3 | ||
| 90105-08022 |
AL11..MTM *8-1.25PX66-30 |
6 | ||
| 33101 - CASE SUB-ASSY, MANUAL TRANSMISSION | ||||
| 33101-16012 |
AL11..MTM |
1 | ||
| 33101-16020 |
AL11..MTM |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18002 |
AL11 |
1 | ||
| 90341-18006 |
AL11..MTM |
1 | ||
| 33101B - PLUG(FOR MANUAL TRANSMISSION DRAIN) | ||||
| 90341-18057 |
AL11..MTM |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 12157-10010 |
AL11..MTM |
1 | ||
| 33101D - GASKET(FOR MANUAL TRANSMISSION DRAIN PLUG) | ||||
| 12157-10010 |
AL11..MTM |
1 | ||
| 33101E - PIN, STRAIGHT(FOR TRANSMISSION CASE) | ||||
| 90250-08030 |
AL11..MTM |
2 | ||
| 33101E - PIN, STRAIGHT(FOR TRANSMISSION CASE) | ||||
| 90250-08030 |
AL11..MTM |
2 | ||
| 33101G - SEAL, OIL(FOR INPUT FRONT) | ||||
| 90311-26001 |
AL11..MTM |
1 | ||
| 33101H - PLUG(FOR IDLER CASE) | ||||
| 90341-10065 |
AL11..MTM |
1 | ||
| 33101J - PLUG, BREATHER | ||||
| 90930-03001 |
AL11..MTM |
1 | ||
| 33101P - PLUG, STRAIGHT SCREW(FOR INTER-LOCK PIN) | ||||
| 90341-10065 |
AL11..MTM |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-10232 |
AL11..MTM L=15,OD=8 |
2 | ||
| 33116 - GASKET, MANUAL TRANSMISSION CASE | ||||
| 33116-16010 |
AL11..MTM |
2 | ||
| 33121G - COVER, MANUAL TRANSMISSION CASE | ||||
| 33121-16010 |
AL11..MTM |
1 | ||
| 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) | ||||
| 90119-08168 |
AL11..MTM |
2 | ||
| 90119-08213 |
AL11..MTM |
2 | ||
| 33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) | ||||
| 90119-08168 |
AL11..MTM |
2 | ||
| 90119-08213 |
AL11..MTM |
2 | ||
| 33122A - GASKET, MANUAL TRANSMISSION CASE COVER | ||||
| 33122-16010 |
AL11..MTM |
1 | ||
| 33123B - RECEIVER, CASE COVER OIL, NO.1(MTM) | ||||
| 33123-16010 |
AL11..MTM |
1 | ||
| 33123C - RECEIVER, CASE COVER OIL, NO.2(MTM) | ||||
| 33123-16020 |
AL11..MTM |
1 | ||
| Common parts | ||||
| 12157-10010 | ||||
| 90101-14008 | ||||
| 90179-08025 | ||||
| 90341-18049 | ||||
| 90430-14003 | ||||
| 91611-40816 | ||||
| 93280-16012 | ||||
