AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )LHD..MTM

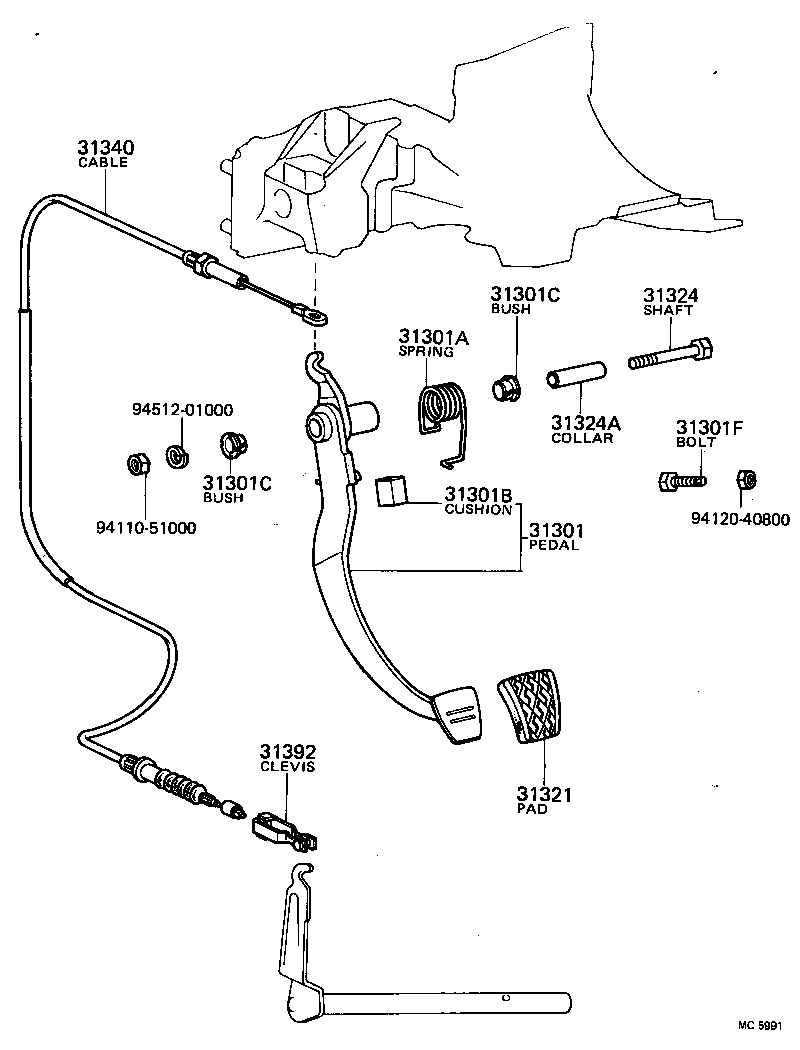

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31340 31392 9411051000 9412040800 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-16020

AL11..LHD..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90508-32005

AL11..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
47131-10020

AL11..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

AL11..MTM

 2
90386-13192

AL11..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

AL11..MTM

 2
90386-13192

AL11..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-08052

AL11..MTM

 1
90101-08071

AL11..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-12030

AL11..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10048

AL11..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10021

AL11..MTM

 1
31340 - CABLE ASSY, CLUTCH RELEASE
31340-16030

AL11..LHD..MTM

 1
31340-16050

AL11..MTM..EUR

COLD SPEC

 1
31340-16050

AL11..LHD..MTM

 1
31392 - CLEVIS, CLUTCH CABLE
31392-10010

AL11..LHD..MTM

 1
Common parts
94110-51000
94120-40800
94512-01000
