AL11L-ZDMRSW (1979)
Toyota Tercel
Production
Jan 1979
-
Apr 1982
Engine
2A
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7901-8204)MTM

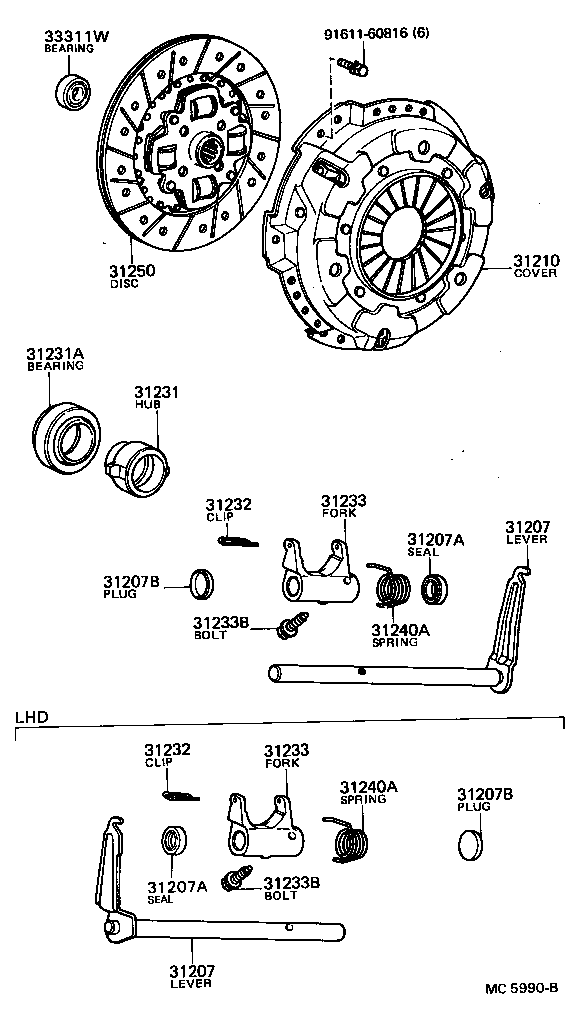

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31207 - LEVER SUB-ASSY, CLUTCH RELEASE FORK | ||||
| 31207-16020 |
AL11..LHD..MTM |
1 | ||
| 31207-16040 |
AL11..LHD..MTM |
1 | ||
| 31207 - LEVER SUB-ASSY, CLUTCH RELEASE FORK | ||||
| 31207-16020 |
AL11..LHD..MTM |
1 | ||
| 31207-16040 |
AL11..LHD..MTM |
1 | ||
| 31207A - SEAL, OIL(FOR CLUTCH RELEASE FORK LEVER) | ||||
| 90313-18001 |
AL11..MTM |
1 | ||
| 31207A - SEAL, OIL(FOR CLUTCH RELEASE FORK LEVER) | ||||
| 90313-18001 |
AL11..MTM |
1 | ||
| 31207B - PLUG(FOR CLUTCH RELEASE FORK LEVER) | ||||
| 96411-12500 |
AL11..MTM |
1 | ||
| 31207B - PLUG(FOR CLUTCH RELEASE FORK LEVER) | ||||
| 96411-12500 |
AL11..MTM |
1 | ||
| 31210 - COVER ASSY, CLUTCH | ||||
| 31210-16010 |
AL11 |
1 | ||
| 31210-12063 |
AL11..MTM |
1 | ||
| 31210-12061 |
AL11..MTM |
1 | ||
| 31210-12062 |
AL11..MTM |
1 | ||
| 31210-12060 |
AL11 |
1 | ||
| 31231 - HUB, CLUTCH RELEASE BEARING | ||||
| 31231-16010 |
AL11..MTM |
1 | ||
| 31231-16030 |
AL11..MTM |
1 | ||
| 31231-16020 |
AL11..MTM |
1 | ||
| 31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB) | ||||
| 90363-40022 |
AL11..MTM |
1 | ||
| 90363-40005 |
AL11..MTM |
1 | ||
| 90363-40019 |
AL11..MTM |
1 | ||
| 90363-40013 |
AL11..MTM |
1 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-16020 |
AL11..MTM |
1 | ||
| 31232-16010 |
AL11..MTM |
2 | ||
| 31232 - CLIP OR SPRING, RELEASE BEARING HUB | ||||
| 31232-16020 |
AL11..MTM |
1 | ||
| 31232-16010 |
AL11..MTM |
2 | ||
| 31233 - FORK, CLUTCH RELEASE | ||||
| 31233-16010 |
AL11..MTM |
1 | ||
| 31233-16011 |
AL11..MTM |
1 | ||
| 31233 - FORK, CLUTCH RELEASE | ||||
| 31233-16010 |
AL11..MTM |
1 | ||
| 31233-16011 |
AL11..MTM |
1 | ||
| 31233B - BOLT(FOR RELEASE FORK & RELEASE LEVER SETTING) | ||||
| 90109-10026 |
AL11..MTM |
1 | ||
| 31233B - BOLT(FOR RELEASE FORK & RELEASE LEVER SETTING) | ||||
| 90109-10026 |
AL11..MTM |
1 | ||
| 31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN) | ||||
| 90508-32004 |
AL11..MTM |
1 | ||
| 31240A - SPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN) | ||||
| 90508-32004 |
AL11..MTM |
1 | ||
| 31250 - DISC ASSY, CLUTCH | ||||
| 31250-16012 |
AL11..MTM |
1 | ||
| 31250-16011 |
AL11..MTM |
1 | ||
| 33311W - BEARING (FOR INPUT SHAFT) | ||||
| 90363-12003 |
AL11..MTM 6001 VV C4 |
1 | ||
| 97123-06001 |
AL11..MTM 6001 ZZ C3 |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||
