AL11L-ZDMRSW (1979)
Toyota Tercel
Production
Jan 1979
-
Apr 1982
Engine
2A
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7901- )

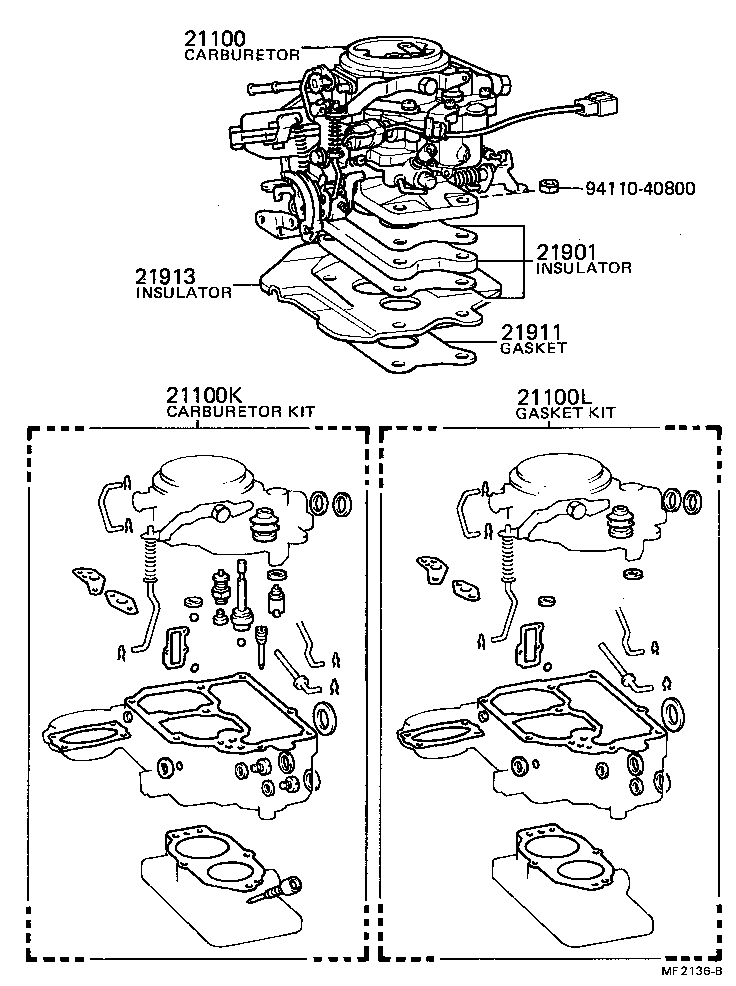

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21100 - CARBURETOR ASSY | ||||
| 21100-14010 |
2A..AL11..MTM..EUR |
1 | ||
| 21100-14011 |
2A..AL11..MTM..EUR |
1 | ||
| 21100-14012 |
2A..AL11..MTM..EUR |
1 | ||
| 21100K - CARBURETOR KIT | ||||
| 04211-14010 |
2A..AL11..MTM..EUR |
1 | ||
| 04211-14030 |
2A..AL11..EUR |
1 | ||
| 04211-14031 |
2A..AL11..EUR |
1 | ||
| 21100L - GASKET KIT, CARBURETOR | ||||
| 04212-14010 |
2A..AL11 |
1 | ||
| 21901 - INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1 | ||||
| 21901-15010 |
2A..AL11 |
1 | ||
| 21911 - GASKET, CARBURETOR | ||||
| 21911-15010 |
2A..AL11 |
1 | ||
| 21913 - INSULATOR, CARBURETOR HEAT, NO.2 | ||||
| 21913-15010 |
2A..AL11 |
1 | ||
| Common parts | ||||
| 94110-40800 | ||||
