AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )

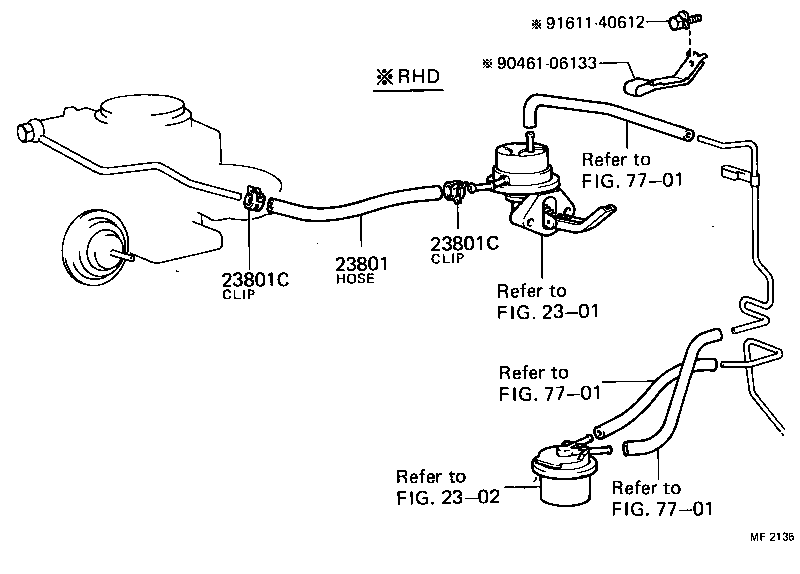

Click highlighted areas on diagram

diagram 2301 2302 23801 23801C 23801C 7701 7701 7701 9046106133 9161140612
Part # Description Qty Price
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
95332-06020

2A..AL11

*H,L=150

 1
95331-06015

2A..AL11

*H,L=150

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2A..AL11

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2A..AL11

 2
Common parts
90461-06133
91611-40612
Linked diagrams
2301
2302
7701
