AL11L-ZDMRSW (1979)
Toyota Tercel
Production
Jan 1979
-
Apr 1982
Engine
2A
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7901- )

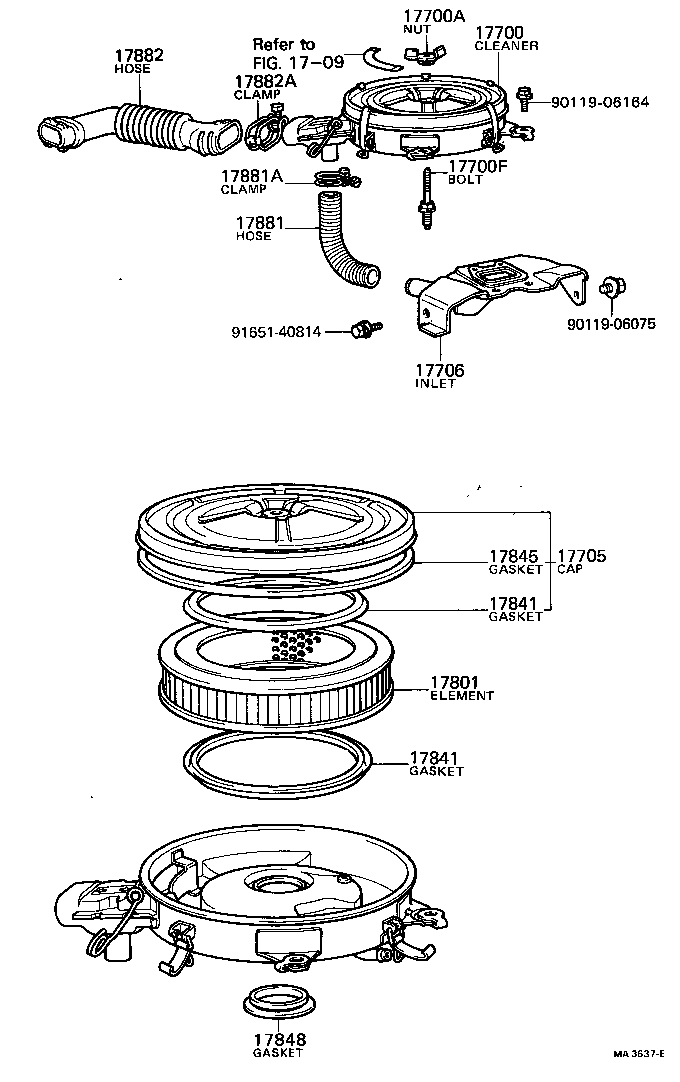

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-14010 |
2A..AL11..EUR |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-06005 |
2A..AL11 |
1 | ||
| 90175-06003 |
2A..AL11 |
1 | ||
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06280 |
2A..AL11 L=49,S=10&20 |
1 | ||
| 90116-06019 |
2A..AL11 L=45,S=12&16 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-15010 |
2A..AL11 |
1 | ||
| 17706 - INLET SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17902-14010 |
2A..AL11 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-15010 |
2A..AL11 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-15010 |
2A..AL11 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-15010 |
2A..AL11 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-15010 |
2A..AL11 |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 90430-63001 |
2A..AL11 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-34040 |
2A..AL11..EUR |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10460 |
2A..AL11..EUR |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17881-15021 |
2A..AL11 |
1 | ||
| 17881-15020 |
2A..AL11 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 90460-01005 |
2A..AL11 |
1 | ||
| Common parts | ||||
| 90119-06075 | ||||
| 90119-06164 | ||||
| 91651-40814 | ||||
| Linked diagrams | ||||
| 1709 | ||||
