AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )

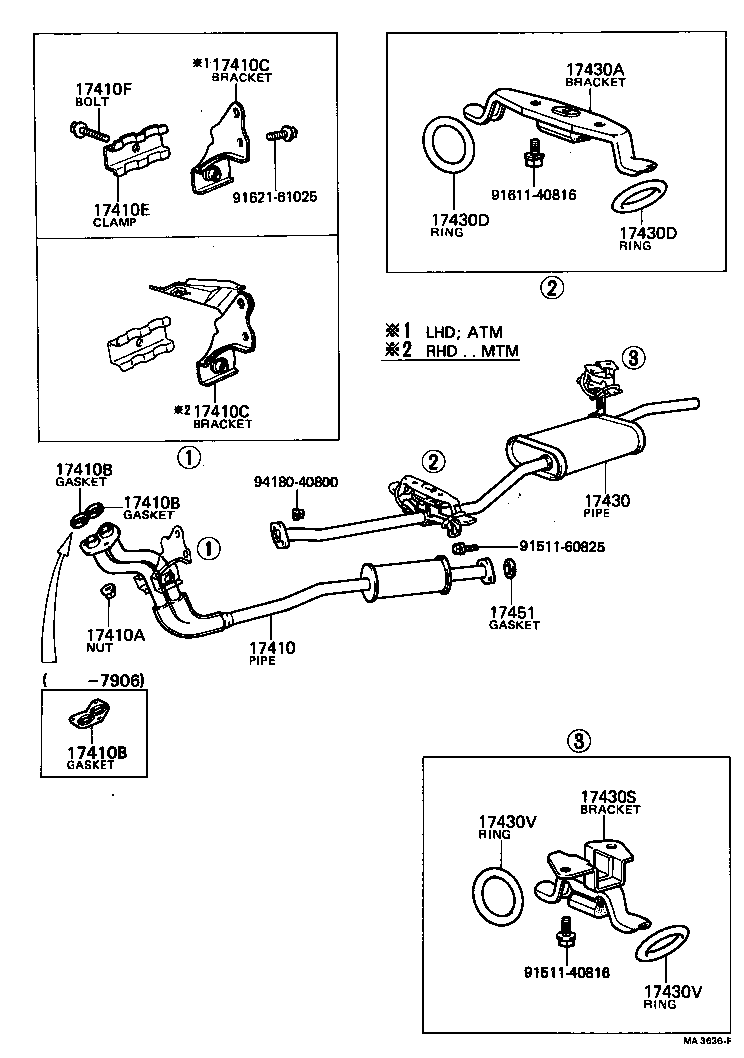

Click highlighted areas on diagram

diagram 17410 17410A 17410B 17410B 17410B 17410C 17410C 17410E 17410F 17430 17430A 17430D 17430D 17430S 17430V 17430V 17451 9151140816 9151160825 9161140816 9162161025 9418040800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-15030

2A..AL11

 1
17410-15031

2A..AL11

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10010

2A..AL11

 3
17410B - GASKET, EXHAUST PIPE
90917-06006

2A..AL11

 2
17451-41020

2A..AL11

 1
17410B - GASKET, EXHAUST PIPE
90917-06006

2A..AL11

 2
17451-41020

2A..AL11

 1
17410B - GASKET, EXHAUST PIPE
90917-06006

2A..AL11

 2
17451-41020

2A..AL11

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-15030

2A..AL11..LHD

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-15030

2A..AL11..LHD

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04040

2A..AL11

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
91511-61065

2A..AL11

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-15021

2A..AL11

 1
17430-15020

2A..AL11

 1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17506-15010

2A..AL11

 1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34207

2A..AL11

 2
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90301-34207

2A..AL11

 2
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17507-15010

2A..AL11

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

2A..AL11

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-34207

2A..AL11

 2
17451 - GASKET, EXHAUST PIPE
90917-06001

2A..AL11

 1
90917-06026

2A..AL11

 1
Common parts
91511-40816
91511-60825
91611-40816
91621-61025
94180-40800
