AL11L-ZDMRSW (1979)
Toyota Tercel

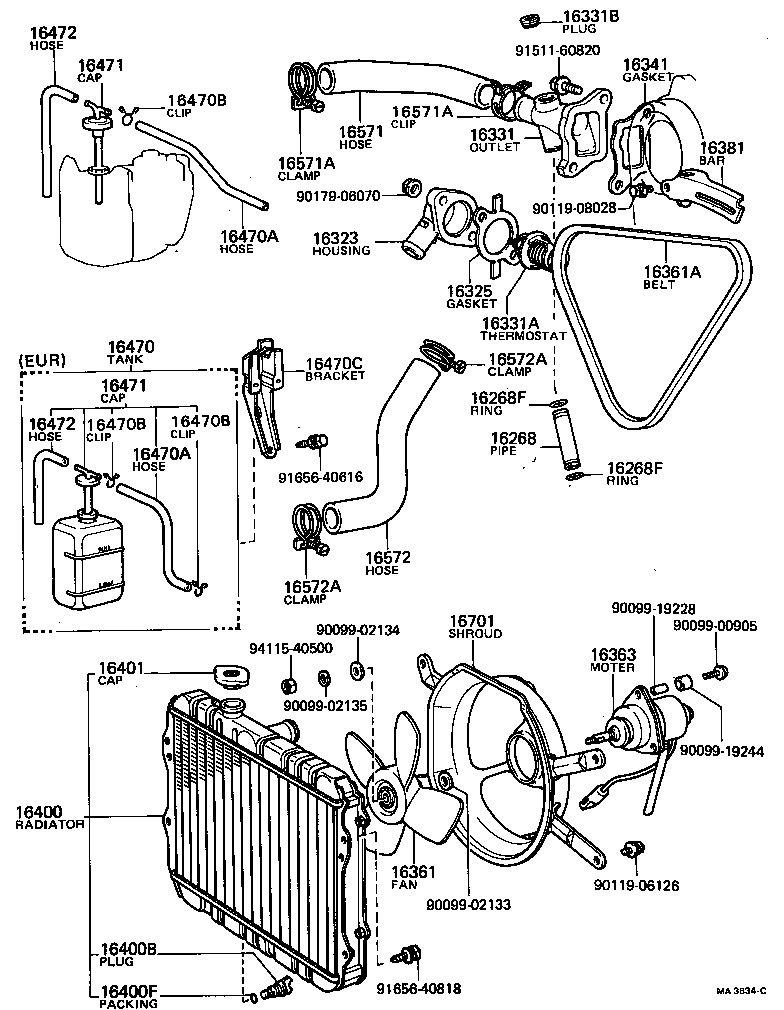

(7901-7906)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-15010 |
2A..AL11 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96710-02013 |
2A..AL11 |
2 | ||
| 96711-24013 |
2A..AL11 |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96710-02013 |
2A..AL11 |
2 | ||
| 96711-24013 |
2A..AL11 |
2 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-15010 |
2A..AL11 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-15010 |
2A..AL11 |
1 | ||
| 16325-70020 |
2A..AL11 |
1 | ||
| 16325-70021 |
2A..AL11 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-15010 |
2A..AL11 |
1 | ||
| 16331-14010 |
2A..AL11 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
2A..AL11 *WAX 82-95,*WAX 82-95,FUJI-THOMSON |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90344-53015 |
2A..AL11 |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-15010 |
2A..AL11 |
1 | ||
| 16341-15011 |
2A..AL11 |
1 | ||
| 16361 - FAN | ||||
| 16361-13010 |
2A..AL11 4 BLADES |
1 | ||
| 16361-14010 |
2A..AL11 4 BLADES |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99321-50985 |
2A..AL11 L=985 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-15050 |
2A..AL11 |
1 | ||
| 16363-15010 |
2A..AL11 |
1 | ||
| 16363-15051 |
2A..AL11 |
1 | ||
| 16363-15020 |
2A..AL11 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-15011 |
2A..AL11 |
1 | ||
| 16381-14010 |
2A..AL11..STD..EUR 12V 30A ALTERNATOR |
1 | ||
| 16381-15030 |
2A..AL11 |
1 | ||
| 16381-15011 |
2A..AL11 12V 40A & 50A ALTERNATOR |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-15010 |
2A..AL11 |
1 | ||
| 16400-14010 |
2A..AL11..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
2A..AL11 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
2A..AL11 |
1 | ||
| 96711-19007 |
2A..AL11 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
2A..AL11 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-15010 |
2A..AL11..EUR |
1 | ||
| 16470-15011 |
2A..AL11..EUR |
1 | ||
| 16470-15012 |
2A..AL11..EUR |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12065 |
2A..AL11..EUR *H,L=580 |
1 | ||
| 90445-12078 |
2A..AL11..EUR L=600 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12065 |
2A..AL11..EUR *H,L=580 |
1 | ||
| 90445-12078 |
2A..AL11..EUR L=600 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2A..AL11 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2A..AL11 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2A..AL11 |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 85361-16010 |
2A..AL11..EUR |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-15010 |
2A..AL11..EUR |
1 | ||
| 16471-15011 |
2A..AL11..EUR |
1 | ||
| 16471-15012 |
2A..AL11..EUR |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-15010 |
2A..AL11..EUR |
1 | ||
| 16471-15011 |
2A..AL11..EUR |
1 | ||
| 16471-15012 |
2A..AL11..EUR |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-16010 |
2A..AL11 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-16010 |
2A..AL11 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-15010 |
2A..AL11 |
1 | ||
| 16571-15030 |
2A..AL11 |
1 | ||
| 16571-15050 |
2A..AL11 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
2A..AL11 WATER OUTLET SIDE |
1 | ||
| 96111-10420 |
2A..AL11 RADIATOR SIDE |
1 | ||
| 90467-34001 |
2A..AL11 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
2A..AL11 WATER OUTLET SIDE |
1 | ||
| 96111-10420 |
2A..AL11 RADIATOR SIDE |
1 | ||
| 90467-34001 |
2A..AL11 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-15040 |
2A..AL11 |
1 | ||
| 16572-15010 |
2A..AL11 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10400 |
2A..AL11 WATER INLET SIDE |
1 | ||
| 96111-10420 |
2A..AL11 RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10400 |
2A..AL11 WATER INLET SIDE |
1 | ||
| 96111-10420 |
2A..AL11 RADIATOR SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-14010 |
2A..AL11 |
1 | ||
| 16711-15030 |
2A..AL11 |
1 | ||
| 16711-15050 |
2A..AL11 |
1 | ||
| Common parts | ||||
| 90099-00905 | ||||
| 90099-02133 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90099-19228 | ||||
| 90099-19244 | ||||
| 90119-06126 | ||||
| 90119-08028 | ||||
| 90179-06070 | ||||
| 91511-60820 | ||||
| 91656-40616 | ||||
| 91656-40818 | ||||
| 94115-40500 | ||||

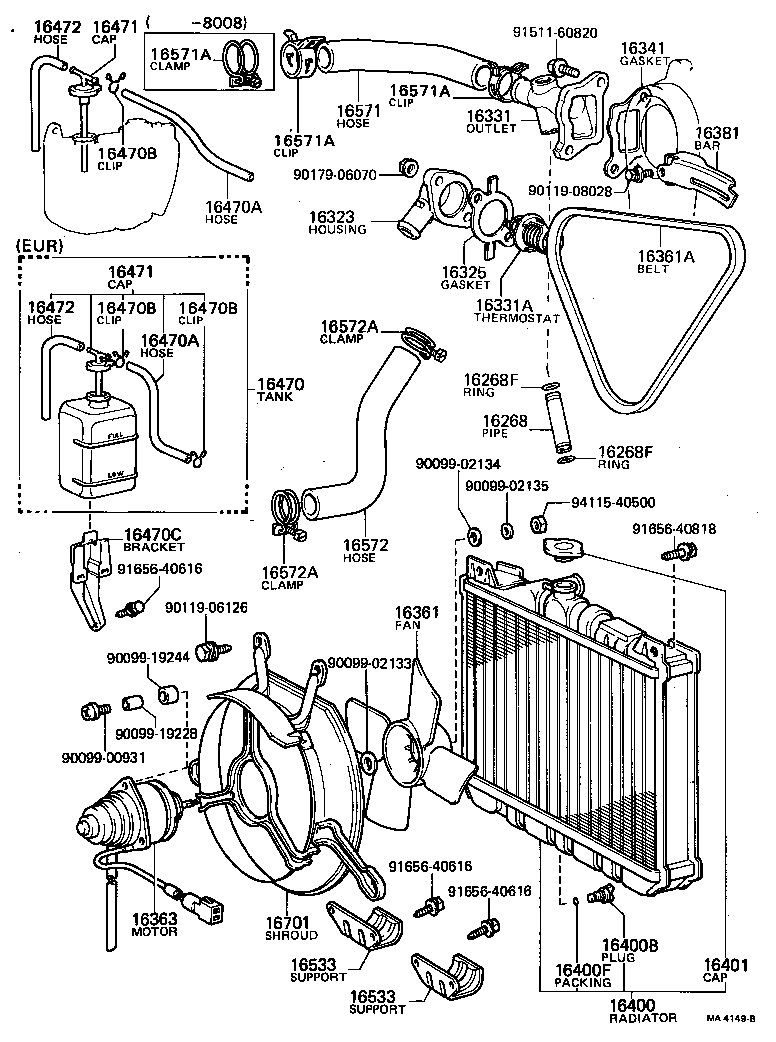

(7906- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-15010 |
2A..AL11 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96710-02013 |
2A..AL11 |
2 | ||
| 96711-24013 |
2A..AL11 |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96710-02013 |
2A..AL11 |
2 | ||
| 96711-24013 |
2A..AL11 |
2 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-15010 |
2A..AL11 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-15010 |
2A..AL11 |
1 | ||
| 16325-70020 |
2A..AL11 |
1 | ||
| 16325-70021 |
2A..AL11 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-15010 |
2A..AL11 |
1 | ||
| 16331-14010 |
2A..AL11 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
2A..AL11 *WAX 82-95,*WAX 82-95,FUJI-THOMSON |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-15010 |
2A..AL11 |
1 | ||
| 16341-15011 |
2A..AL11 |
1 | ||
| 16361 - FAN | ||||
| 16361-13010 |
2A..AL11 4 BLADES |
1 | ||
| 16361-14010 |
2A..AL11 4 BLADES |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99321-50985 |
2A..AL11 L=985 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-15010 |
2A..AL11 |
1 | ||
| 16363-15050 |
2A..AL11 |
1 | ||
| 16363-15051 |
2A..AL11 |
1 | ||
| 16363-15020 |
2A..AL11 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-15011 |
2A..AL11 |
1 | ||
| 16381-14010 |
2A..AL11..STD..EUR 12V 30A ALTERNATOR |
1 | ||
| 16381-15030 |
2A..AL11 |
1 | ||
| 16381-15011 |
2A..AL11 12V 40A & 50A ALTERNATOR |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-15010 |
2A..AL11 |
1 | ||
| 16400-14010 |
2A..AL11..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
2A..AL11 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
2A..AL11 |
1 | ||
| 96711-19007 |
2A..AL11 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
2A..AL11 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-15010 |
2A..AL11..EUR |
1 | ||
| 16470-15011 |
2A..AL11..EUR |
1 | ||
| 16470-15012 |
2A..AL11..EUR |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12065 |
2A..AL11..EUR *H,L=580 |
1 | ||
| 90445-12078 |
2A..AL11..EUR L=600 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12065 |
2A..AL11..EUR *H,L=580 |
1 | ||
| 90445-12078 |
2A..AL11..EUR L=600 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2A..AL11 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2A..AL11 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2A..AL11 |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 85361-16010 |
2A..AL11..EUR |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-15010 |
2A..AL11..EUR |
1 | ||
| 16471-15011 |
2A..AL11..EUR |
1 | ||
| 16471-15012 |
2A..AL11..EUR |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-15010 |
2A..AL11..EUR |
1 | ||
| 16471-15011 |
2A..AL11..EUR |
1 | ||
| 16471-15012 |
2A..AL11..EUR |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-16010 |
2A..AL11 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-16010 |
2A..AL11 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-15010 |
2A..AL11..MTM LH |
1 | ||
| 16533-15020 |
2A..AL11..MTM RH |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-15010 |
2A..AL11..MTM LH |
1 | ||
| 16533-15020 |
2A..AL11..MTM RH |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-15010 |
2A..AL11 |
1 | ||
| 16571-15030 |
2A..AL11 |
1 | ||
| 16571-15050 |
2A..AL11 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
2A..AL11 WATER OUTLET SIDE |
1 | ||
| 96111-10420 |
2A..AL11 RADIATOR SIDE |
1 | ||
| 90467-34001 |
2A..AL11 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
2A..AL11 WATER OUTLET SIDE |
1 | ||
| 96111-10420 |
2A..AL11 RADIATOR SIDE |
1 | ||
| 90467-34001 |
2A..AL11 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-34001 |
2A..AL11 WATER OUTLET SIDE |
1 | ||
| 96111-10420 |
2A..AL11 RADIATOR SIDE |
1 | ||
| 90467-34001 |
2A..AL11 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-15040 |
2A..AL11 |
1 | ||
| 16572-15010 |
2A..AL11 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10400 |
2A..AL11 WATER INLET SIDE |
1 | ||
| 96111-10420 |
2A..AL11 RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10400 |
2A..AL11 WATER INLET SIDE |
1 | ||
| 96111-10420 |
2A..AL11 RADIATOR SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-14010 |
2A..AL11 |
1 | ||
| 16711-15030 |
2A..AL11 |
1 | ||
| 16711-15050 |
2A..AL11 |
1 | ||
| Common parts | ||||
| 90099-00931 | ||||
| 90099-02133 | ||||
| 90099-02134 | ||||
| 90099-02135 | ||||
| 90099-19228 | ||||
| 90099-19244 | ||||
| 90119-06126 | ||||
| 90119-08028 | ||||
| 90179-06070 | ||||
| 91511-60820 | ||||
| 91656-40616 | ||||
| 91656-40818 | ||||
| 94115-40500 | ||||
