Toyota Tercel AL11 WATER PUMP - JDM Part Detective

AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982

Engine 2A

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

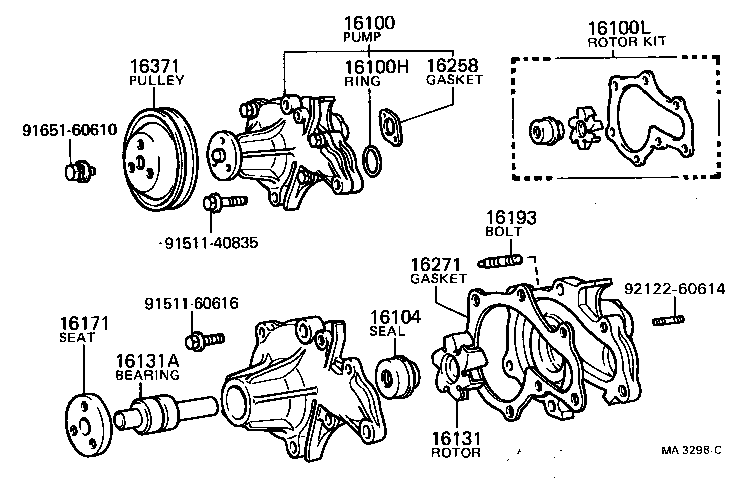

Click highlighted areas on diagram

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-19027	2A..AL11	12/1981 - 04/1982	1
16100-19025	2A..AL11	01/1979 - 08/1980	1
16100-19026	2A..AL11	08/1980 - 12/1981	1
16100H - RING, O(FOR WATER PUMP)
96710-02035	2A..AL11	01/1979 - 12/1981	1
96711-24035	2A..AL11	12/1981 - 04/1982	1
16100L - ROTOR KIT, WATER PUMP
04162-15010	2A..AL11	01/1979 - 08/1980	1
16104 - SEAL SET, WATER PUMP
16104-41111	2A..AL11	02/1980 - 04/1982	1
16104-41110	2A..AL11	01/1979 - 02/1980	1
16131 - ROTOR, WATER PUMP
16131-15010	2A..AL11	01/1979 - 04/1982	1
16131A - BEARING, WATER PUMP
90369-30024	2A..AL11	08/1980 - 04/1982	1
90369-26001	2A..AL11	01/1979 - 08/1980	1
16171 - SEAT, WATER PUMP PULLEY
16171-15011	2A..AL11	08/1980 - 04/1982	1
16171-15010	2A..AL11	01/1979 - 08/1980	1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16193-15010	2A..AL11	01/1979 - 04/1982	2
16258 - GASKET(FOR HEATER RETURN)
16258-15011	2A..AL11	12/1981 - 04/1982	1
16258-15010	2A..AL11	01/1979 - 12/1981	1
16271 - GASKET, WATER PUMP
16124-15010	2A..AL11	01/1979 - 04/1982	1
16371 - PULLEY, FAN
16371-15011	2A..AL11	08/1980 - 04/1982	1
16371-15010	2A..AL11	01/1979 - 08/1980	1
Common parts
91511-40835
91511-60616
91651-60610
92122-60614

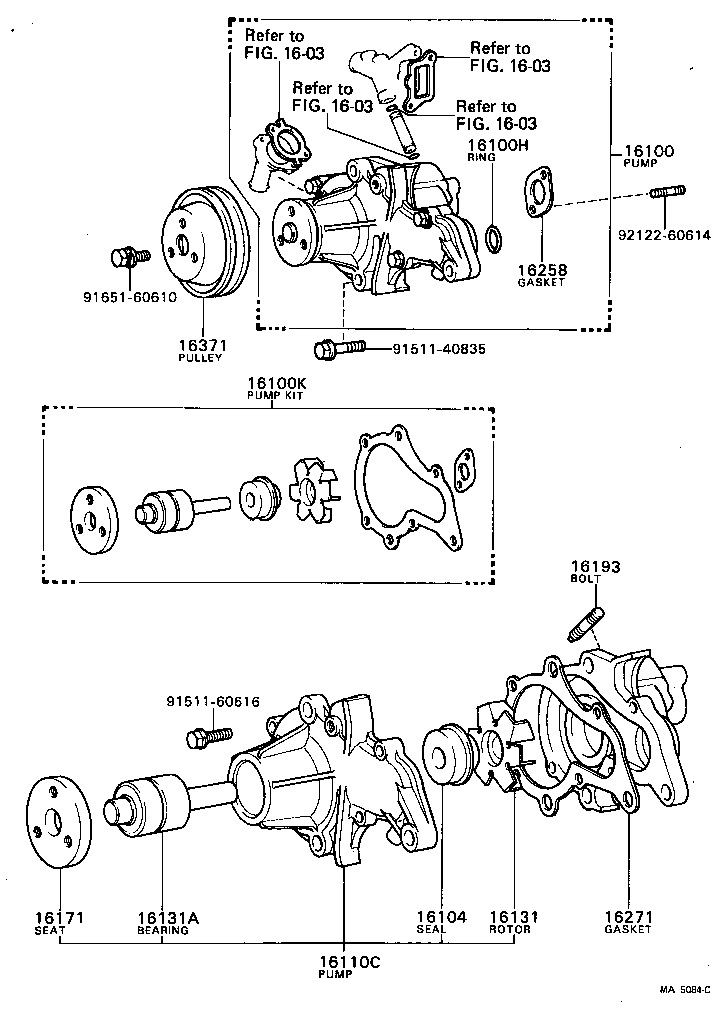

Click highlighted areas on diagram

Part #	Description	Period	Qty
16100 - PUMP ASSY, ENGINE WATER
16100-19027	2A..AL11	12/1981 - 04/1982	1
16100-19025	2A..AL11	01/1979 - 08/1980	1
16100-19026	2A..AL11	08/1980 - 12/1981	1
16100H - RING, O(FOR WATER PUMP)
96710-02035	2A..AL11	01/1979 - 12/1981	1
96711-24035	2A..AL11	12/1981 - 04/1982	1
16100K - PUMP KIT, WATER
04161-15020	2A..AL11	08/1980 - 04/1982	1
16104 - SEAL SET, WATER PUMP
16104-41111	2A..AL11	02/1980 - 04/1982	1
16104-41110	2A..AL11	01/1979 - 02/1980	1
16110C - PUMP ASSY, WATER, W/O COVER
16110-15010	2A..AL11	08/1980 - 04/1982	1
16131 - ROTOR, WATER PUMP
16131-15010	2A..AL11	01/1979 - 04/1982	1
16131A - BEARING, WATER PUMP
90369-30024	2A..AL11	08/1980 - 04/1982	1
90369-26001	2A..AL11	01/1979 - 08/1980	1
16171 - SEAT, WATER PUMP PULLEY
16171-15011	2A..AL11	08/1980 - 04/1982	1
16171-15010	2A..AL11	01/1979 - 08/1980	1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16193-15010	2A..AL11	01/1979 - 04/1982	2
16258 - GASKET(FOR HEATER RETURN)
16258-15011	2A..AL11	12/1981 - 04/1982	1
16258-15010	2A..AL11	01/1979 - 12/1981	1
16271 - GASKET, WATER PUMP
16124-15010	2A..AL11	01/1979 - 04/1982	1
16371 - PULLEY, FAN
16371-15011	2A..AL11	08/1980 - 04/1982	1
16371-15010	2A..AL11	01/1979 - 08/1980	1
Common parts
91511-40835
91511-60616
91651-60610
92122-60614
Linked diagrams
1603
