AL11L-ZDMRSW (1979)
Toyota Tercel
Production
Jan 1979
-
Apr 1982
Engine
2A
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7901- )

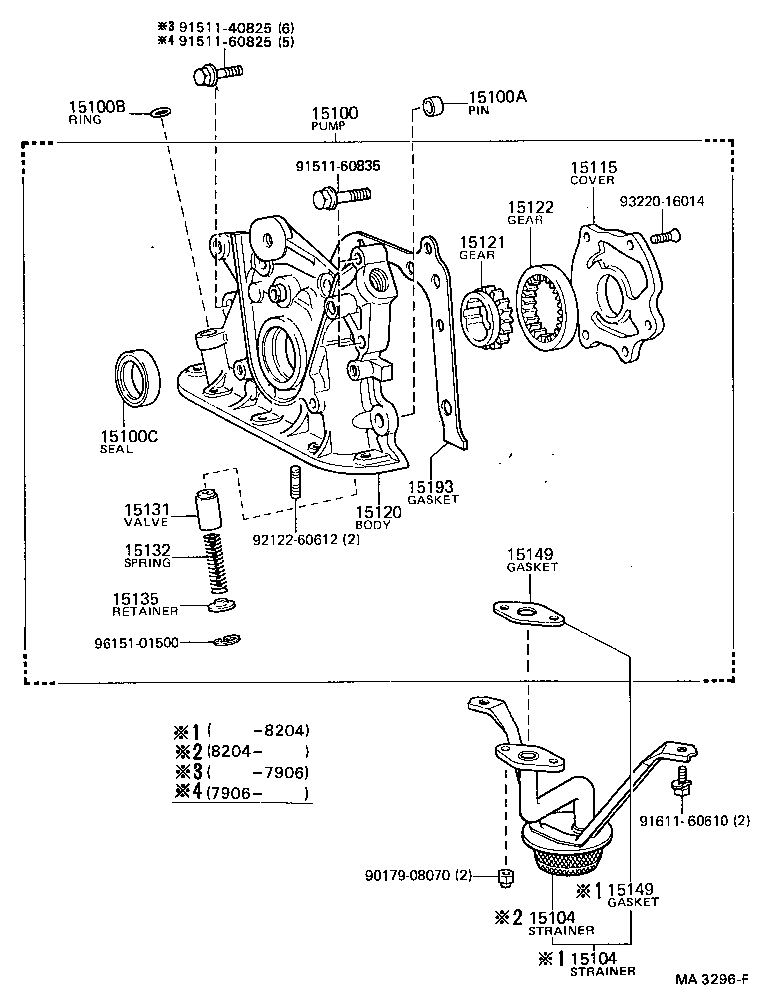

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15100 - PUMP ASSY, OIL | ||||
| 15100-19015 |
2A..AL11 |
1 | ||
| 15100A - PIN, RING(FOR OIL PUMP SET) | ||||
| 90253-11021 |
2A..AL11 |
2 | ||
| 15100B - RING, O(FOR OIL PUMP) | ||||
| 96710-01010 |
2A..AL11 |
1 | ||
| 96711-19010 |
2A..AL11 |
1 | ||
| 15100C - SEAL(FOR OIL PUMP) | ||||
| 90311-32001 |
2A..AL11 |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-15060 |
2A..AL11 |
1 | ||
| 15104-19015 |
2A..AL11 |
1 | ||
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-15060 |
2A..AL11 |
1 | ||
| 15104-19015 |
2A..AL11 |
1 | ||
| 15115 - COVER, OIL PUMP | ||||
| 15115-15010 |
2A..AL11 |
1 | ||
| 15120 - BODY SUB-ASSY, OIL PUMP | ||||
| 15120-15010 |
2A..AL11 |
1 | ||
| 15120-15011 |
2A..AL11 |
1 | ||
| 15121 - GEAR, OIL PUMP DRIVE | ||||
| 15121-15010 |
2A..AL11 |
1 | ||
| 15122 - GEAR, OIL PUMP DRIVEN | ||||
| 15122-15010 |
2A..AL11 |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-24010 |
2A..AL11 |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-40010 |
2A..AL11 |
1 | ||
| 15135 - RETAINER, OIL PUMP RELIEF VALVE | ||||
| 15135-15010 |
2A..AL11 |
1 | ||
| 15149 - GASKET, OIL STRAINER FLANGE | ||||
| 15149-15010 |
2A..AL11 |
1 | ||
| 15149 - GASKET, OIL STRAINER FLANGE | ||||
| 15149-15010 |
2A..AL11 |
1 | ||
| 15193 - GASKET, OIL PUMP | ||||
| 15197-15010 |
2A..AL11 |
1 | ||
| 15197-15011 |
2A..AL11 |
1 | ||
| Common parts | ||||
| 90179-08070 | ||||
| 91511-40825 | ||||
| 91511-60825 | ||||
| 91511-60835 | ||||
| 91611-60610 | ||||
| 92122-60612 | ||||
| 93220-16014 | ||||
| 96151-01500 | ||||
