AL11L-ZDMRSW (1979)
Toyota Tercel
(7901- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-15010 |
2A..AL11 STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-15011 |
2A..AL11 U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1501001 |
2A..AL11 MARK"1",MARK 1 |
5 | ||
| 11701-1501103 |
2A..AL11 MARK"3",MARK 3 |
5 | ||
| 11701-1501003 |
2A..AL11 MARK"3",MARK 3 |
5 | ||
| 11701-1501002 |
2A..AL11 MARK"2",MARK 2 |
5 | ||
| 11701-1501102 |
2A..AL11 MARK"2",MARK 2 |
5 | ||
| 11701-1501101 |
2A..AL11 MARK"1",MARK 1 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1501001 |
2A..AL11 MARK"1",MARK 1 |
5 | ||
| 11701-1501103 |
2A..AL11 MARK"3",MARK 3 |
5 | ||
| 11701-1501003 |
2A..AL11 MARK"3",MARK 3 |
5 | ||
| 11701-1501002 |
2A..AL11 MARK"2",MARK 2 |
5 | ||
| 11701-1501102 |
2A..AL11 MARK"2",MARK 2 |
5 | ||
| 11701-1501101 |
2A..AL11 MARK"1",MARK 1 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1501001 |
2A..AL11 MARK"1",MARK 1 |
5 | ||
| 11701-1501103 |
2A..AL11 MARK"3",MARK 3 |
5 | ||
| 11701-1501003 |
2A..AL11 MARK"3",MARK 3 |
5 | ||
| 11701-1501002 |
2A..AL11 MARK"2",MARK 2 |
5 | ||
| 11701-1501102 |
2A..AL11 MARK"2",MARK 2 |
5 | ||
| 11701-1501101 |
2A..AL11 MARK"1",MARK 1 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1501001 |
2A..AL11 MARK"1",MARK 1 |
5 | ||
| 11701-1501103 |
2A..AL11 MARK"3",MARK 3 |
5 | ||
| 11701-1501003 |
2A..AL11 MARK"3",MARK 3 |
5 | ||
| 11701-1501002 |
2A..AL11 MARK"2",MARK 2 |
5 | ||
| 11701-1501102 |
2A..AL11 MARK"2",MARK 2 |
5 | ||
| 11701-1501101 |
2A..AL11 MARK"1",MARK 1 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-1501001 |
2A..AL11 MARK"1",MARK 1 |
5 | ||
| 11701-1501103 |
2A..AL11 MARK"3",MARK 3 |
5 | ||
| 11701-1501003 |
2A..AL11 MARK"3",MARK 3 |
5 | ||
| 11701-1501002 |
2A..AL11 MARK"2",MARK 2 |
5 | ||
| 11701-1501102 |
2A..AL11 MARK"2",MARK 2 |
5 | ||
| 11701-1501101 |
2A..AL11 MARK"1",MARK 1 |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-14020 |
2A..AL11 STD |
1 | ||
| 13013-14020 |
2A..AL11 O/S 0.50,O/S 0.50 |
1 | ||
| 13015-14020 |
2A..AL11 O/S 1.00,O/S 1.00 |
1 | ||
| 13014-14020 |
2A..AL11 O/S 0.75,O/S 0.75 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1501001 |
2A..AL11 MARK"1",MARK 1 |
4 | ||
| 13041-1501103 |
2A..AL11 MARK"3",MARK 3 |
4 | ||
| 13041-1501003 |
2A..AL11 MARK"3",MARK 3 |
4 | ||
| 13041-1501101 |
2A..AL11 MARK"1",MARK 1 |
4 | ||
| 13041-1501102 |
2A..AL11 MARK"2",MARK 2 |
4 | ||
| 13041-1501002 |
2A..AL11 MARK"2",MARK 2 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1501001 |
2A..AL11 MARK"1",MARK 1 |
4 | ||
| 13041-1501103 |
2A..AL11 MARK"3",MARK 3 |
4 | ||
| 13041-1501003 |
2A..AL11 MARK"3",MARK 3 |
4 | ||
| 13041-1501101 |
2A..AL11 MARK"1",MARK 1 |
4 | ||
| 13041-1501102 |
2A..AL11 MARK"2",MARK 2 |
4 | ||
| 13041-1501002 |
2A..AL11 MARK"2",MARK 2 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1501001 |
2A..AL11 MARK"1",MARK 1 |
4 | ||
| 13041-1501103 |
2A..AL11 MARK"3",MARK 3 |
4 | ||
| 13041-1501003 |
2A..AL11 MARK"3",MARK 3 |
4 | ||
| 13041-1501101 |
2A..AL11 MARK"1",MARK 1 |
4 | ||
| 13041-1501102 |
2A..AL11 MARK"2",MARK 2 |
4 | ||
| 13041-1501002 |
2A..AL11 MARK"2",MARK 2 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1501001 |
2A..AL11 MARK"1",MARK 1 |
4 | ||
| 13041-1501103 |
2A..AL11 MARK"3",MARK 3 |
4 | ||
| 13041-1501003 |
2A..AL11 MARK"3",MARK 3 |
4 | ||
| 13041-1501101 |
2A..AL11 MARK"1",MARK 1 |
4 | ||
| 13041-1501102 |
2A..AL11 MARK"2",MARK 2 |
4 | ||
| 13041-1501002 |
2A..AL11 MARK"2",MARK 2 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-1501001 |
2A..AL11 MARK"1",MARK 1 |
4 | ||
| 13041-1501103 |
2A..AL11 MARK"3",MARK 3 |
4 | ||
| 13041-1501003 |
2A..AL11 MARK"3",MARK 3 |
4 | ||
| 13041-1501101 |
2A..AL11 MARK"1",MARK 1 |
4 | ||
| 13041-1501102 |
2A..AL11 MARK"2",MARK 2 |
4 | ||
| 13041-1501002 |
2A..AL11 MARK"2",MARK 2 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-14010 |
2A..AL11 STD |
4 | ||
| 13105-14010 |
2A..AL11 O/S 1.00 |
4 | ||
| 13103-14010 |
2A..AL11 O/S 0.50 |
4 | ||
| 13104-14010 |
2A..AL11 O/S 0.75 |
4 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-15010 |
2A..AL11 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-15011 |
2A..AL11 U/S 0.25,U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-19015 |
2A..AL11 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90179-08014 |
2A..AL11 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-19055 |
2A..AL11..MTM |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08120 |
2A..AL11..MTM L=18,OD=8,L=18,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-10042 |
2A..AL11..MTM |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-14010 |
2A..AL11 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-15010 |
2A..AL11..MTM N=96 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13471-15010 |
2A..AL11 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-12012 |
2A..AL11 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
2A..AL11 |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-15010 |
2A..AL11 N=18 |
1 | ||
| 13566A - GUIDE, TIMING BELT | ||||
| 13566-15010 |
2A..AL11 |
1 | ||
| Common parts | ||||
| 91611-60812 | ||||

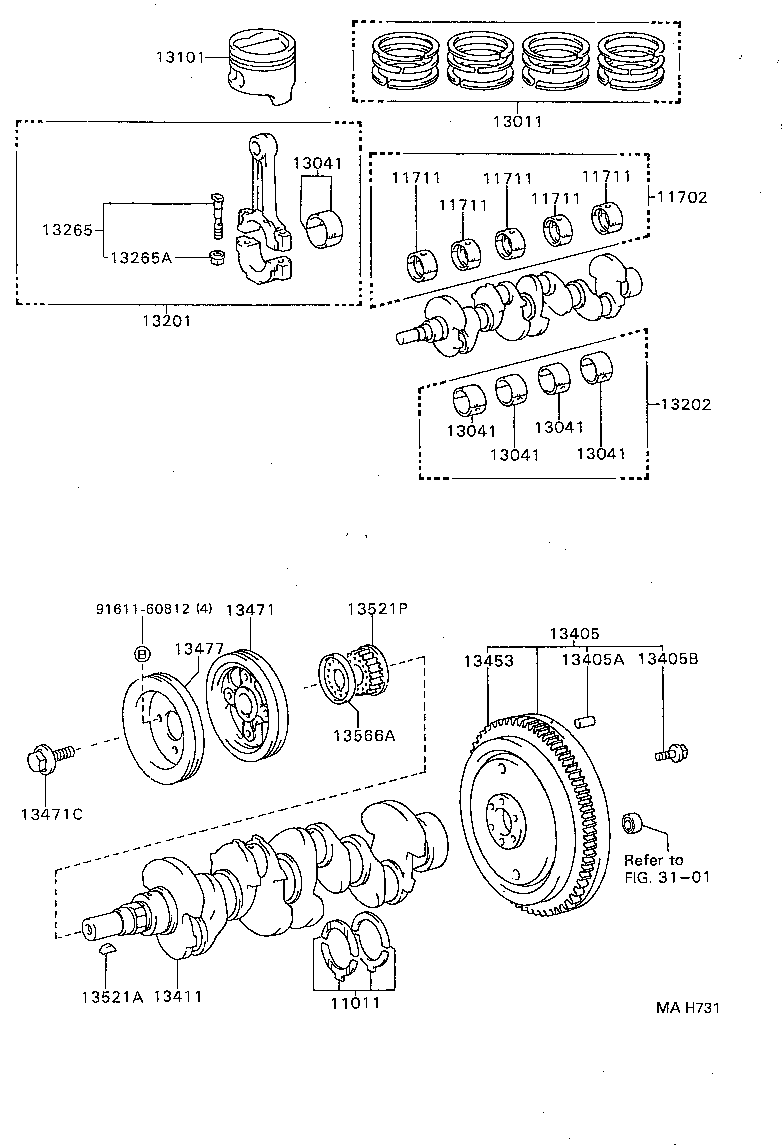

| Linked diagrams | ||||
| 3101 | ||||
