AL11L-ZDMRSW (1979)

Toyota Tercel

Production Jan 1979 - Apr 1982
Engine 2A
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7901- )

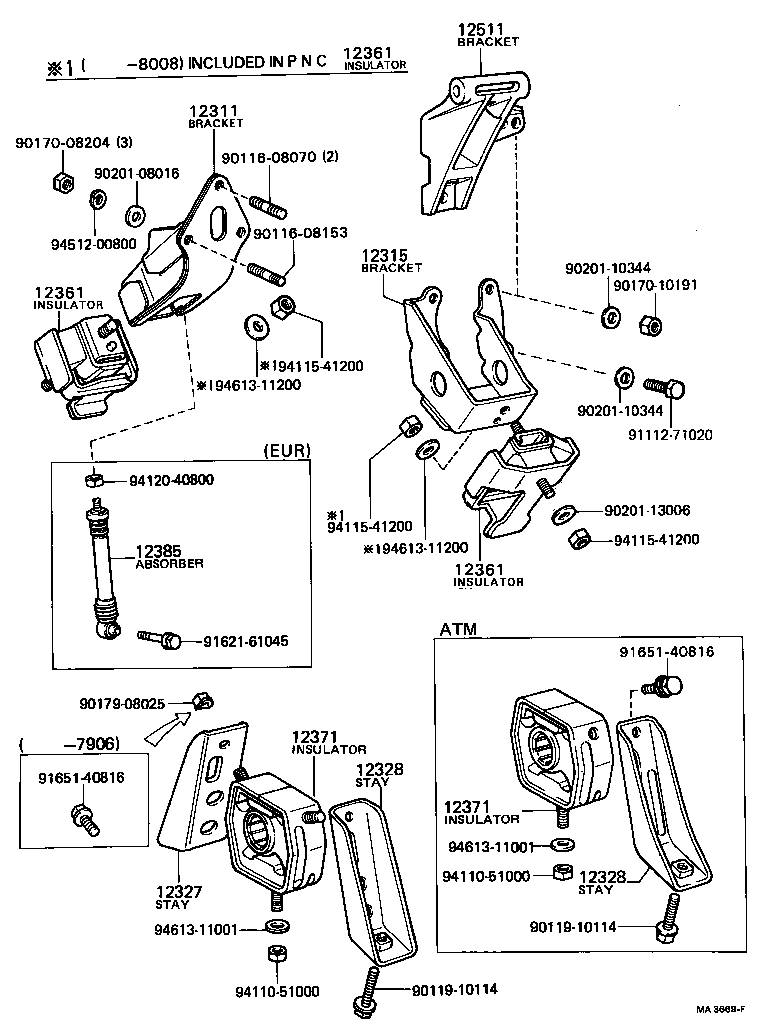

Click highlighted areas on diagram

diagram 12311 12315 12327 12328 12328 12361 12361 12361 12371 12371 12385 12511 9011608070 9011608153 9011910114 9011910114 9017008204 9017010191 9017908025 9020108016 9020110344 9020110344 9020113006 9111271020 9162161045 9165140816 9165140816 9411051000 9411051000 9411541200 9411541200 9411541200 9412040800 9451200800 9461311001 9461311001 9461311200 9461311200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-15011

2A..AL11

 1
12311-15010

2A..AL11

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-15010

2A..AL11

 1
12327 - STAY, ENGINE MOUNTING, REAR RH
12327-15010

2A..AL11..MTM

 1
12328 - STAY, ENGINE MOUNTING, REAR LH
12328-15010

2A..AL11..MTM

 1
12328 - STAY, ENGINE MOUNTING, REAR LH
12328-15010

2A..AL11..MTM

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-15011

2A..AL11

 2
12361-19045

2A..AL11

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-15011

2A..AL11

 2
12361-19045

2A..AL11

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-15011

2A..AL11

 2
12361-19045

2A..AL11

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-15022

2A..AL11..MTM

 1
12371-15011

2A..AL11

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-15022

2A..AL11..MTM

 1
12371-15011

2A..AL11

 1
12385 - ABSORBER, ENGINE MOUNTING, NO.1
12385-15030

2A..AL11..EUR

 1
12385-15010

2A..AL11..EUR

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-15011

2A..AL11

12V 40A & 50A ALTERNATOR

 1
12511-14011

2A..AL11..STD..EUR

12V 30A ALTERNATOR

 1
12511-15011

2A..AL11

 1
Common parts
90116-08070
90116-08153
90119-10114
90170-08204
90170-10191
90179-08025
90201-08016
90201-10344
90201-13006
91112-71020
91621-61045
91651-40816
94110-51000
94115-41200
94120-40800
94512-00800
94613-11001
94613-11200
