AL11L-ZDMDSW (1979)
Toyota Tercel
Production
Jan 1979
-
Apr 1982
Engine
2A
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7901- )

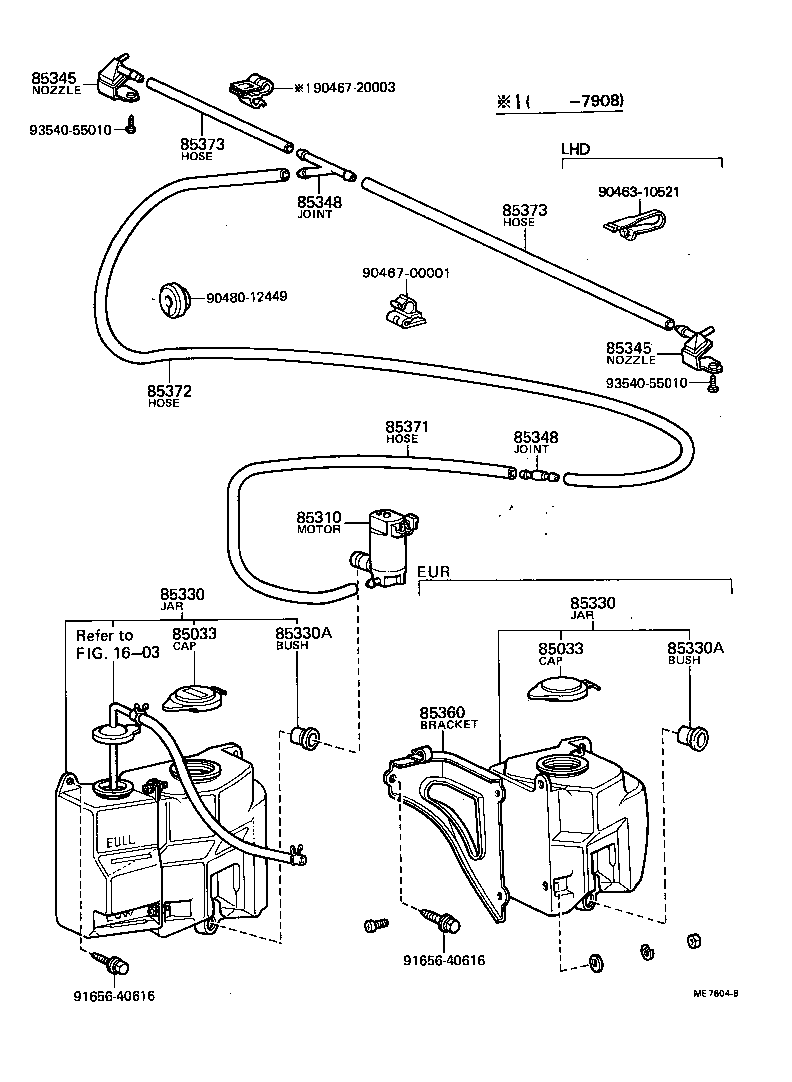

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85332-16010 |
AL11 |
1 | ||
| 85332-20060 |
AL11..EUR COLD SPEC |
1 | ||
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85332-16010 |
AL11 |
1 | ||
| 85332-20060 |
AL11..EUR COLD SPEC |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-20100 |
AL11 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85330-16030 |
AL11..EUR |
1 | ||
| 85330-16090 |
AL11..EUR COLD SPEC |
1 | ||
| 85330-16080 |
AL11..EUR |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85330-16030 |
AL11..EUR |
1 | ||
| 85330-16090 |
AL11..EUR COLD SPEC |
1 | ||
| 85330-16080 |
AL11..EUR |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
AL11 |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
AL11 |
1 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85346-16010 |
AL11 LH |
1 | ||
| 85345-16010 |
AL11 RH |
1 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85346-16010 |
AL11 LH |
1 | ||
| 85345-16010 |
AL11 RH |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-87201 |
AL11 2 WAY |
1 | ||
| 85355-14010 |
AL11 3 WAY |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-87201 |
AL11 2 WAY |
1 | ||
| 85355-14010 |
AL11 3 WAY |
1 | ||
| 85360 - BRACKET ASSY, WINDSHIELD WASHER | ||||
| 85361-16020 |
AL11..EUR |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90446-06286 |
AL11 *H,L=400 |
1 | ||
| 90446-06013 |
AL11 *H,L=400 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90446-06013 |
AL11 *H,L=900 |
1 | ||
| 90099-33315 |
AL11 *H,L=900 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33248 |
AL11 *H,L=80 |
1 | ||
| 90446-06286 |
AL11 *H,L=400 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33248 |
AL11 *H,L=80 |
1 | ||
| 90446-06286 |
AL11 *H,L=400 |
1 | ||
| Common parts | ||||
| 90463-10521 | ||||
| 90467-00001 | ||||
| 90467-20003 | ||||
| 90480-12449 | ||||
| 91656-40616 | ||||
| 93540-55010 | ||||
| Linked diagrams | ||||
| 1603 | ||||
