AL11L-ZDMDSW (1979)
Toyota Tercel
Production
Jan 1979
-
Apr 1982
Engine
2A
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7901- )

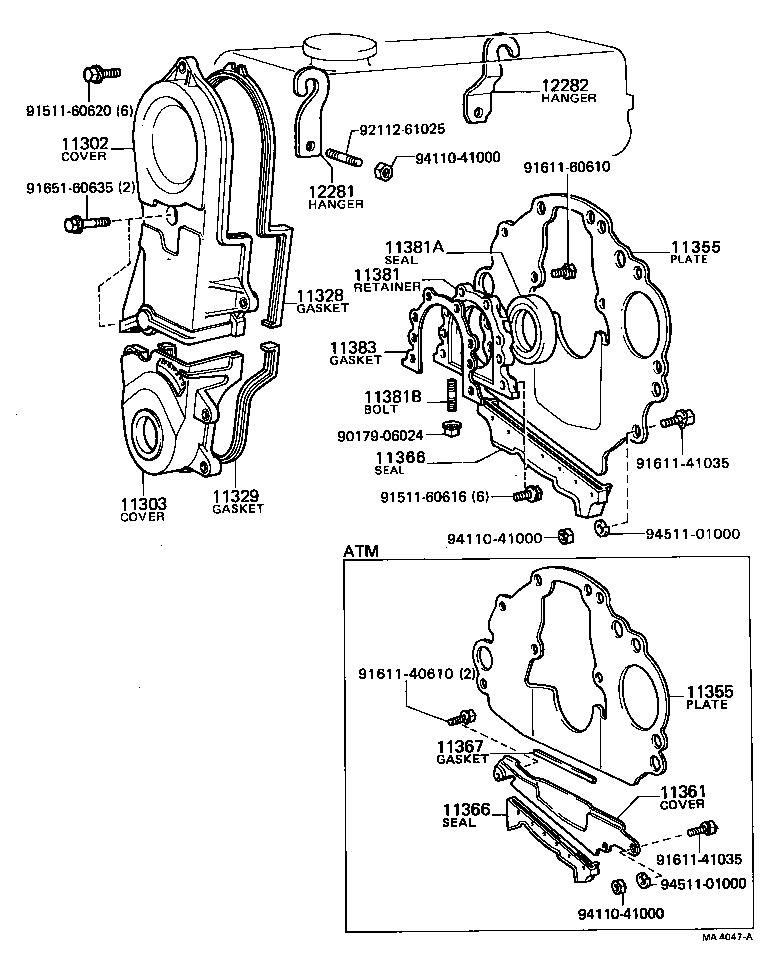

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11302-15010 |
2A..AL11 |
1 | ||
| 11303 - COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY | ||||
| 11303-15010 |
2A..AL11 |
1 | ||
| 11303-15020 |
2A..AL11 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-15010 |
2A..AL11 |
1 | ||
| 11329 - GASKET, TIMING GEAR REAR COVER | ||||
| 11329-15010 |
2A..AL11 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-15010 |
2A..AL11..MTM |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-15010 |
2A..AL11..MTM |
1 | ||
| 11366 - SEAL, FLYWHEEL HOUSING UNDER COVER DUST | ||||
| 11366-15010 |
2A..AL11..MTM |
1 | ||
| 11366 - SEAL, FLYWHEEL HOUSING UNDER COVER DUST | ||||
| 11366-15010 |
2A..AL11..MTM |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-15010 |
2A..AL11 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-70001 |
2A..AL11 HTC 70 92 12 |
1 | ||
| 90311-70004 |
2A..AL11 |
1 | ||
| 11381B - BOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER) | ||||
| 92122-60612 |
2A..AL11 L=21,S=9&9 |
2 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-15010 |
2A..AL11 |
1 | ||
| 12281 - HANGER, ENGINE, NO.1 | ||||
| 12281-15010 |
2A..AL11 |
1 | ||
| 12282 - HANGER, ENGINE, NO.2 | ||||
| 12282-15010 |
2A..AL11 |
1 | ||
| Common parts | ||||
| 90179-06024 | ||||
| 91511-60616 | ||||
| 91511-60620 | ||||
| 91611-40610 | ||||
| 91611-41035 | ||||
| 91611-60610 | ||||
| 91651-60635 | ||||
| 92112-61025 | ||||
| 94110-41000 | ||||
| 94511-01000 | ||||
