AL11L-ZDMDSW (1979)
Toyota Tercel
Production
Jan 1979
-
Apr 1982
Engine
2A
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7901- )

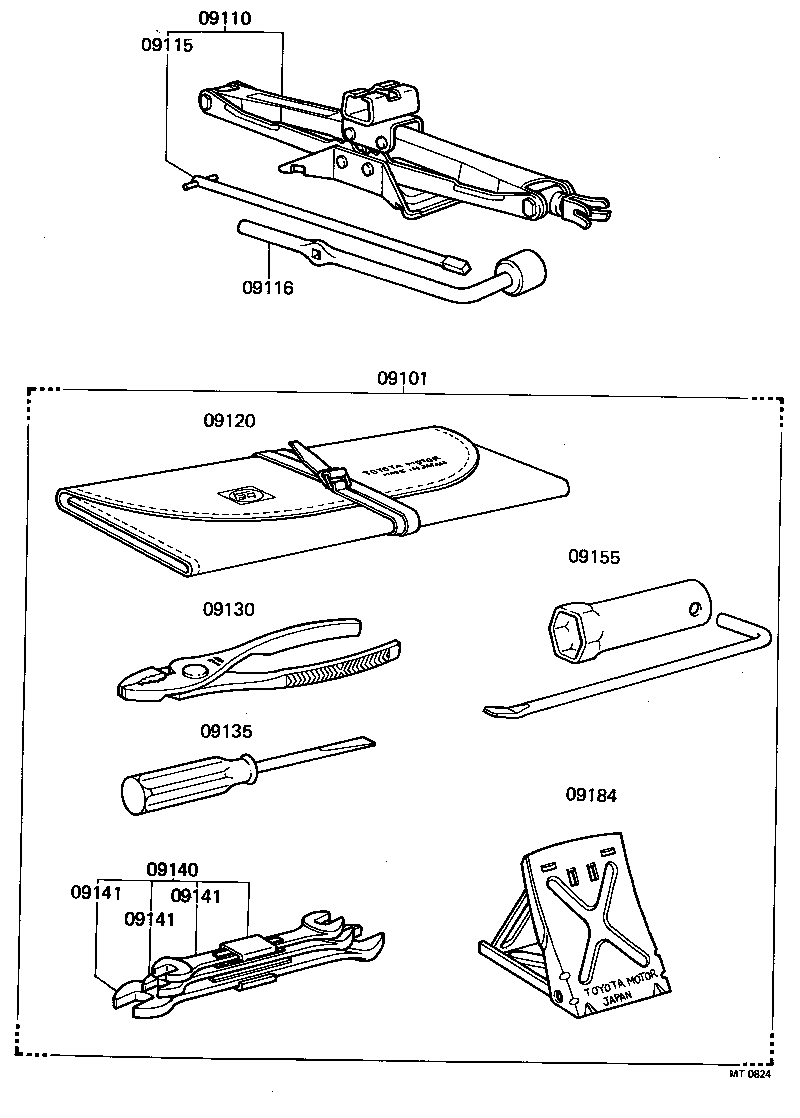

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 09101 - TOOL SET, STANDARD W/O JACK | ||||
| 09102-16020 |
AL11 |
1 | ||
| 09110 - JACK ASSY | ||||
| 09118-16010 |
AL11 |
1 | ||
| 09115 - ROD SUB-ASSY, JACK HANDLE | ||||
| 09115-16010 |
AL11 |
1 | ||
| 09116 - LEVER, JACK HANDLE | ||||
| 09116-16010 |
AL11 |
1 | ||
| 09120 - BAG, TOOL | ||||
| 09120-12011 |
AL11 |
1 | ||
| 09130 - PLIERS | ||||
| 09130-00010 |
AL11 |
1 | ||
| 09135 - DRIVER, SCREW | ||||
| 09135-00010 |
AL11 |
1 | ||
| 09140 - SPANNER SET | ||||
| 09140-12011 |
AL11 |
1 | ||
| 09141 - SPANNER | ||||
| 09141-00032 |
AL11 10X12 |
1 | ||
| 09141-12011 |
AL11 8X10 |
1 | ||
| 09141-12020 |
AL11 14X17 |
1 | ||
| 09141 - SPANNER | ||||
| 09141-00032 |
AL11 10X12 |
1 | ||
| 09141-12011 |
AL11 8X10 |
1 | ||
| 09141-12020 |
AL11 14X17 |
1 | ||
| 09141 - SPANNER | ||||
| 09141-00032 |
AL11 10X12 |
1 | ||
| 09141-12011 |
AL11 8X10 |
1 | ||
| 09141-12020 |
AL11 14X17 |
1 | ||
| 09155 - WRENCH, SPARK PLUG | ||||
| 09155-24010 |
AL11 |
1 | ||
| 09184 - STOPPER, WHEEL | ||||
| 09184-00010 |
AL11 |
1 | ||
