MA70R-BLPVZQ (1988)

Toyota Supra

Production Aug 1988 - May 1993
Engine 7MGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )LB

Click highlighted areas on diagram

diagram 61825B 61825B 61826B 61826B 63102A 63105A 63111 63141H
Part # Description Qty Price
61825B - PLATE, NOISE CONTROL, NO.2
61825-14010

MA70

 2
61825B - PLATE, NOISE CONTROL, NO.2
61825-14010

MA70

 2
61826B - PLATE, NOISE CONTROL, NO.3
61826-14010

MA70

 2
61826B - PLATE, NOISE CONTROL, NO.3
61826-14010

MA70

 2
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-14100

MA70..LB

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-14050

MA70

 1
63111 - PANEL, ROOF
63111-14200

MA70..LB

 1
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63141-14080

MA70..LB

 1

(8808- )LB

Click highlighted areas on diagram

diagram 61825B 61825B 61826B 61826B 63102A 63105A 63111 63141H
Part # Description Qty Price
61825B - PLATE, NOISE CONTROL, NO.2
61825-14010

MA70

 2
61825B - PLATE, NOISE CONTROL, NO.2
61825-14010

MA70

 2
61826B - PLATE, NOISE CONTROL, NO.3
61826-14010

MA70

 2
61826B - PLATE, NOISE CONTROL, NO.3
61826-14010

MA70

 2
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-14100

MA70..LB

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-14050

MA70

 1
63111 - PANEL, ROOF
63111-14200

MA70..LB

 1
63141H - REINFORCEMENT, ROOF PANEL, CENTER
63141-14080

MA70..LB

 1

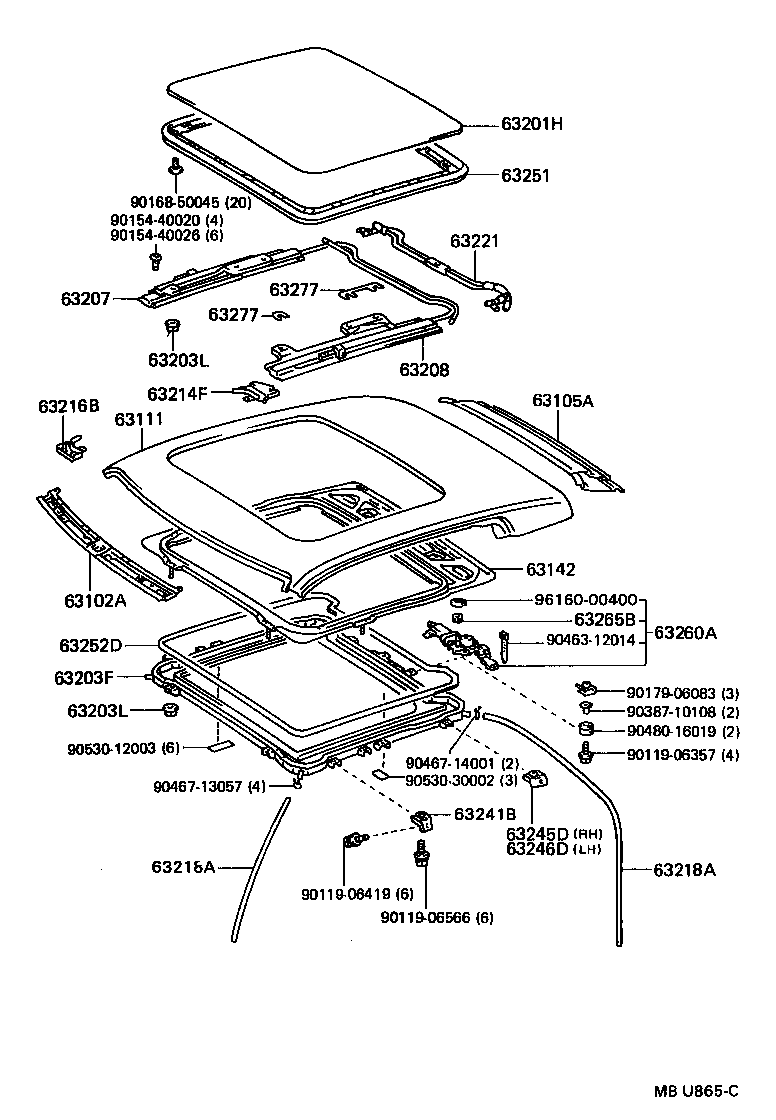

(9008- )LB

Click highlighted areas on diagram

W(SUN ROOF)

diagram 63102A 63105A 63111 63142 63201H 63203F 63203L 63203L 63207 63208 63214F 63216B 63218A 63218A 63221 63241B 63245D 63246D 63251 63252D 63260A 63265B 63277 63277 9011906357 9011906419 9011906566 9015440020 9015440026 9016850045 9017906083 9038710108 9046312014 9046713057 9046714001 9048016019 9053012003 9053030002 9616000400
Part # Description Qty Price
Common parts
90119-06357
90119-06419
90119-06566
90154-40020
90154-40026
90168-50045
90179-06083
90387-10108
90463-12014
90467-13057
90467-14001
90480-16019
90530-12003
90530-30002
96160-00400
