Toyota Supra MA70 REAR LICENSE PLATE LAMP

Manufacturers Home
Toyota
EU
SUPRA
MA70R-BLPVZC (1988)
8113 - REAR LICENSE PLATE LAMP

MA70R-BLPVZC (1988)

Toyota Supra

Production Aug 1988 - May 1993

Engine 7MGTE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(8808- )

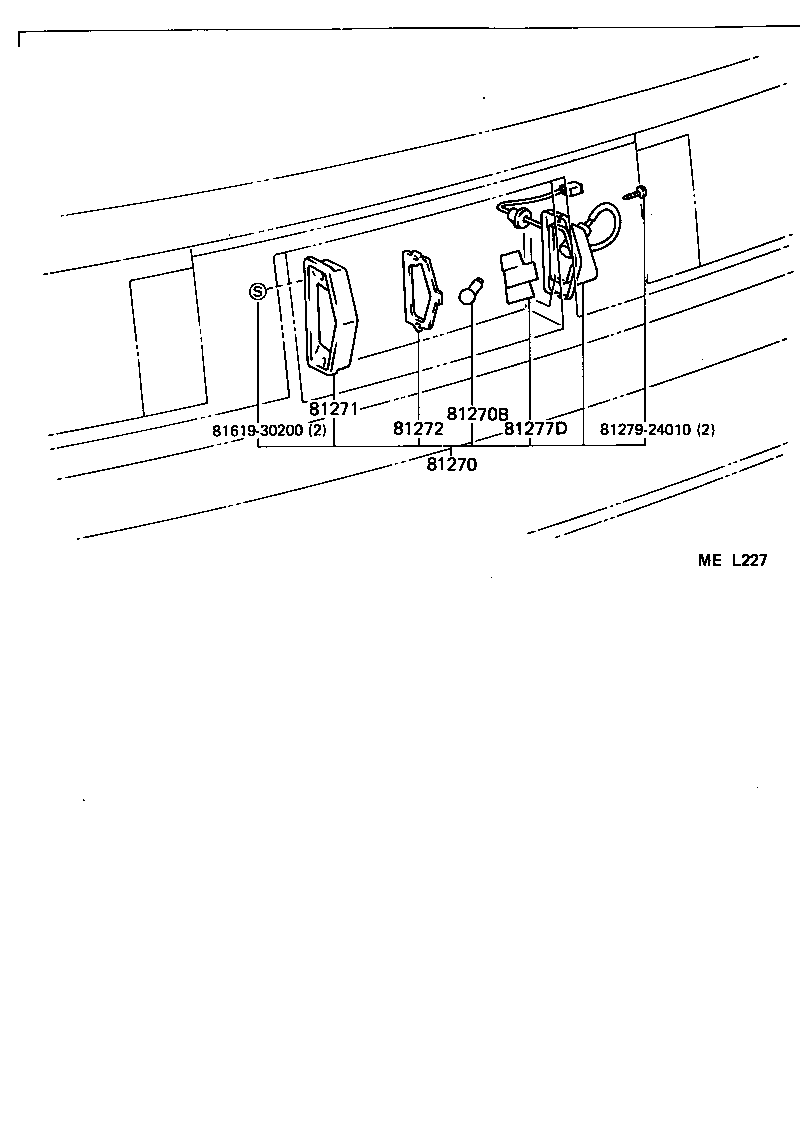

Click highlighted areas on diagram

LOWER LIGHTING

Part #	Description	Period	Qty
81270 - LAMP ASSY, LICENSE PLATE
81270-14240	MA70..ARL,V SIDE LIGHTING	08/1988 - 08/1990	2
81270-14230	MA70..C,EUR,GEN LOWER LIGHTING	08/1988 - 05/1993	1
81270-14240	MA70..V SIDE LIGHTING	08/1990 - 05/1993	2
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-12012	MA70..V 12V 7.5W	08/1990 - 05/1993	2
90981-12012	MA70..ARL,V 12V 7.5W	08/1988 - 08/1990	2
99132-12050	MA70..C,EUR,GEN 12V 5W,LOWER LIGHTING	08/1988 - 08/1990	2
99132-12050	MA70..ARL,C,GEN 12V 5W,LOWER LIGHTING	08/1990 - 05/1993	2
81271 - LENS, LICENSE PLATE LAMP
81271-14220	MA70..ARL,V SIDE LIGHTING	08/1988 - 08/1990	2
81271-14220	MA70..V SIDE LIGHTING	08/1990 - 05/1993	2
81271-14230	MA70..C,EUR,GEN LOWER LIGHTING	08/1988 - 05/1993	1
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-20210	MA70..ARL,V SIDE LIGHTING	08/1988 - 08/1990	2
81272-20210	MA70..V SIDE LIGHTING	08/1990 - 05/1993	2
81272-14230	MA70..C,EUR,GEN LOWER LIGHTING	08/1988 - 05/1993	2
Common parts
90075-22001
90164-50007
90189-06006
93510-14012

(8808- )

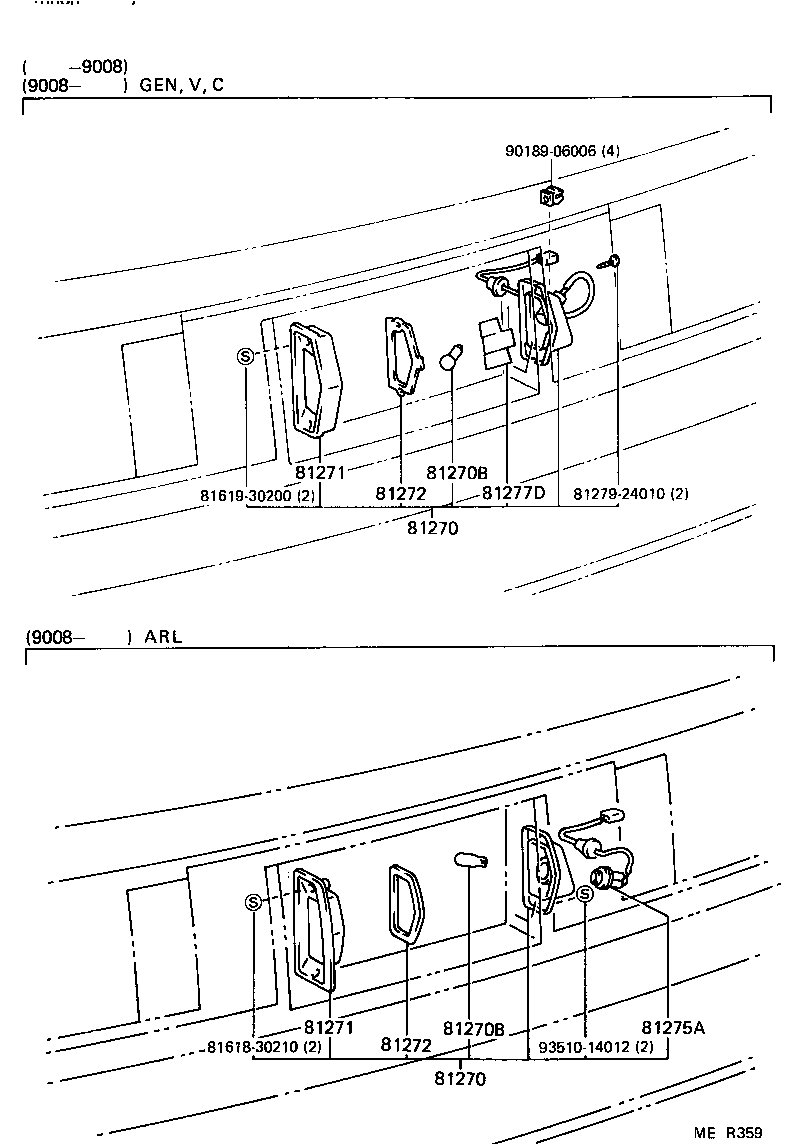

Click highlighted areas on diagram

SIDE LIGHTING

Part #	Description	Period	Qty
81270 - LAMP ASSY, LICENSE PLATE
81270-14240	MA70..ARL,V SIDE LIGHTING	08/1988 - 08/1990	2
81270-14230	MA70..C,EUR,GEN LOWER LIGHTING	08/1988 - 05/1993	1
81270-14240	MA70..V SIDE LIGHTING	08/1990 - 05/1993	2
81270 - LAMP ASSY, LICENSE PLATE
81270-14240	MA70..ARL,V SIDE LIGHTING	08/1988 - 08/1990	2
81270-14230	MA70..C,EUR,GEN LOWER LIGHTING	08/1988 - 05/1993	1
81270-14240	MA70..V SIDE LIGHTING	08/1990 - 05/1993	2
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-12012	MA70..V 12V 7.5W	08/1990 - 05/1993	2
90981-12012	MA70..ARL,V 12V 7.5W	08/1988 - 08/1990	2
99132-12050	MA70..C,EUR,GEN 12V 5W,LOWER LIGHTING	08/1988 - 08/1990	2
99132-12050	MA70..ARL,C,GEN 12V 5W,LOWER LIGHTING	08/1990 - 05/1993	2
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-12012	MA70..V 12V 7.5W	08/1990 - 05/1993	2
90981-12012	MA70..ARL,V 12V 7.5W	08/1988 - 08/1990	2
99132-12050	MA70..C,EUR,GEN 12V 5W,LOWER LIGHTING	08/1988 - 08/1990	2
99132-12050	MA70..ARL,C,GEN 12V 5W,LOWER LIGHTING	08/1990 - 05/1993	2
81271 - LENS, LICENSE PLATE LAMP
81271-14220	MA70..ARL,V SIDE LIGHTING	08/1988 - 08/1990	2
81271-14220	MA70..V SIDE LIGHTING	08/1990 - 05/1993	2
81271-14230	MA70..C,EUR,GEN LOWER LIGHTING	08/1988 - 05/1993	1
81271 - LENS, LICENSE PLATE LAMP
81271-14220	MA70..ARL,V SIDE LIGHTING	08/1988 - 08/1990	2
81271-14220	MA70..V SIDE LIGHTING	08/1990 - 05/1993	2
81271-14230	MA70..C,EUR,GEN LOWER LIGHTING	08/1988 - 05/1993	1
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-20210	MA70..ARL,V SIDE LIGHTING	08/1988 - 08/1990	2
81272-20210	MA70..V SIDE LIGHTING	08/1990 - 05/1993	2
81272-14230	MA70..C,EUR,GEN LOWER LIGHTING	08/1988 - 05/1993	2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-20210	MA70..ARL,V SIDE LIGHTING	08/1988 - 08/1990	2
81272-20210	MA70..V SIDE LIGHTING	08/1990 - 05/1993	2
81272-14230	MA70..C,EUR,GEN LOWER LIGHTING	08/1988 - 05/1993	2
81277D - REFLECTOR, LICENSE PLATE LAMP
81277-20210	MA70..LHD..TWT;MA70..ARL,GEN,V	08/1988 - 08/1990	2
81277-20210	MA70..GEN,V;MA70..LHD..C	08/1990 - 05/1993	2
Common parts
81279-24010
81618-30210
81619-30200
90189-06006
93510-14012

(8808- )

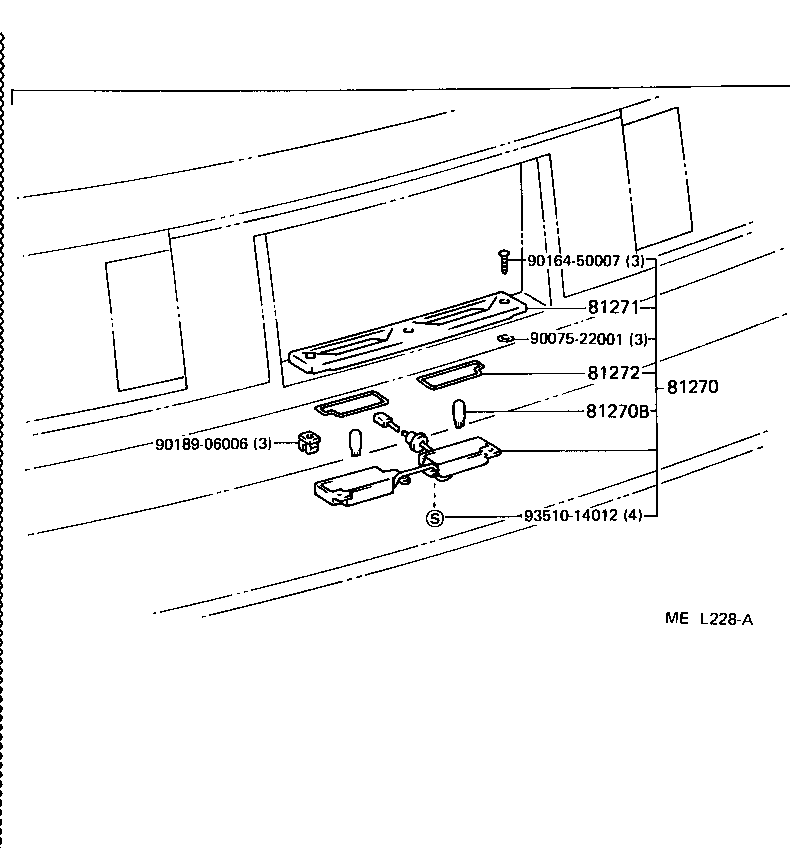

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
81279-24010
81619-30200

MA70R-BLPVZC (1988)

(8808- )

(8808- )

(8808- )

Part Price Details
