MA70R-BLPVFQ (1988)
Toyota Supra

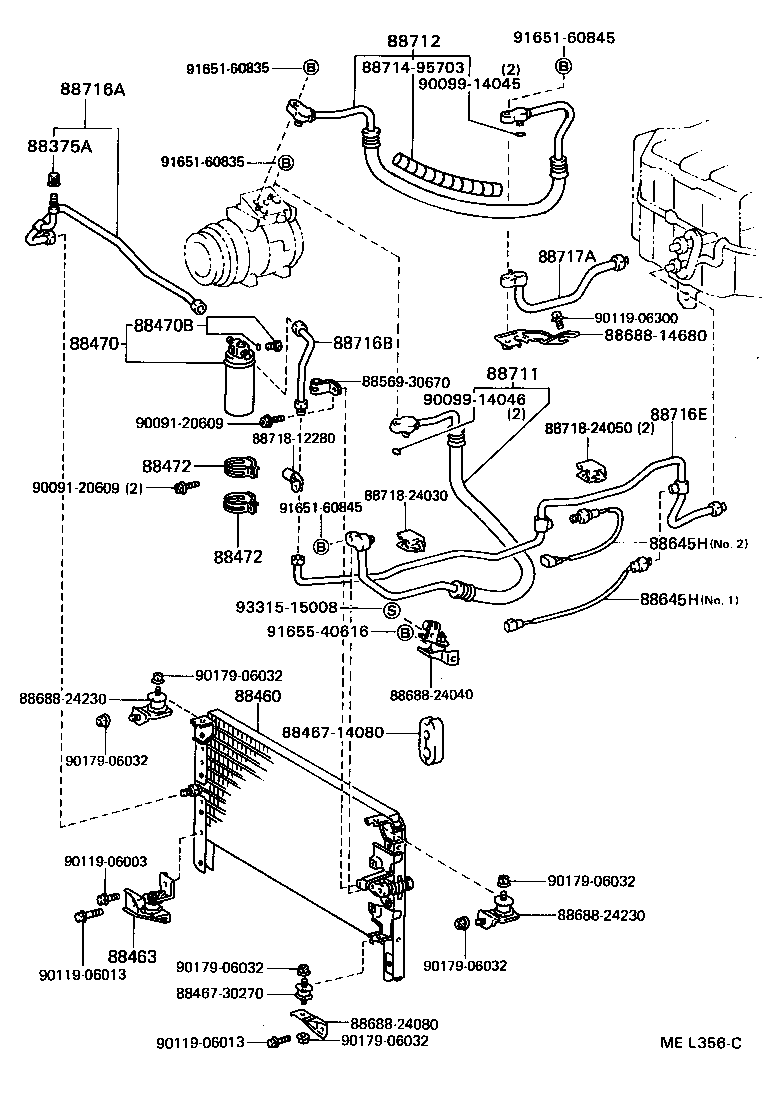

ILLUST NO. 1 OF 2(8808- )RHD..C,EUR,GEN
MAKER OPT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88375A - CAP, SERVICE VALVE (FOR COOLER PIPE) | ||||
| 88375-20010 |
MA70..RHD..TWC..(C,EUR,GEN) |
2 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-24051 |
MA70..TWT..ARL;MA70..RHD..TWC..(C,EUR) |
1 | ||
| 88460-24060 |
MA70..RHD..TWC..(ARL,GEN) |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-24050 |
MA70..C,EUR,GEN,V |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-95401 |
MA70 |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
MA70 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
MA70..RHD;MA70..LHD..TWT;MA70..LHD..(GEN,V) |
2 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
MA70..RHD;MA70..LHD..TWT;MA70..LHD..(GEN,V) |
2 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-24050 |
MA70..RHD NO.1 |
1 | ||
| 88645-10020 |
MA70 NO.2 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-24050 |
MA70..RHD NO.1 |
1 | ||
| 88645-10020 |
MA70 NO.2 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-14630 |
MA70..V |
1 | ||
| 88711-24070 |
MA70..ARL,C,EUR,GEN |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-1B100 |
MA70..ARL |
1 | ||
| 88712-1B080 |
MA70..RHD..(C,EUR) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-1B170 |
MA70..ARL |
1 | ||
| 88716-24151 |
MA70..RHD..TWC..(C,EUR) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-24160 |
MA70..RHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-1B180 |
MA70..ARL |
1 | ||
| 88716-24140 |
MA70..RHD..(C,EUR) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-14300 |
MA70..RHD..(C,EUR,GEN) |
1 | ||
| Common parts | ||||
| 88467-14080 | ||||
| 88467-30270 | ||||
| 88569-30670 | ||||
| 88688-14680 | ||||
| 88688-24040 | ||||
| 88688-24080 | ||||
| 88688-24230 | ||||
| 88714-95703 | ||||
| 88718-12280 | ||||
| 88718-24030 | ||||
| 88718-24050 | ||||
| 90091-20609 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90119-06003 | ||||
| 90119-06013 | ||||
| 90119-06300 | ||||
| 90179-06032 | ||||
| 91651-60835 | ||||
| 91651-60845 | ||||
| 91655-40616 | ||||
| 93315-15008 | ||||
ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-12040 |
MA70..ARL,GEN,V;MA70..5F..TWT..C;MA70..4FC..(C,EUR) NO.1 |
2 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-12040 |
MA70..ARL,GEN,V;MA70..5F..TWT..C;MA70..4FC..(C,EUR) NO.1 |
2 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-12040 |
MA70..ARL,GEN,V;MA70..5F..TWT..C;MA70..4FC..(C,EUR) NO.1 |
2 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-14030 |
MA70..5F..V;MA70..LHD..GEN;MA70..5F..TWT..C;MA70..4FC..(C,EUR,V) NO.2 |
1 | ||
| 88550-14060 |
MA70..TWC..ARL;MA70..4FC..TWT..ARL NO.2 |
1 | ||
| 88550-14040 |
MA70..LHD..GEN;MA70..5F..TWT..C;MA70..5F..TWC..(ARL,V);MA70..4FC..(ARL,C,EUR,V) NO.1 |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-14030 |
MA70..5F..V;MA70..LHD..GEN;MA70..5F..TWT..C;MA70..4FC..(C,EUR,V) NO.2 |
1 | ||
| 88550-14060 |
MA70..TWC..ARL;MA70..4FC..TWT..ARL NO.2 |
1 | ||
| 88550-14040 |
MA70..LHD..GEN;MA70..5F..TWT..C;MA70..5F..TWC..(ARL,V);MA70..4FC..(ARL,C,EUR,V) NO.1 |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-14030 |
MA70..5F..V;MA70..LHD..GEN;MA70..5F..TWT..C;MA70..4FC..(C,EUR,V) NO.2 |
1 | ||
| 88550-14060 |
MA70..TWC..ARL;MA70..4FC..TWT..ARL NO.2 |
1 | ||
| 88550-14040 |
MA70..LHD..GEN;MA70..5F..TWT..C;MA70..5F..TWC..(ARL,V);MA70..4FC..(ARL,C,EUR,V) NO.1 |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-24010 |
MA70..C,EUR,GEN,V |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88596-24010 |
MA70..C,EUR,GEN,V |
1 | ||
| Common parts | ||||
| 88688-14690 | ||||
| 88688-24120 | ||||
| 88899-14080 | ||||
| 91651-40612 | ||||
| 93315-15010 | ||||

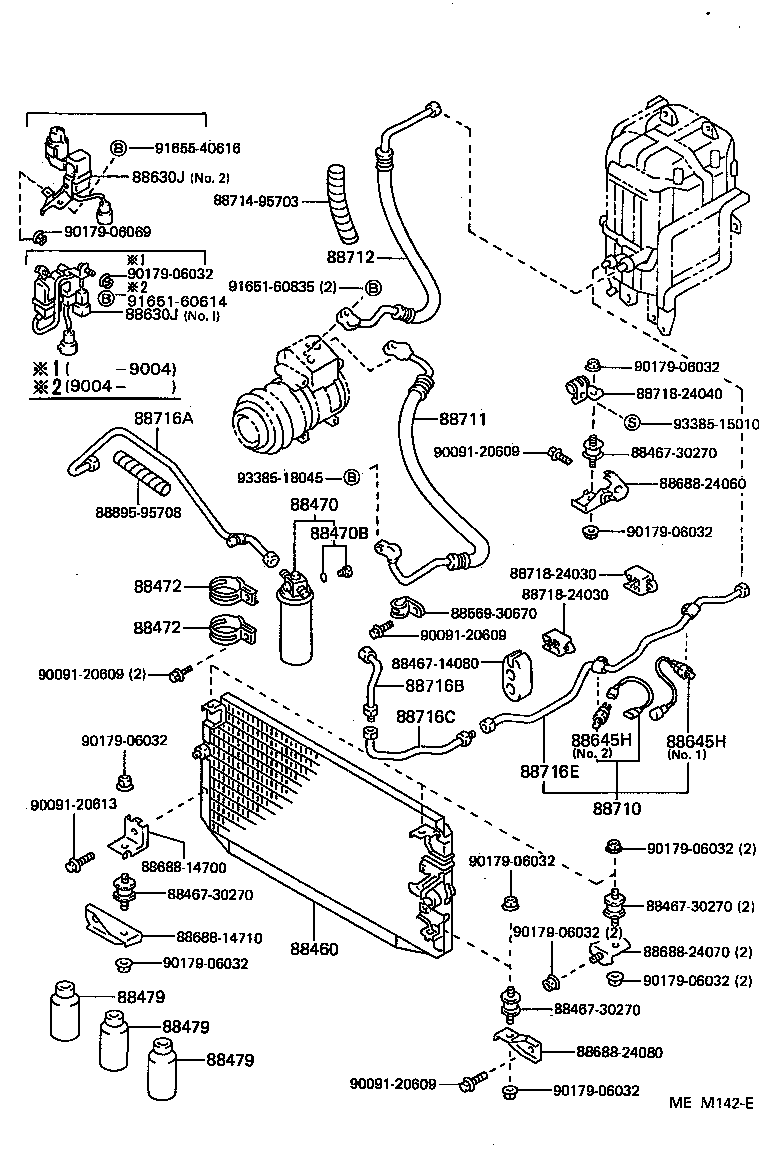

ILLUST NO. 1 OF 2(8808- )RHD..ARL,GEN
DEALER OPT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-24051 |
MA70..TWT..ARL;MA70..RHD..TWC..(C,EUR) |
1 | ||
| 88460-24060 |
MA70..RHD..TWC..(ARL,GEN) |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88471-95401 |
MA70 |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
MA70 |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
MA70..RHD;MA70..LHD..TWT;MA70..LHD..(GEN,V) |
2 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-22090 |
MA70..RHD;MA70..LHD..TWT;MA70..LHD..(GEN,V) |
2 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
MA70..RHD..(ARL,GEN) 250G |
3 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
MA70..RHD..(ARL,GEN) 250G |
3 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02004 |
MA70..RHD..(ARL,GEN) 250G |
3 | ||
| 88630J - RELAY ASSY (FOR CONDENSER MOTOR) | ||||
| 88630-24060 |
MA70..TWC;MA70..4FC..TWT;MA70..5F..TWT..C NO.1 |
1 | ||
| 88630J - RELAY ASSY (FOR CONDENSER MOTOR) | ||||
| 88630-24060 |
MA70..TWC;MA70..4FC..TWT;MA70..5F..TWT..C NO.1 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-24050 |
MA70..RHD NO.1 |
1 | ||
| 88645-10020 |
MA70 NO.2 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-24050 |
MA70..RHD NO.1 |
1 | ||
| 88645-10020 |
MA70 NO.2 |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88706-14070 |
MA70..RHD..(ARL,GEN) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-14630 |
MA70..V |
1 | ||
| 88711-24070 |
MA70..ARL,C,EUR,GEN |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-1B100 |
MA70..ARL |
1 | ||
| 88712-1B080 |
MA70..RHD..(C,EUR) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-1B170 |
MA70..ARL |
1 | ||
| 88716-24151 |
MA70..RHD..TWC..(C,EUR) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-24160 |
MA70..RHD |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-1B100 |
MA70..RHD..(ARL,GEN) |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-1B180 |
MA70..ARL |
1 | ||
| 88716-24140 |
MA70..RHD..(C,EUR) |
1 | ||
| Common parts | ||||
| 88467-14080 | ||||
| 88467-30270 | ||||
| 88569-30670 | ||||
| 88688-14700 | ||||
| 88688-14710 | ||||
| 88688-24060 | ||||
| 88688-24070 | ||||
| 88688-24080 | ||||
| 88714-95703 | ||||
| 88718-24030 | ||||
| 88718-24040 | ||||
| 88895-95708 | ||||
| 90091-20609 | ||||
| 90091-20613 | ||||
| 90179-06032 | ||||
| 90179-06069 | ||||
| 91651-60614 | ||||
| 91651-60835 | ||||
| 91655-40616 | ||||
| 93385-15010 | ||||
| 93385-18045 | ||||
ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-12040 |
MA70..ARL,GEN,V;MA70..5F..TWT..C;MA70..4FC..(C,EUR) NO.1 |
2 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-12040 |
MA70..ARL,GEN,V;MA70..5F..TWT..C;MA70..4FC..(C,EUR) NO.1 |
2 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-12040 |
MA70..ARL,GEN,V;MA70..5F..TWT..C;MA70..4FC..(C,EUR) NO.1 |
2 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-14030 |
MA70..5F..V;MA70..LHD..GEN;MA70..5F..TWT..C;MA70..4FC..(C,EUR,V) NO.2 |
1 | ||
| 88550-14060 |
MA70..TWC..ARL;MA70..4FC..TWT..ARL NO.2 |
1 | ||
| 88550-14040 |
MA70..LHD..GEN;MA70..5F..TWT..C;MA70..5F..TWC..(ARL,V);MA70..4FC..(ARL,C,EUR,V) NO.1 |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-14030 |
MA70..5F..V;MA70..LHD..GEN;MA70..5F..TWT..C;MA70..4FC..(C,EUR,V) NO.2 |
1 | ||
| 88550-14060 |
MA70..TWC..ARL;MA70..4FC..TWT..ARL NO.2 |
1 | ||
| 88550-14040 |
MA70..LHD..GEN;MA70..5F..TWT..C;MA70..5F..TWC..(ARL,V);MA70..4FC..(ARL,C,EUR,V) NO.1 |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-14030 |
MA70..5F..V;MA70..LHD..GEN;MA70..5F..TWT..C;MA70..4FC..(C,EUR,V) NO.2 |
1 | ||
| 88550-14060 |
MA70..TWC..ARL;MA70..4FC..TWT..ARL NO.2 |
1 | ||
| 88550-14040 |
MA70..LHD..GEN;MA70..5F..TWT..C;MA70..5F..TWC..(ARL,V);MA70..4FC..(ARL,C,EUR,V) NO.1 |
1 | ||
| Common parts | ||||
| 16702-42010 | ||||
| 88467-14070 | ||||
| 88467-20040 | ||||
| 88688-14690 | ||||
| 88688-24140 | ||||
| 90119-06078 | ||||
| 90179-06032 | ||||
| 91651-40612 | ||||
ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 51449-14010 | ||||
| 88467-14080 | ||||
| 88688-14671 | ||||
| 88688-24040 | ||||
| 88688-24230 | ||||
| 88688-24240 | ||||
| 88718-12280 | ||||
| 88718-14480 | ||||
| 88718-14670 | ||||
| 88718-14680 | ||||
| 88718-24050 | ||||
| 88718-32220 | ||||
| 90044-64009 | ||||
| 90091-20609 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90119-06003 | ||||
| 90119-06013 | ||||
| 90179-06032 | ||||
| 91651-60835 | ||||
| 91651-60845 | ||||
| 91651-60850 | ||||
| 91655-40616 | ||||
| 93315-14008 | ||||
| 93315-15008 | ||||
ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88688-14690 | ||||
| 88688-24140 | ||||
| 90119-06330 | ||||
| 90179-06061 | ||||
| 91651-40612 | ||||
